Multi-Hole Ceramic Inspection Block for Pharmaceutical Capsule Manufacturing
The Challenge
A capsule manufacturer needed to check 12 different outer diameters of 0# capsules on the production line. Their existing method: 12 separate ring gauges. Slow to use, bulky to manage, hard to track in a GMP cleanroom. They told us what they needed — we designed the solution.
What We Designed & Built
-

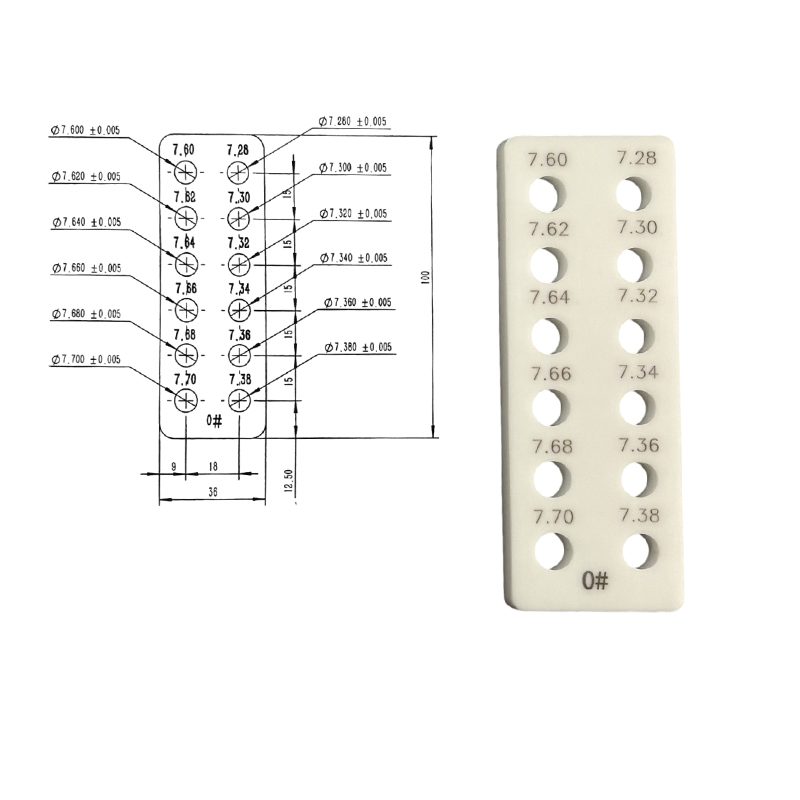

36mm × 100mm × 4mm industrial ceramic block
-
12 through-holes in 2 columns × 6 rows
-
Left column: 7.60, 7.62, 7.64, 7.66, 7.68, 7.70mm
-
Right column: 7.28, 7.30, 7.32, 7.34, 7.36, 7.38mm
-
±0.005mm (±5μm) tolerance on every hole
-
Laser-engraved size marking on each hole
Full Solution — From Requirement to Production
The customer came with a need, not a drawing. We handled everything:
-
Design — 2×6 hole array layout optimized for quick go/no-go inspection
-
Material — industrial ceramic: non-magnetic, corrosion-resistant, easy to clean and sterilize, meets GMP cleanroom requirements
-
Tolerance — ±0.005mm per hole, matched to the actual capsule OD tolerance spec
-
4mm thin profile — challenging to machine without warping, delivered flat
Precision Achieved
| Feature | Tolerance |
|---|---|
| Each hole diameter | ±0.005mm |
| Flatness | No deformation across 100mm length |
| Surface finish | Smooth, burr-free |
Applications
-
0# pharmaceutical capsule outer diameter inspection
-
Multi-size go/no-go production line QC
-
GMP cleanroom quality control
-
Any industry needing multi-size rapid OD inspection: connectors, tubing, bearings, wire
Why It Works
-
One block replaces 12 ring gauges — 10× faster inspection
-
Ceramic meets GMP standards — won’t corrode, easy to sanitize
-
Laser-engraved sizes — no confusion, audit-ready
-
Compact and lightweight — easy for operators to handle
Your Requirement, Our Solution
Don’t have a drawing? Just tell us what you need to inspect. We’ll design the gauge, recommend material and tolerances, and build it for you.
