What can we customize ?

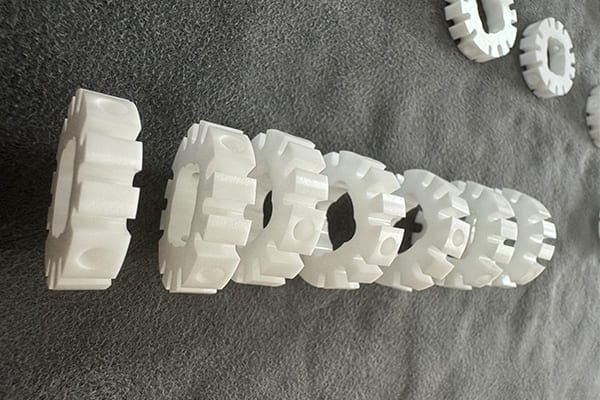

Custom Non-Standard & Special-Shaped Jigs, Inspection Fixtures, Measuring Tools & Gauges
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, HSS, Carbide ( Tungsten Steel )
Optional Precision: ±1μm/±2μm/±5μm
Custom Special Shapes per Drawings
Lead Time: 3-5 days standard, 6-15 days complex
NDAs offered for all custom products as requested.

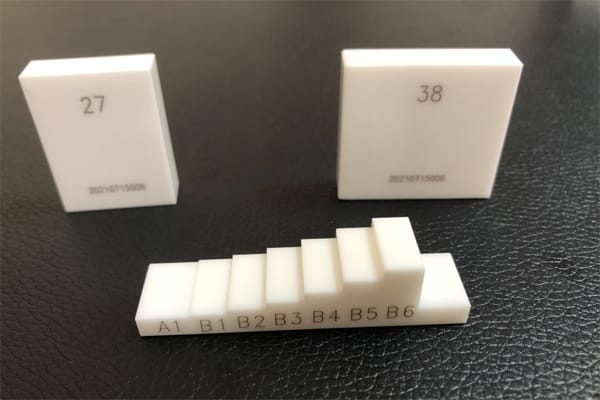

Custom Gauge Blocks
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, HSS, Carbide ( Tungsten Steel )
Optional Precision: ±0.5μm/±1μm/±2μm/±5μm/±10μm
Custom Special Shapes per Drawings
Custom gauge blocks in any size (e.g. 20.212mm)
Lead Time: 3-5 days standard, 6-12 days complex
Custom Pin Gauge
Custom Metric & Inch Pin Gage Sizes Available
Optional Materials: Gcr15, Carbide ( Tungsten Steel ), Industrial Ceramic Pin Gage
Optional Precision: ±0.25μm/±0.5μm/±1μm/±2μm/±5μm
Custom Special Shapes per Drawings
Custom Pin gauge in any size (e.g. 5.012mm)
Extended/shortened versions
Sets with any spacing
Lead Time: 2-4 days standard, 5-10 days complex

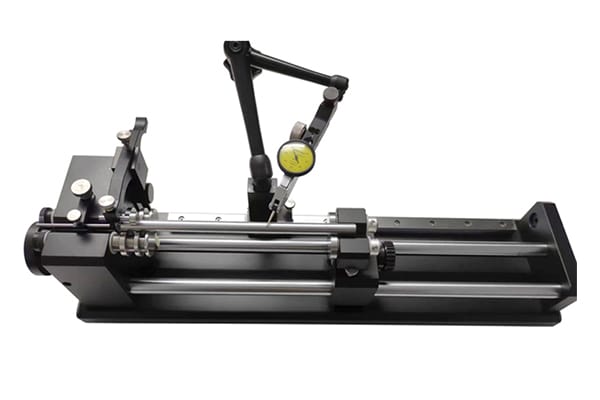

Custom Concentricity Gauge
Optional motor drive; universal 100–240V AC input, 12V DC 5.0A stable output, Two-speed adjustable motor, forward/reverse rotation supported
Custom accessories by workpiece diameter & length
Vertical & universal holders for lever indicators optional
Custom rollers available
Multiple lever indicator holders customizable
Custom Plain Plug Gauge
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, Gcr15, Carbide ( Tungsten Steel )
Optional Precision: ±0.25μm/±0.5μm/±1μm/±2μm/±5μm
Custom Special Shapes per Drawings

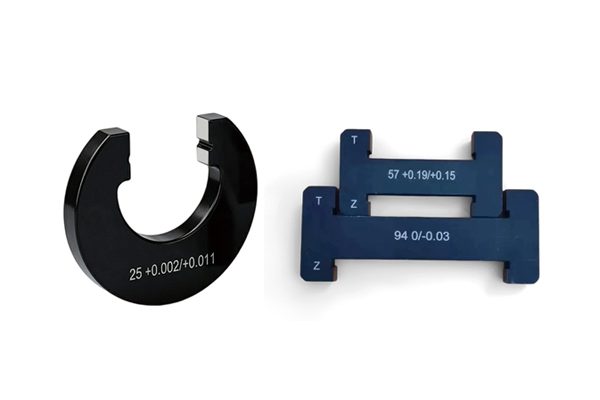

Upon provision of GO and NOGO dimension values, custom go-no-go gauges of
any specification are available.
Lead Time: 3-4 days standard, 5-10 days complex

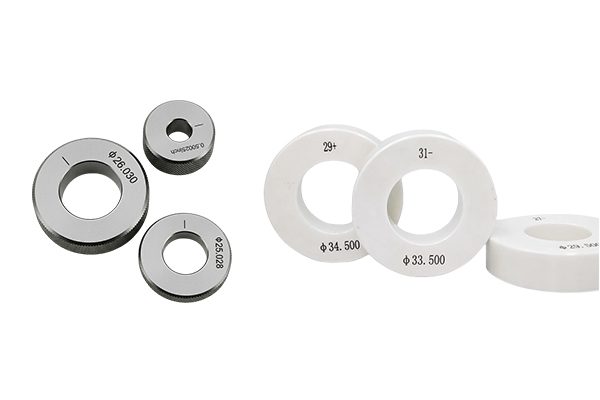

Custom Plain Ring Gauge
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, Gcr15, Carbide ( Tungsten Steel )
Optional Precision: ±0.5μm/±1μm/±2μm/±5μm
Custom Special Shapes per Drawings
Custom Plain Ring Gauge in any size (e.g. 10.015mm)
Lead Time: 3-4 days standard, 5-10 days complex

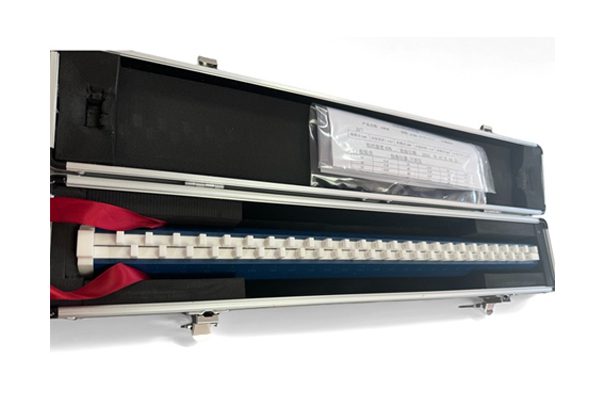

Custom Check Masters
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, HSS, Carbide ( Tungsten Steel )
Optional Precision: ±1μm/±2μm/±4μm/±8μm
Custom Special Shapes per Drawings
We can supply step gage with special length and increments.
Lead Time: 10-25 days standard, 25-45 days complex

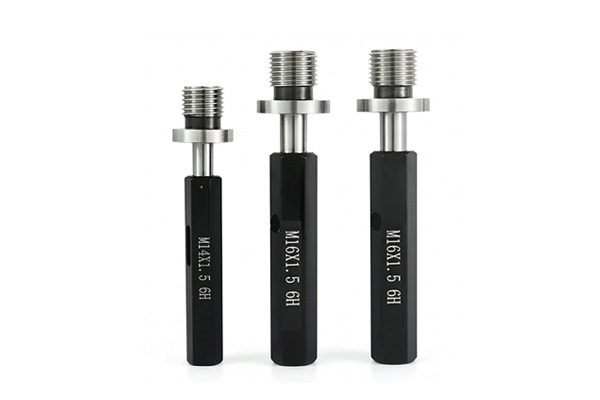

Custom Thread Perpendicularity Gauge
Custom options: Custom manufacturing for metric, American, British and other
full-series threads.
Custom Special Shapes per Drawings
Material: GCr15 bearing steel
Application: Checks perpendicularity, concentricity and depth of threaded holes
for position accuracy. Used with feeler gauges.
Lead Time: 7-10 days standard

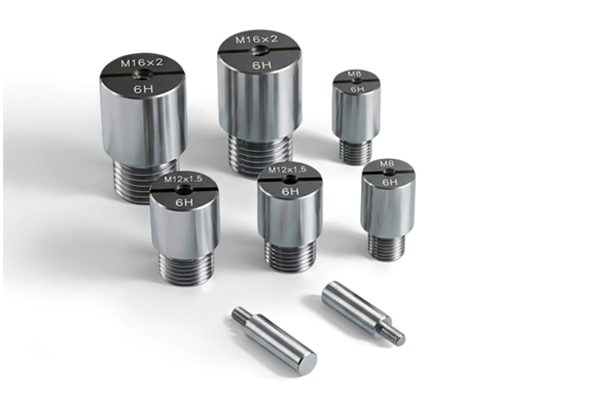

Custom Thread Location Pin Gauge
Custom options: Custom manufacturing for metric, American, British and other
full-series threads.
Custom Special Shapes per Drawings
Material: GCr15 bearing steel
Application: CMM thread locating pin, calibrates position and concentricity of
threaded holes to establish workpiece coordinate datum.
Lead Time: 7-10 days standard

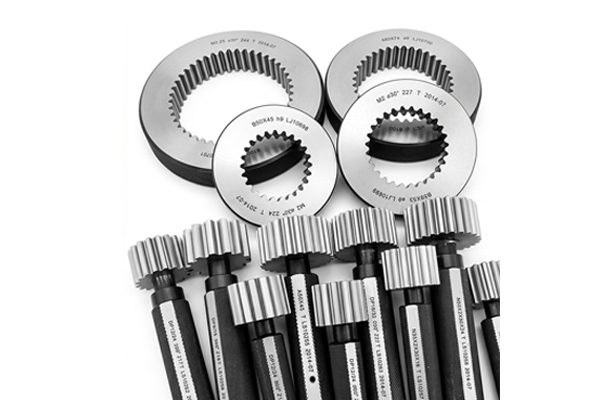

Custom Spline Plug/Ring Gauge
Usage: Spline go/no-go plug & ring gauges for internal and external spline inspection.
Types & Standards: Rectangular and involute splines, complying with
DIN5480, DIN5481, DIN5482, GB3478, JIS D2001, ANSI92.1/92.2, SAEJ498B, BS3550.
Non-standard gauges are available.
Customization: Tooth count, module, pressure angle and dimensions made to order.
Material: GCr15 steel, heat-treated, high wear resistance & stable precision.
Lead Time: 3-5 days standard, 6-12 days complex

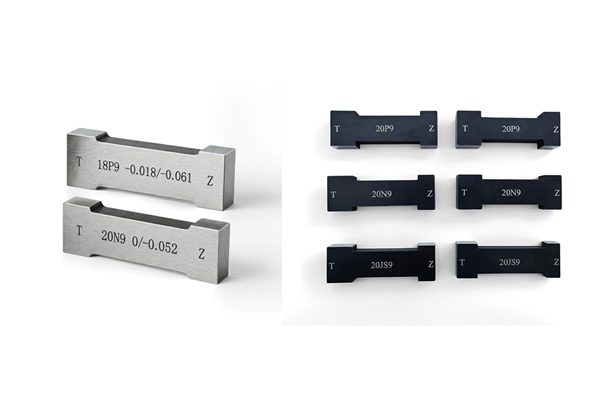

Custom Keyway Go-NoGo Gauge
Custom Metric & Inch Sizes Available
Optional Materials: Industrial Ceramic, HSS, Carbide ( Tungsten Steel )
Optional Precision: ±1μm/±2μm/±5μm
Custom Special Shapes per Drawings
Application: Keyway plug gauges for key slot width tolerance inspection.
Lead Time: 3-5 days standard, 6-15 days complex

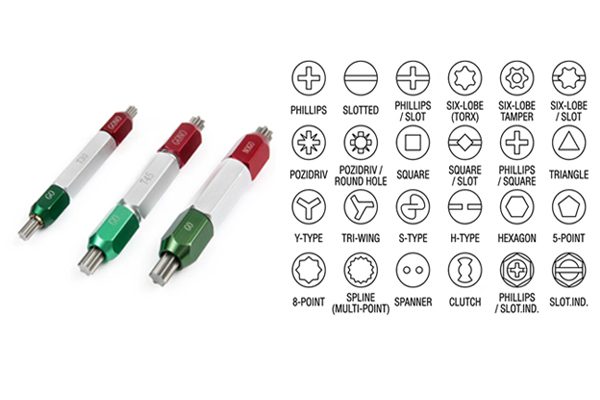

Custom Torx Go-NoGo Plug Gauge
Usage: Torx go/no-go plug gauges for internal torx slot dimension inspection.
Full sizes T4-T100 in stock.
Custom: Special anti-theft slots, depth and shoulder sizes available.
Custom Special Shapes per Drawings
Optional Materials: Gcr15, Carbide ( Tungsten Steel )
Lead Time: 3-5 days standard, 6-10 days complex

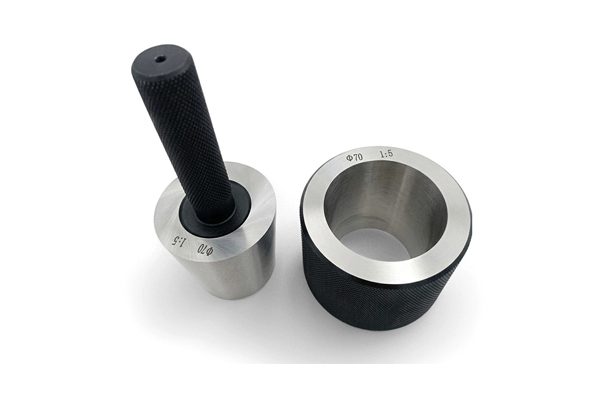

Custom Taper Plug/Ring Gauge
Usage: Taper plug gauges and ring gauges, inspect taper and fit dimension
of tapered holes and shafts.
Standard tapers: 1:5,1:6,1:8,1:10,1:20 and all Morse tapers.
Customization: Non-standard taper, diameter and shoulder size made per drawing.
Optional Materials: Gcr15, Carbide ( Tungsten Steel )
Lead Time: 3-5 days standard, 6-10 days complex
