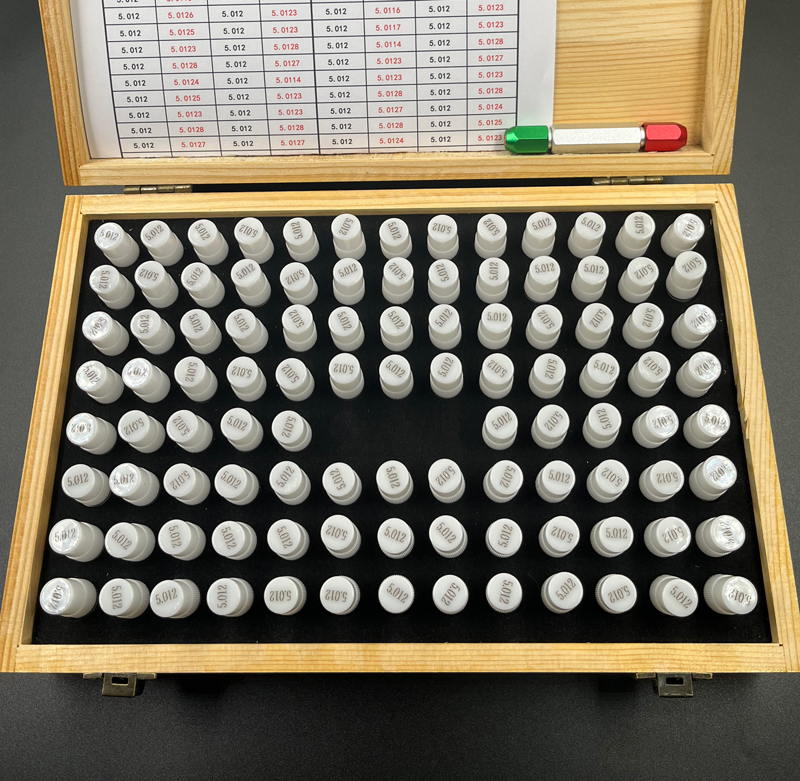

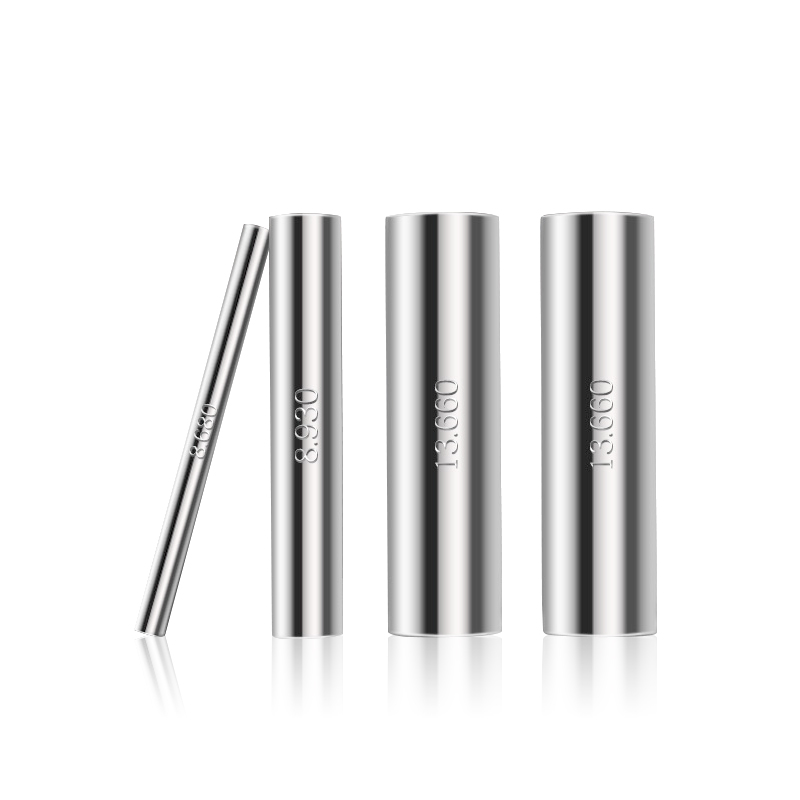

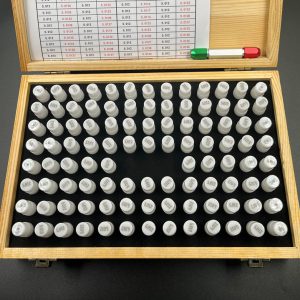

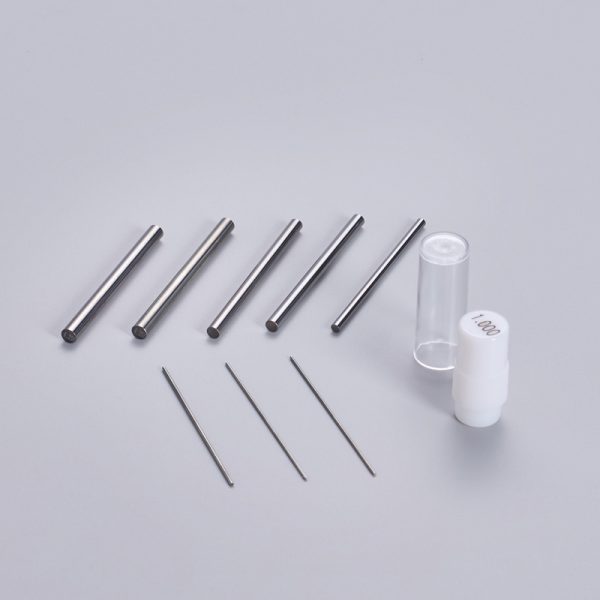

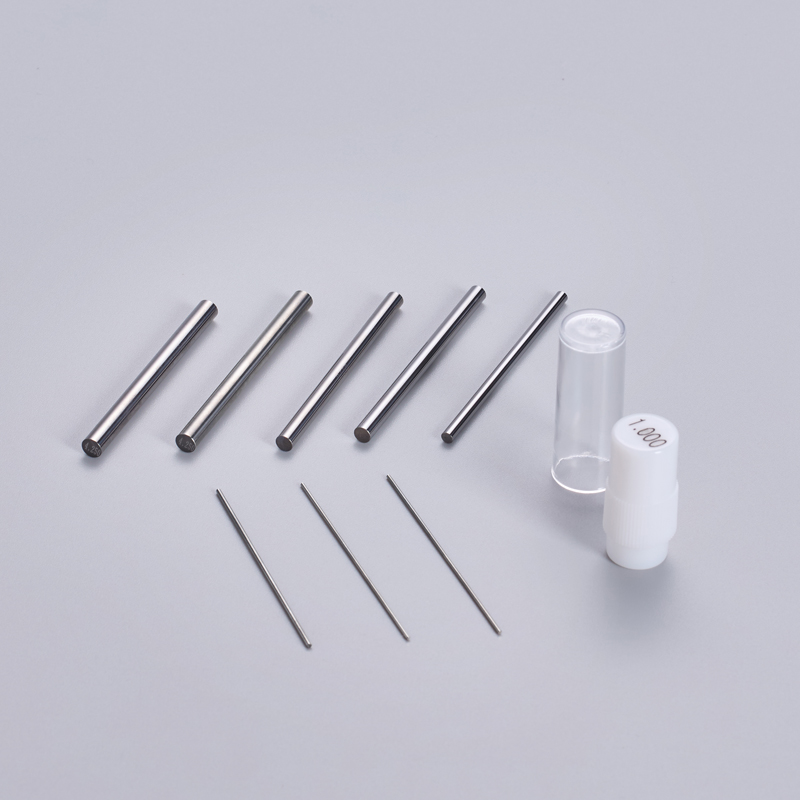

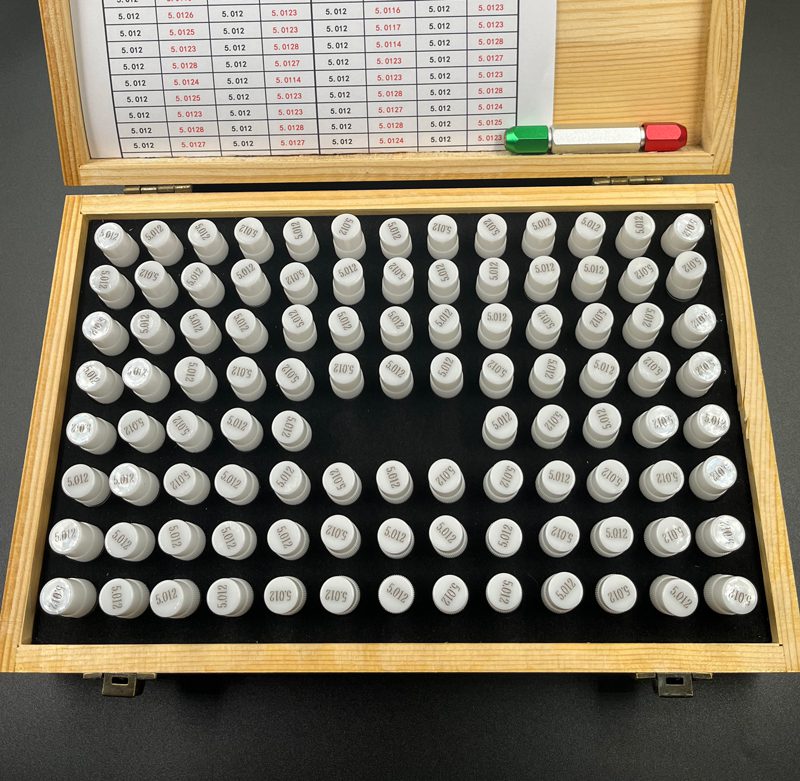

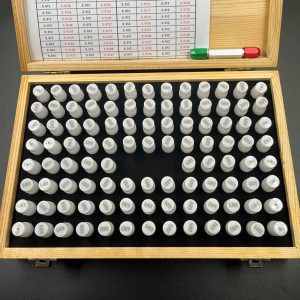

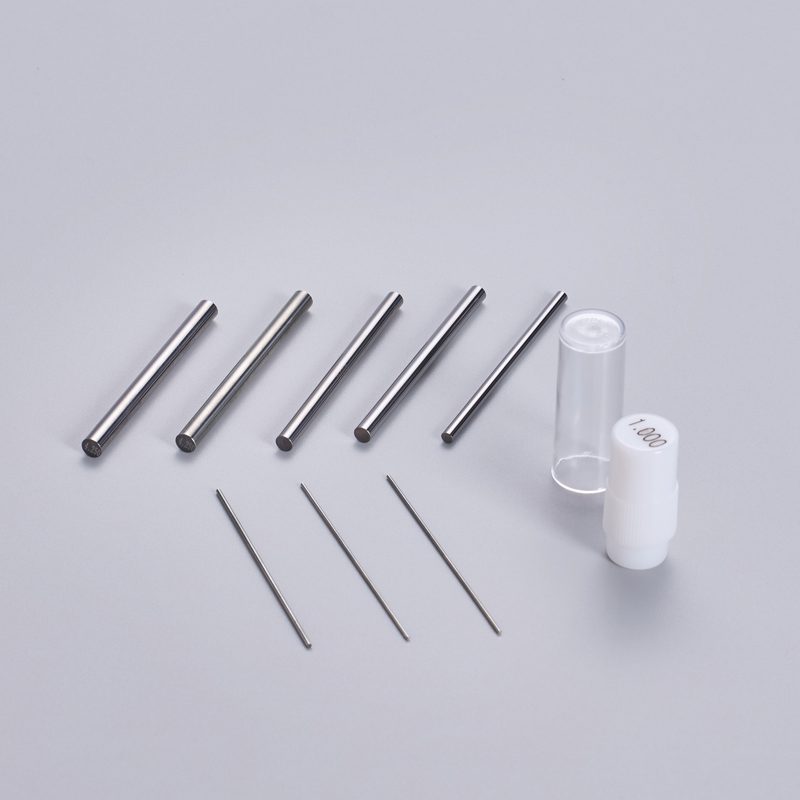

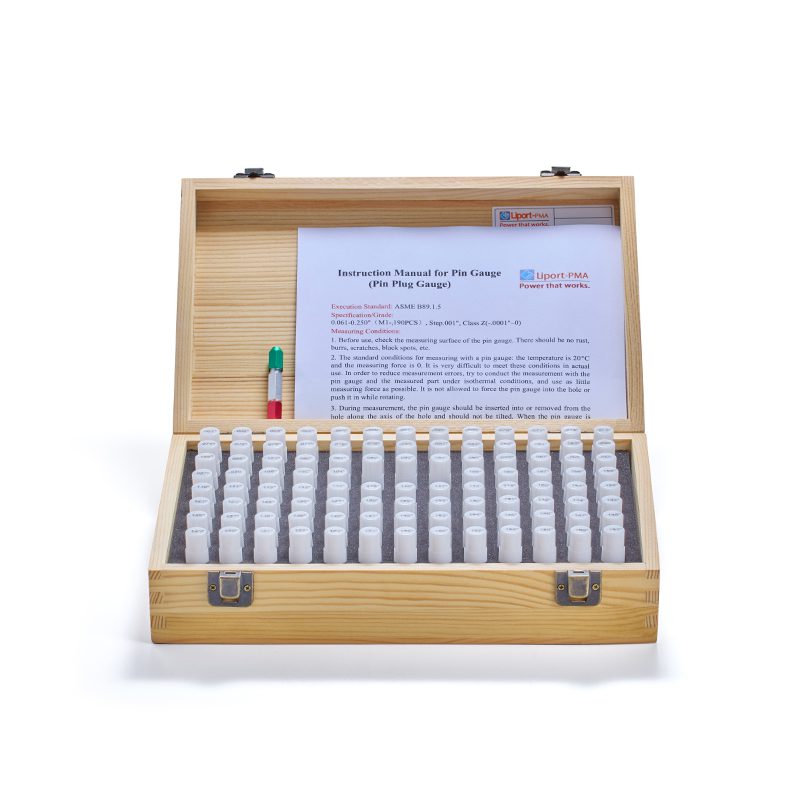

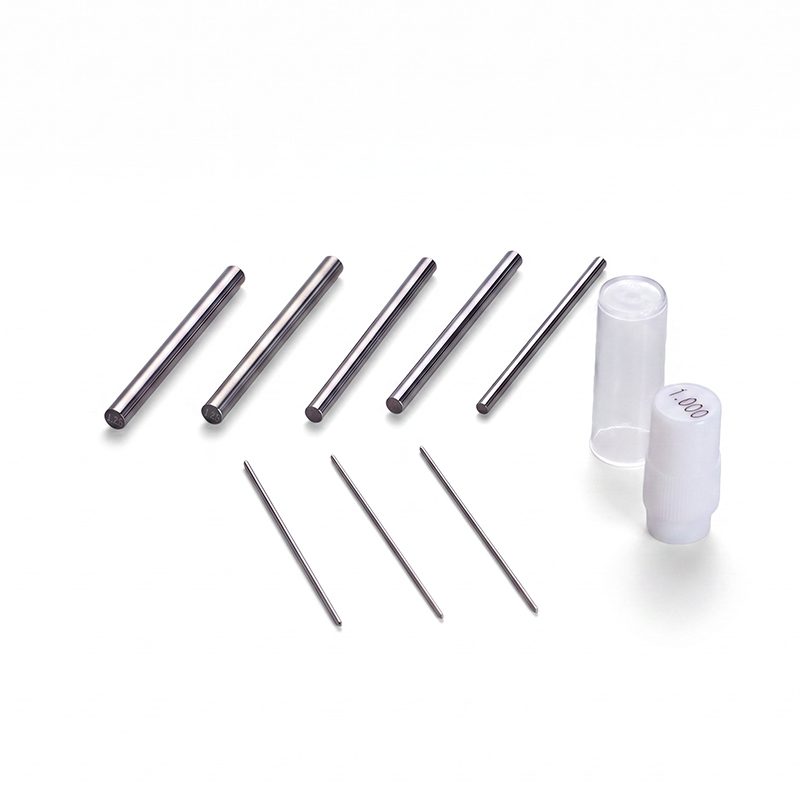

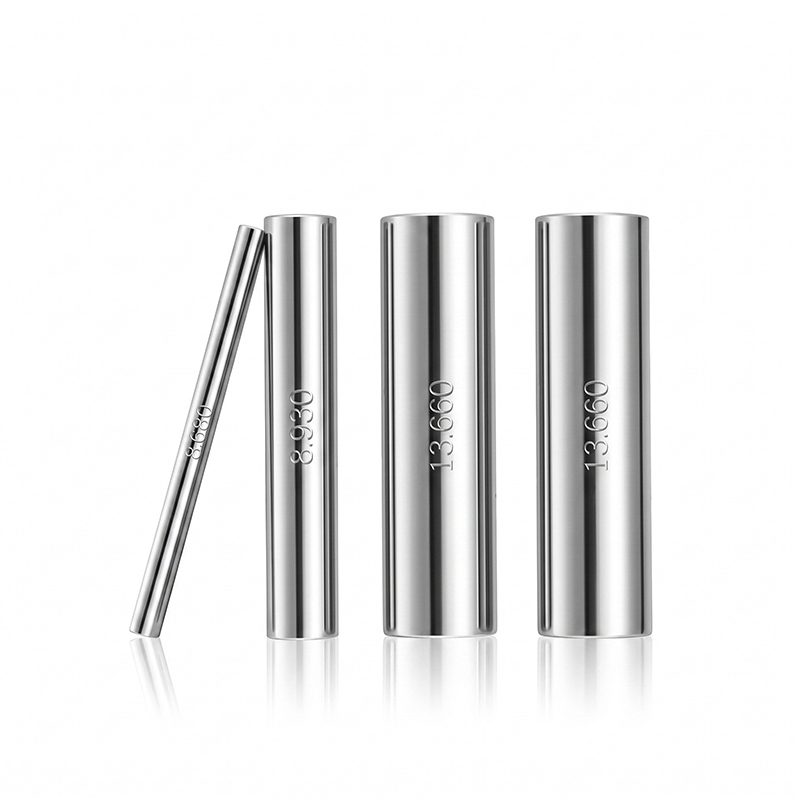

Tungsten Carbide Pin Gage Set

Simple Description

  • Product Model: Tungsten Carbide Gage Set
  • Material: Tungsten Carbide
  • Accuracy : ± 0.001mm / ±0.002mm
  • Set Increments : 0.01mm / .001″
  • Length: 50.00mm / 2 Inch
  • Hardness: HRA: 90-92
  • Both metric and imperial specifications are available.

CUSTOM – MADE

  • Special diameters are available : for example 8.003mm.
  • Plug gage with length within 200.00mm （ 8″） can be provided.
  • Tolerance Direction: minus / plus / master (bilateral)



Share
  • Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China
  • Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use
  • Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule

calibration_certificate

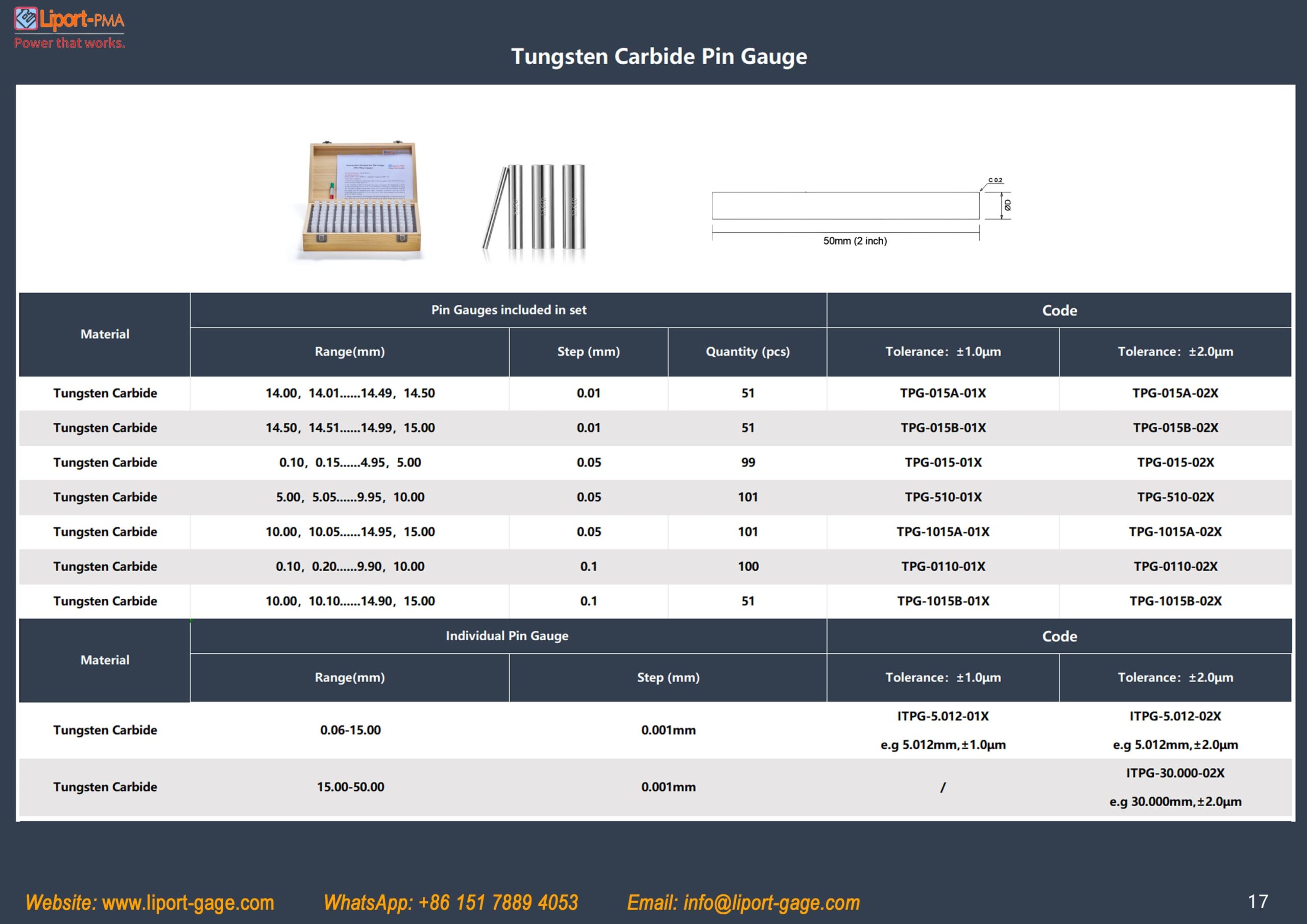

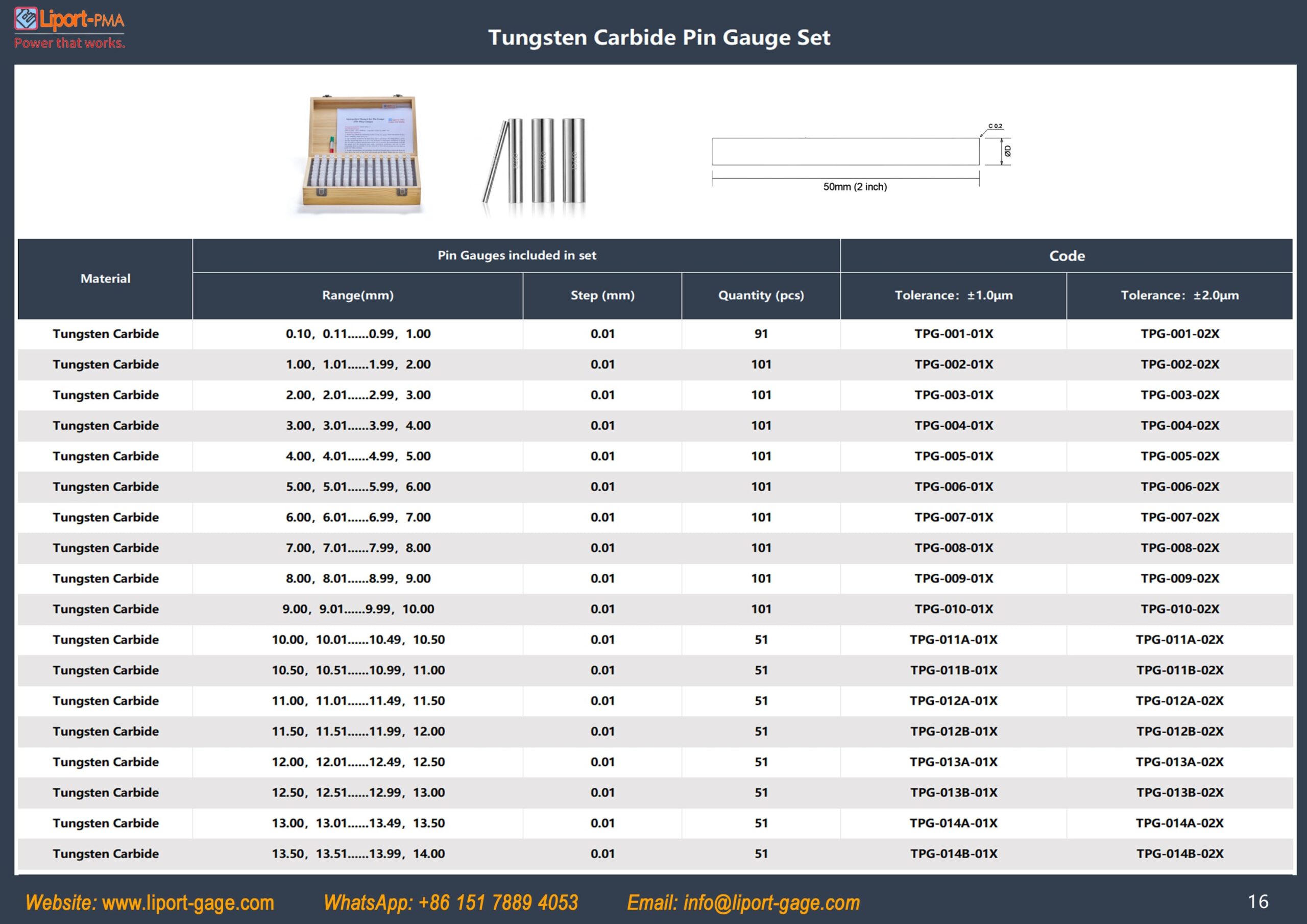

Models of Tungsten Carbide Pin Gauge Set

tungsten_carbide_pin_gauge_set_1_table tungsten_carbide_pin_gauge_set_2_table



If the above models fail to cover your requirements, don’t worry.

Click Here to get an accurate quotation.



Features:

  • Exhibits wear – resistant characteristics.
  • Demonstrates high temperature resistance.
  • Possesses corrosion resistance.
  • Ensures a long service life.
Specification of Ceramic Pin Gauge

pin_gage_demo



Calibration Instrument of Gages
• Japan Tokyo Seimitsu Roundness Tester
• Germany Mahr Roundness Tester
• Mitutoyo Laser Scan Micrometer
• Switzerland Trimos Diameter Measuring Instrument
Mitutoyo Automatic Gauge Block Interferometer

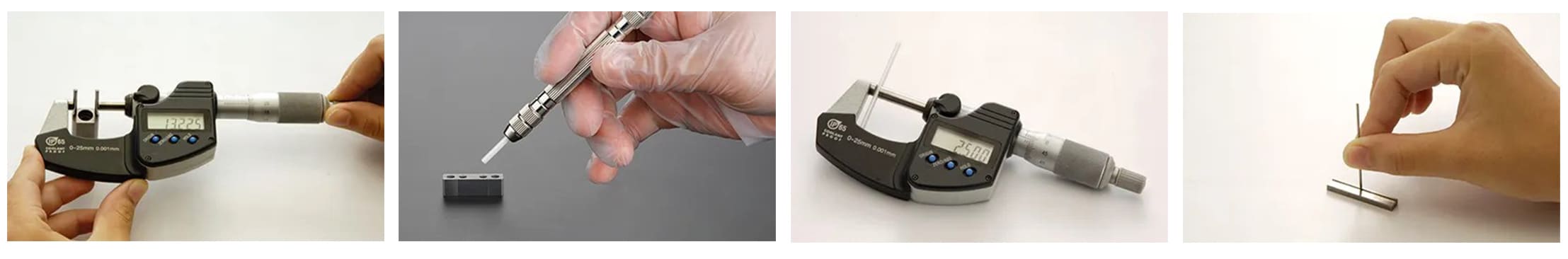

pin_gage_testing
