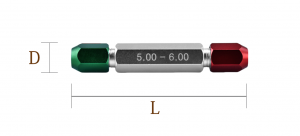

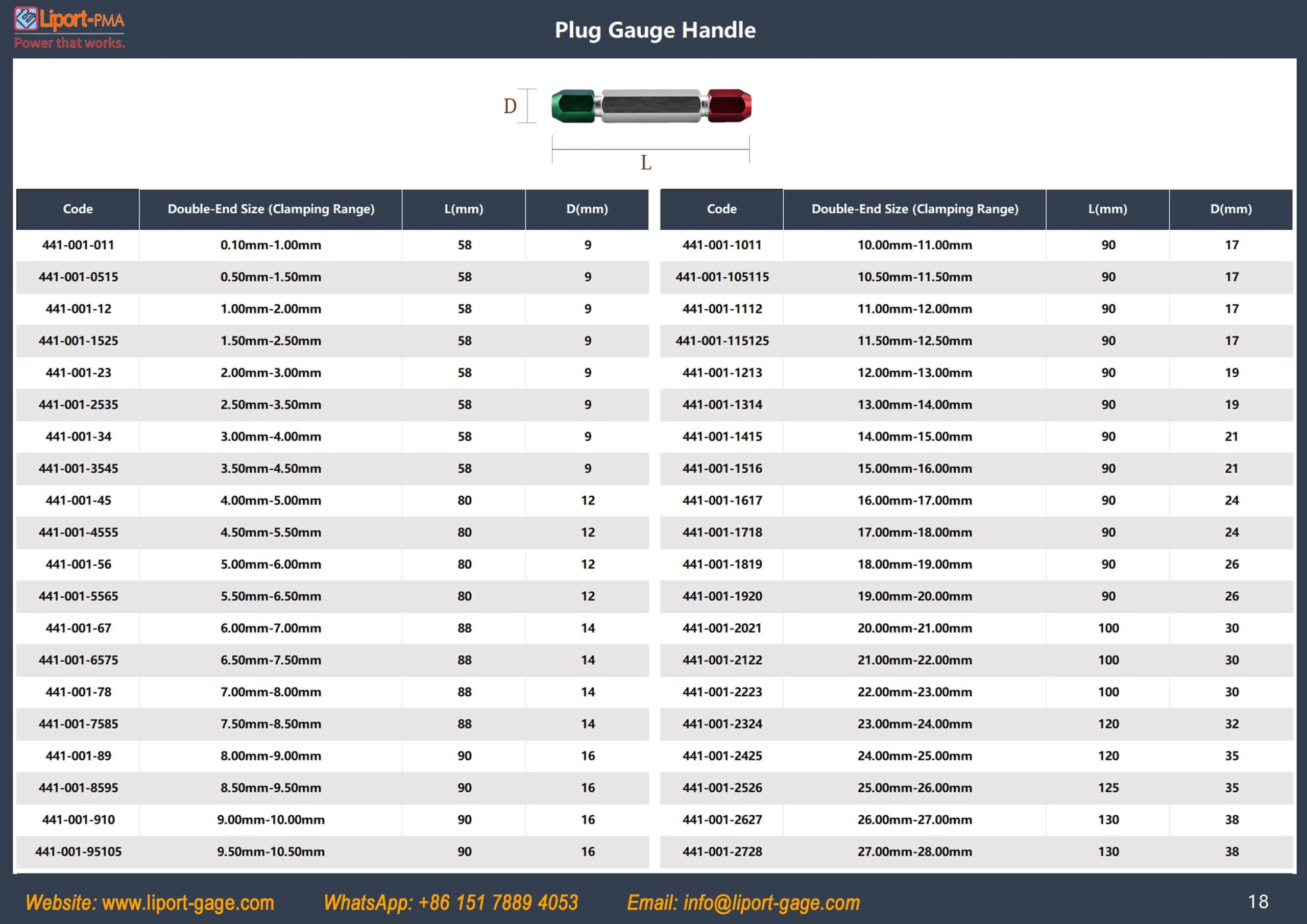

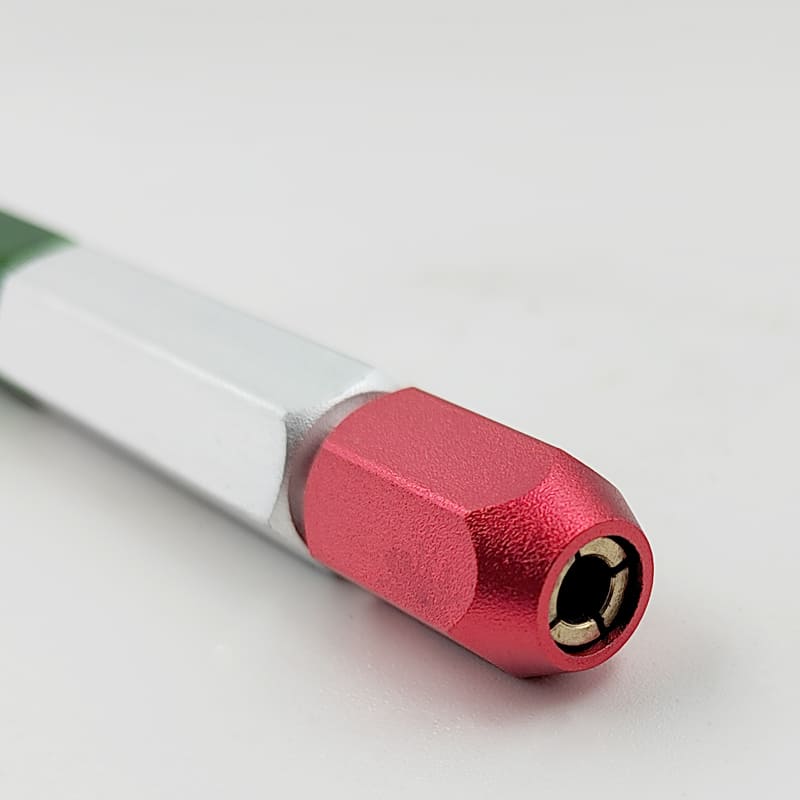

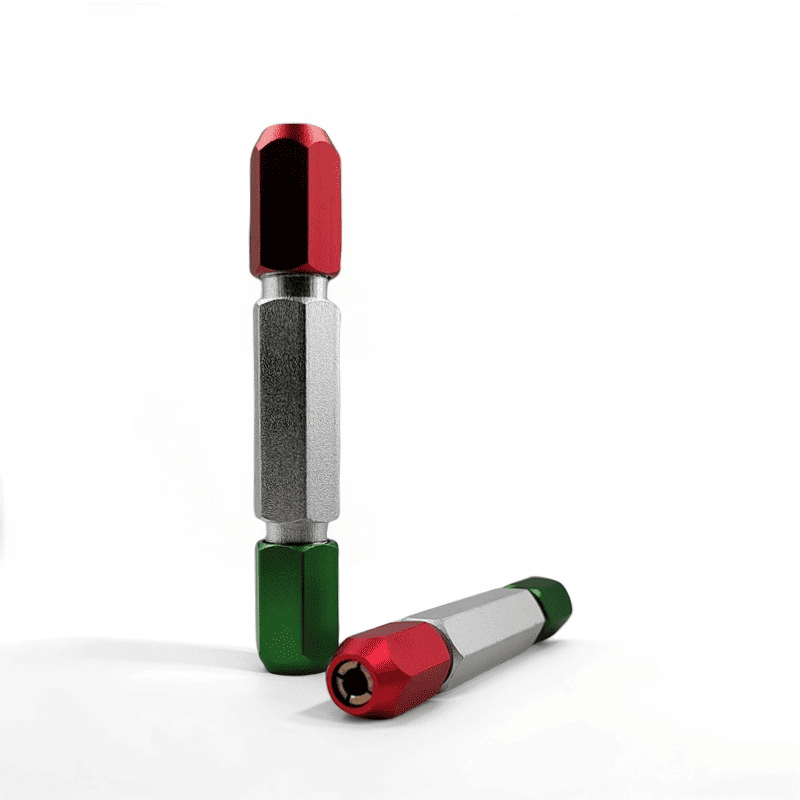

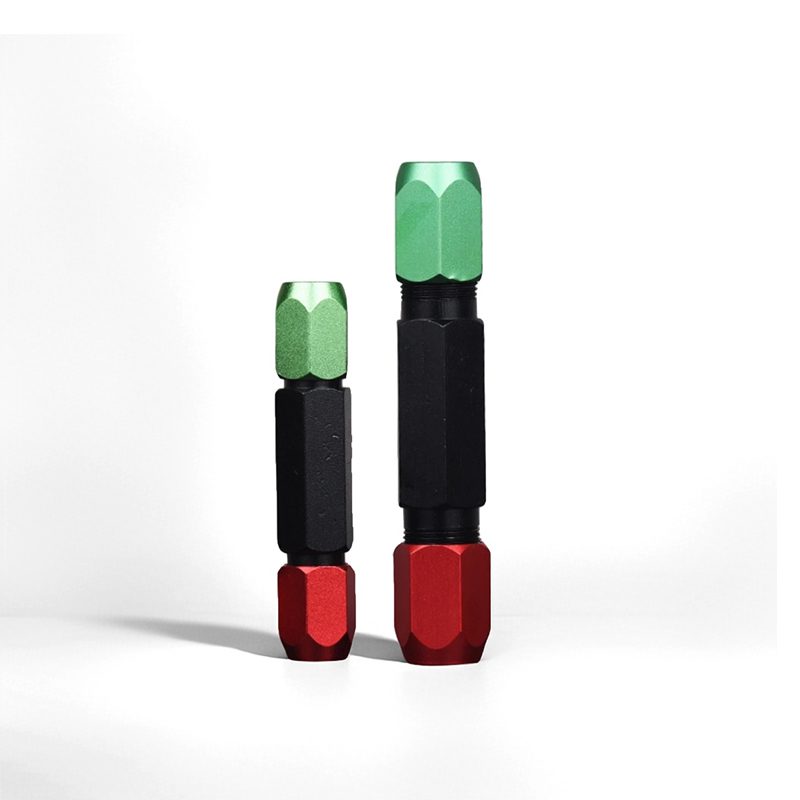

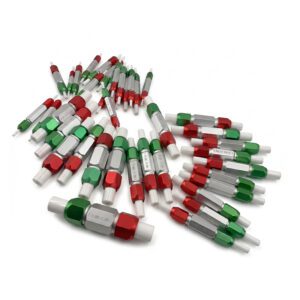

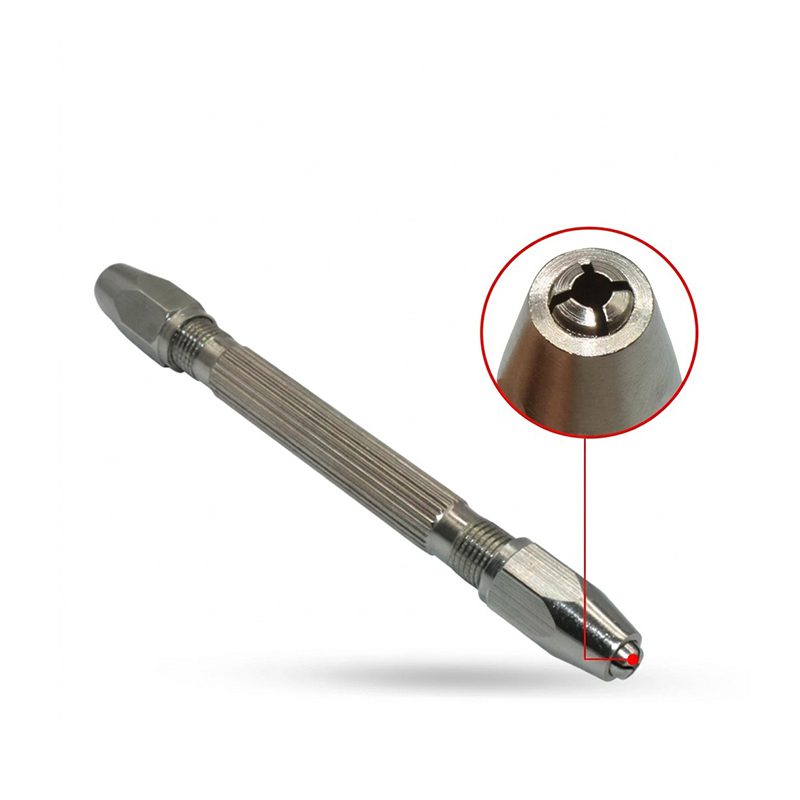

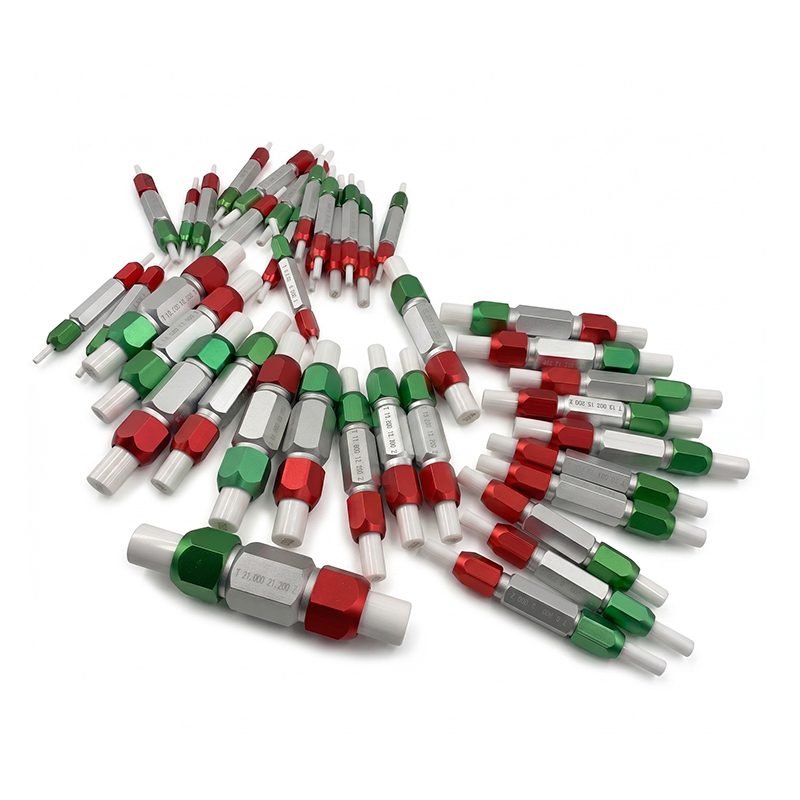

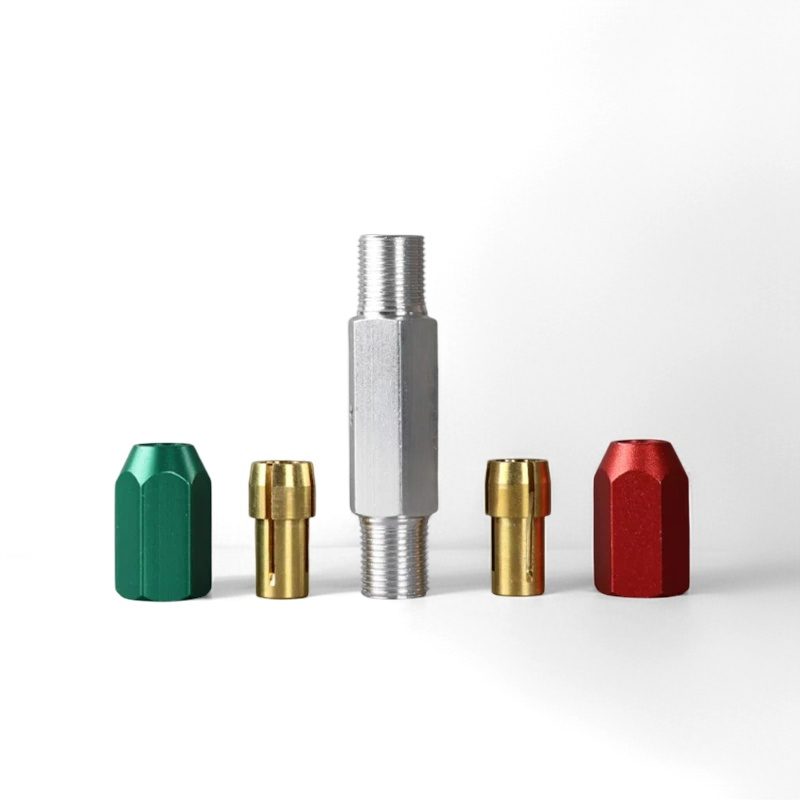

Double-End Plug Gage Handle Dimensions
Size （Metric） Size （Inch） L D Code
0.1mm-1.0mm 0.004"-0.039" 58mm 9mm 441-001-11
1.0mm-2.0mm 0.039"-0.079" 58mm 9mm 441-002-11
2.0mm-3.0mm 0.079"-0.118" 58mm 9mm 441-003-11
3.0mm-4.0mm 0.118"-0.157" 58mm 9mm 441-004-11
4.0mm-5.0mm 0.157"-0.197" 80mm 12mm 441-005-11
5.0mm-6.0mm 0.197"-0.236" 80mm 12mm 441-006-11
6.0mm-7.0mm 0.236"-0.276" 88mm 14mm 441-007-11
7.0mm-8.0mm 0.276"-0.315" 88mm 14mm 441-008-11
8.0mm-9.0mm 0.315"-0.354" 90mm 16mm 441-009-11
9.0mm-10.0mm 0.354"-0.394" 90mm 16mm 441-010-11
10.0mm-11.0mm 0.394"-0.433" 90mm 17mm 441-011-11
11.0mm-12.0mm 0.433"-0.472" 90mm 17mm 441-012-11
12.0mm-13.0mm 0.472"-0.512" 90mm 19mm 441-013-11
13.0mm-14.0mm 0.512"-0.551" 90mm 19mm 441-014-11
14.0mm-15.0mm 0.551"-0.591" 90mm 21mm 441-015-11
15.0mm-16.0mm 0.591"-0.63" 90mm 21mm 441-016-11
16.0mm-17.0mm 0.63"-0.669" 90mm 24mm 441-017-11
17.0mm-18.0mm 0.669"-0.709" 90mm 24mm 441-018-11
18.0mm-19.0mm 0.709"-0.748" 90mm 26mm 441-019-11
19.0mm-20.0mm 0.748"-0.787" 90mm 26mm 441-020-11
20.0mm-21.0mm 0.787"-0.827" 100mm 30mm 441-021-11
21.0mm-22.0mm 0.827"-0.866" 100mm 30mm 441-022-11
22.0mm-23.0mm 0.866"-0.906" 100mm 30mm 441-023-11
23.0mm-24.0mm 0.906"-0.945" 120mm 32mm 441-024-11
24.0mm-25.0mm 0.945"-0.984" 120mm 35mm 441-025-11
25.0mm-26.0mm 0.984"-1.024" 125mm 35mm 441-026-11

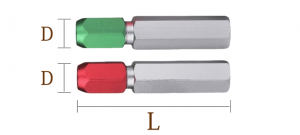

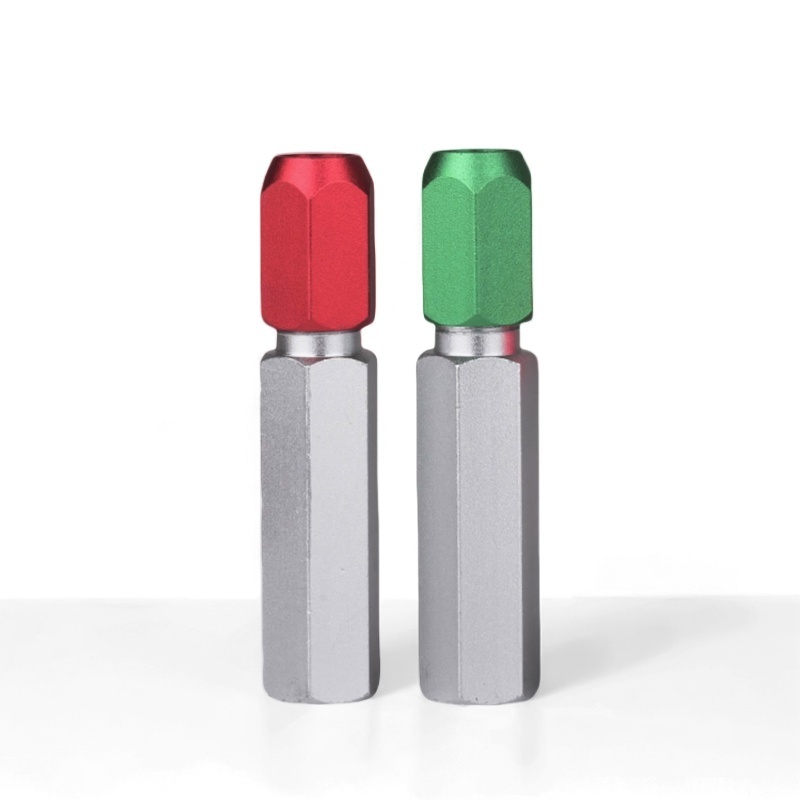

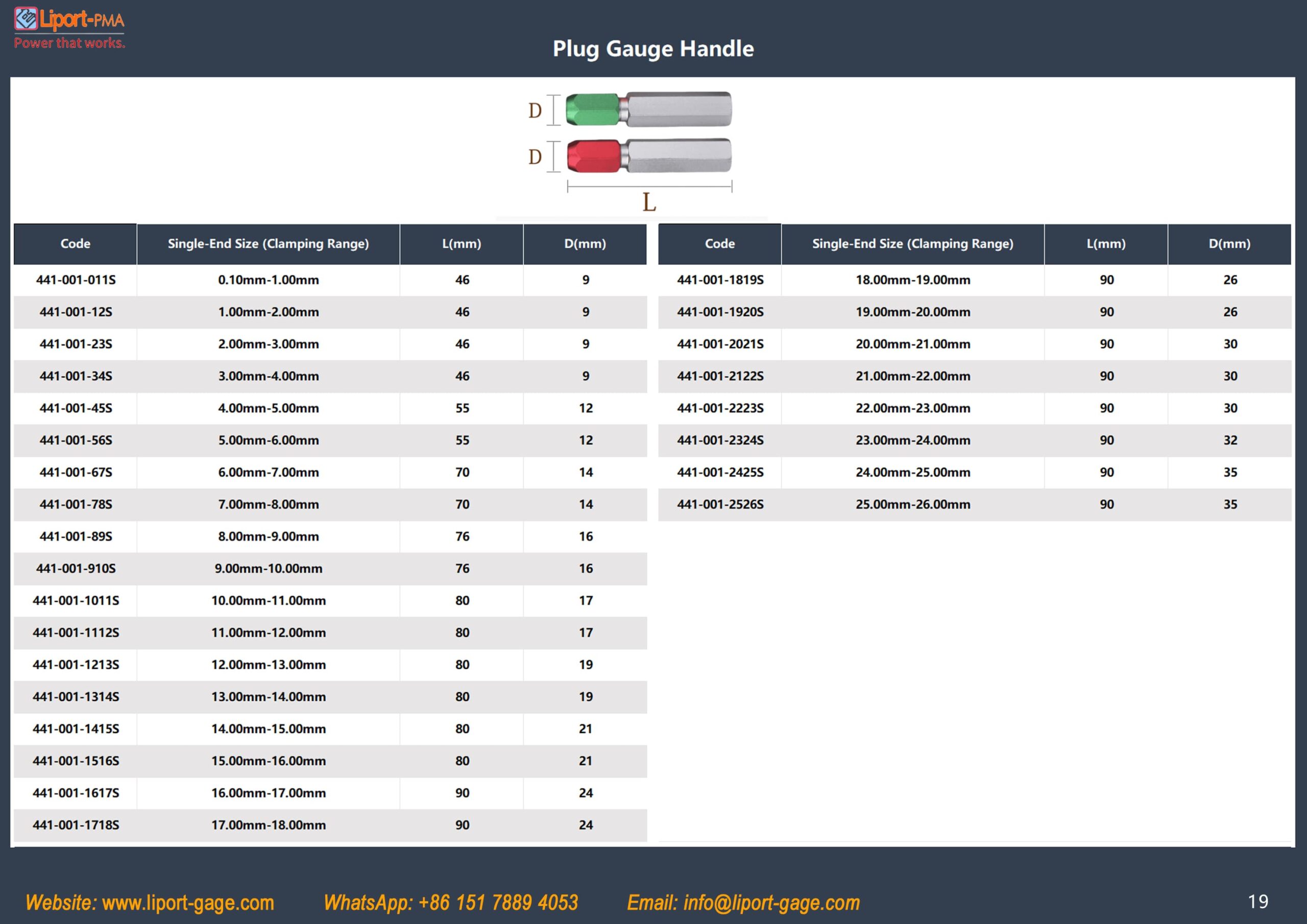

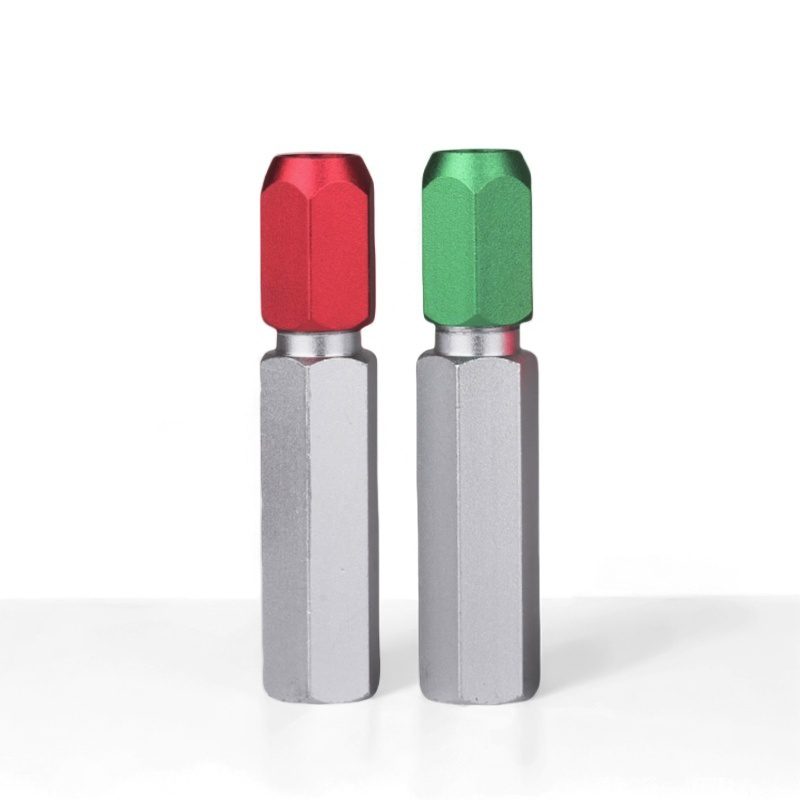

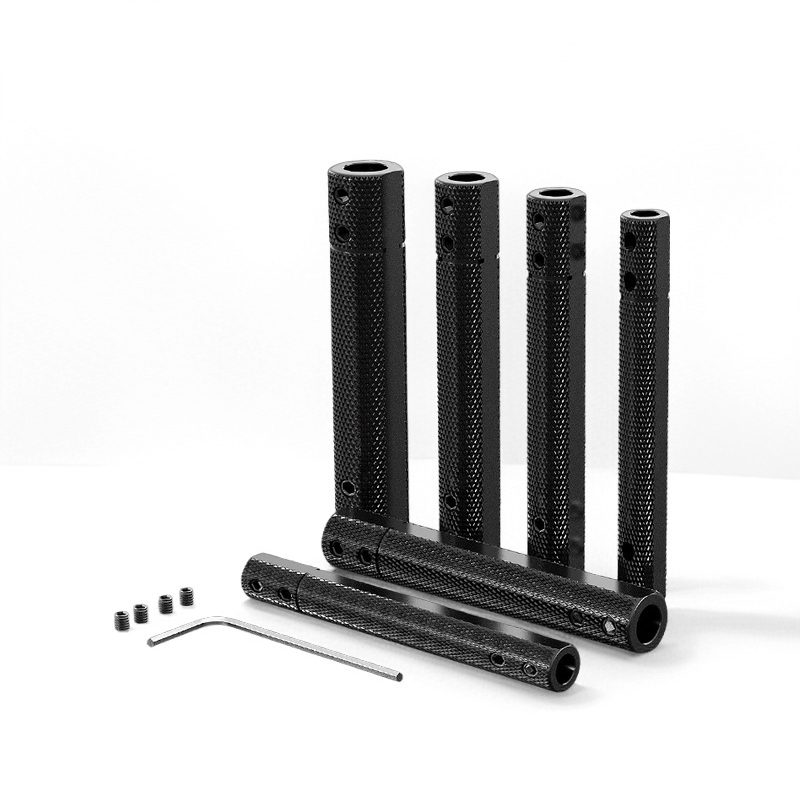

Single-End Plug Gage Handle Dimensions
| Size （Metric） | Size （Inch） | L | D | Code |
|---|---|---|---|---|
| 0.1mm-1.0mm | 0.004"-0.039" | 46mm | 9mm | 441-001-12 |
| 1.0mm-2.0mm | 0.039"-0.079" | 46mm | 9mm | 441-002-12 |
| 2.0mm-3.0mm | 0.079"-0.118" | 46mm | 9mm | 441-003-12 |
| 3.0mm-4.0mm | 0.118"-0.157" | 46mm | 9mm | 441-004-12 |
| 4.0mm-5.0mm | 0.157"-0.197" | 55mm | 12mm | 441-005-12 |
| 5.0mm-6.0mm | 0.197"-0.236" | 55mm | 12mm | 441-006-12 |
| 6.0mm-7.0mm | 0.236"-0.276" | 70mm | 14mm | 441-007-12 |
| 7.0mm-8.0mm | 0.276"-0.315" | 70mm | 14mm | 441-008-12 |
| 8.0mm-9.0mm | 0.315"-0.354" | 76mm | 16mm | 441-009-12 |
| 9.0mm-10.0mm | 0.354"-0.394" | 76mm | 16mm | 441-010-12 |
| 10.0mm-11.0mm | 0.394"-0.433" | 80mm | 17mm | 441-011-12 |
| 11.0mm-12.0mm | 0.433"-0.472" | 80mm | 17mm | 441-012-12 |
| 12.0mm-13.0mm | 0.472"-0.512" | 80mm | 19mm | 441-013-12 |
| 13.0mm-14.0mm | 0.512"-0.551" | 80mm | 19mm | 441-014-12 |
| 14.0mm-15.0mm | 0.551"-0.591" | 80mm | 21mm | 441-015-12 |
| 15.0mm-16.0mm | 0.591"-0.63" | 80mm | 21mm | 441-016-12 |
| 16.0mm-17.0mm | 0.63"-0.669" | 90mm | 24mm | 441-017-12 |
| 17.0mm-18.0mm | 0.669"-0.709" | 90mm | 24mm | 441-018-12 |
| 18.0mm-19.0mm | 0.709"-0.748" | 90mm | 26mm | 441-019-12 |
| 19.0mm-20.0mm | 0.748"-0.787" | 90mm | 26mm | 441-020-12 |
| 20.0mm-21.0mm | 0.787"-0.827" | 90mm | 30mm | 441-021-12 |
| 21.0mm-22.0mm | 0.827"-0.866" | 90mm | 30mm | 441-022-12 |
| 22.0mm-23.0mm | 0.866"-0.906" | 90mm | 30mm | 441-023-12 |
| 23.0mm-24.0mm | 0.906"-0.945" | 90mm | 32mm | 441-024-12 |
| 24.0mm-25.0mm | 0.945"-0.984" | 90mm | 35mm | 441-025-12 |
| 25.0mm-26.0mm | 0.984"-1.024" | 90mm | 35mm | 441-026-12 |
