Custom 10-Step Ceramic Calibration Gauge — Compact Multi-Level Reference
Industrial ceramic stepped gauge with 10 reference levels (10–14.5mm, 0.5mm increments).
±0.003mm step tolerance.
Compact 48×40×14.5mm design.

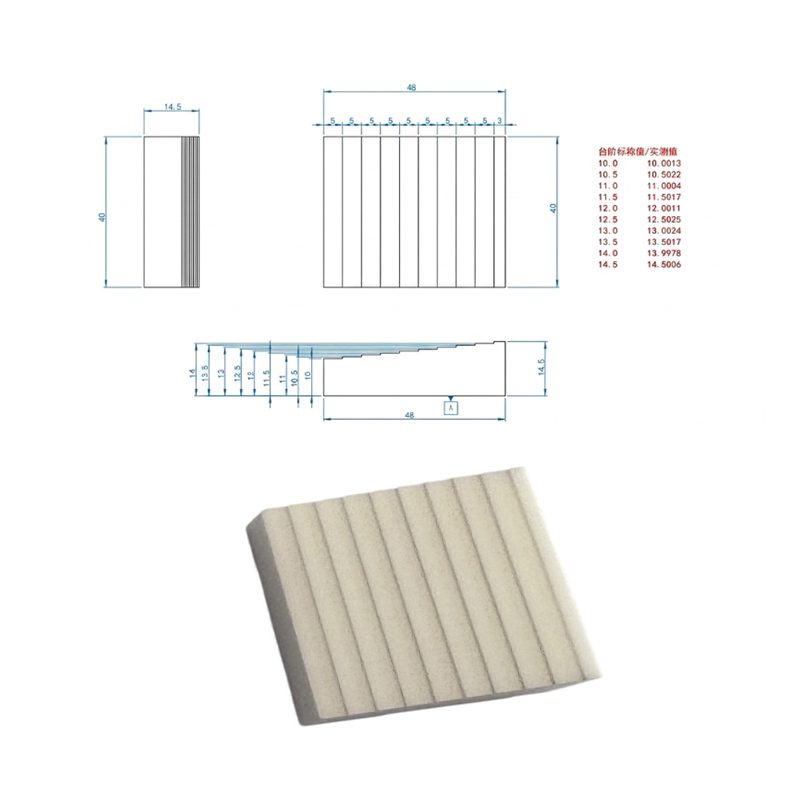

Manufactured to customer’s drawing.
Share
Custom 10-Step Ceramic Calibration Gauge — Compact Multi-Level Reference
The Challenge
Customer needed a compact multi-level reference gauge — 10 steps, each precisely spaced, all within tight tolerance. The design was provided; the requirement was precision manufacturing.
What We Built
  • 10-step industrial ceramic gauge
  • Step range: 10–14.5mm, 0.5mm increments
  • Compact form factor: 48×40×14.5mm
  • Step height tolerance: ±0.003mm
  • Flatness & parallelism: 0.005mm
Applications
  • CMM multi-point calibration reference
  • Sensor height calibration
  • Machine vision system height verification
  • Laboratory metrology reference standard
Why It Works
  • 10 reference levels in one compact block — quick multi-point verification
  • Ceramic: stable, non-magnetic, no thermal drift
  • Tight ±3μm tolerance on every step, verified and documented
Your Design, Our Precision
Have a drawing? We’ll manufacture it to your specs.
Notes: The foregoing information has been desensitized for presentation. Should your company have commercial confidentiality requirements, our company may enter into a special confidentiality agreement with you.
