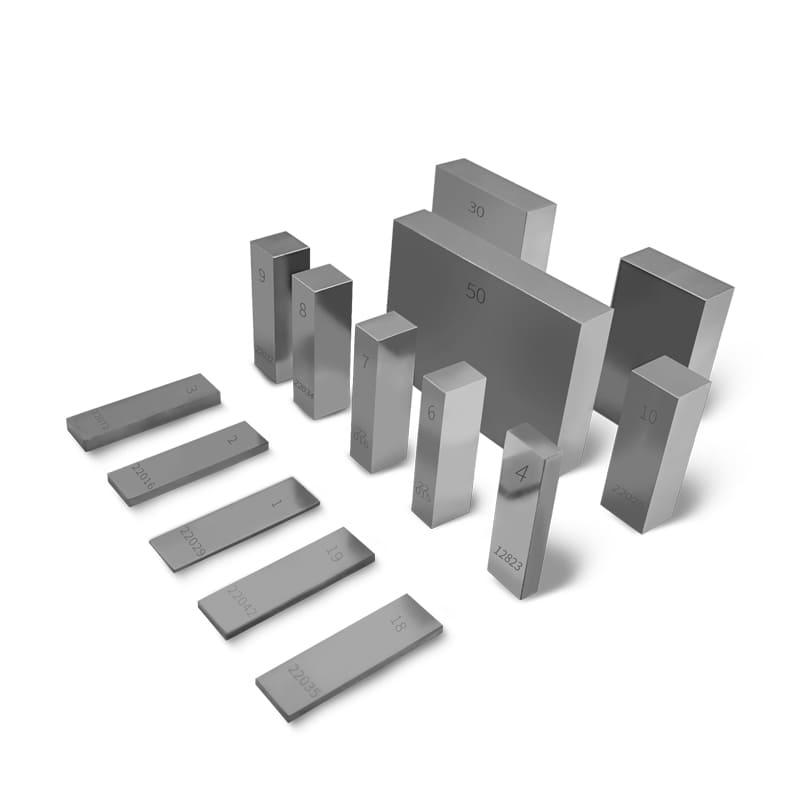

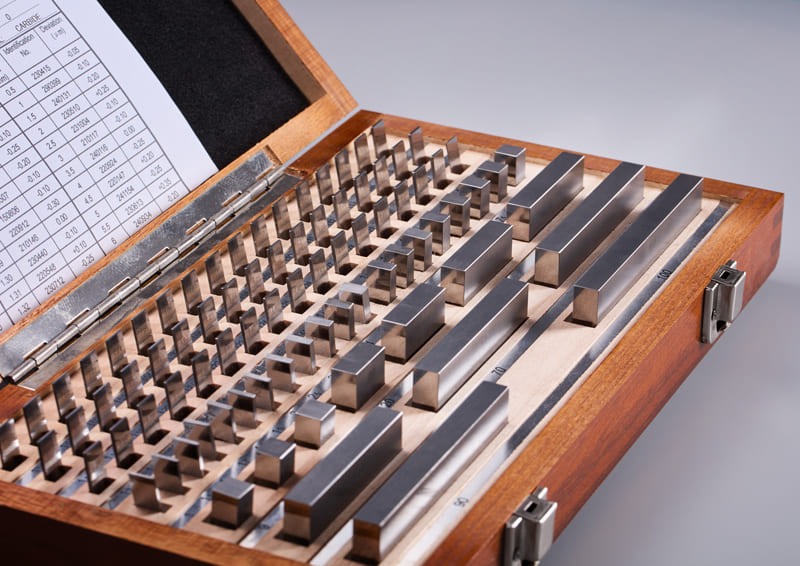

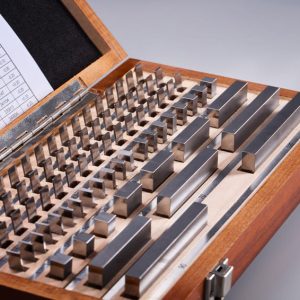

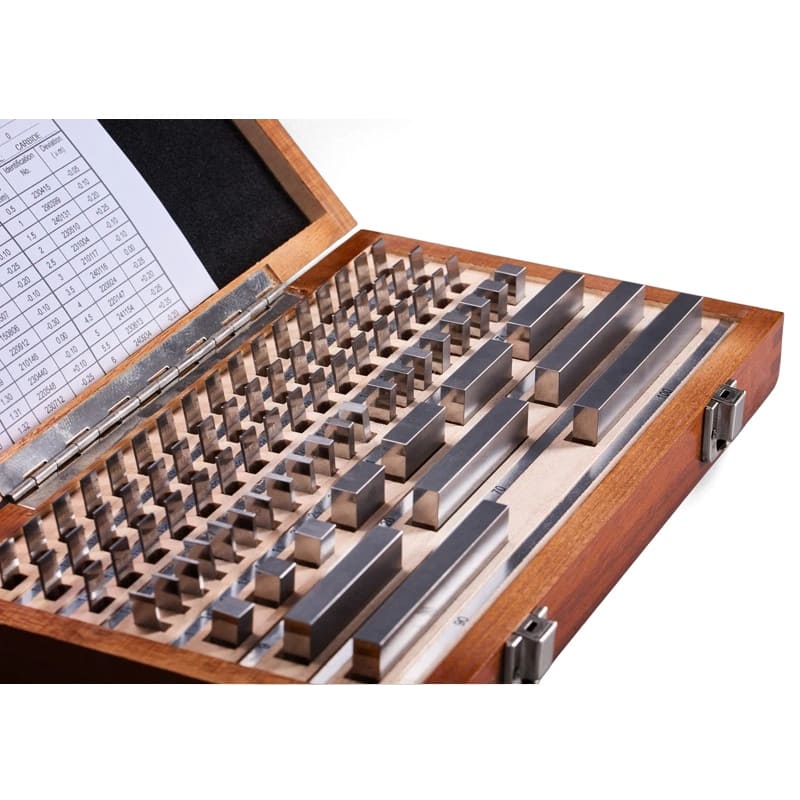

Tungsten Carbide Gage Block Set

Simple Description

Product Model: Tungsten Carbide Gage Block Set
Material: Tungsten Carbide
Hardness: HRA: 90-92
Standards: DIN 861 / ASME B89.1.9
Shape: Rectangular
Dimension Type: Metric
Case Type : Wooden Case

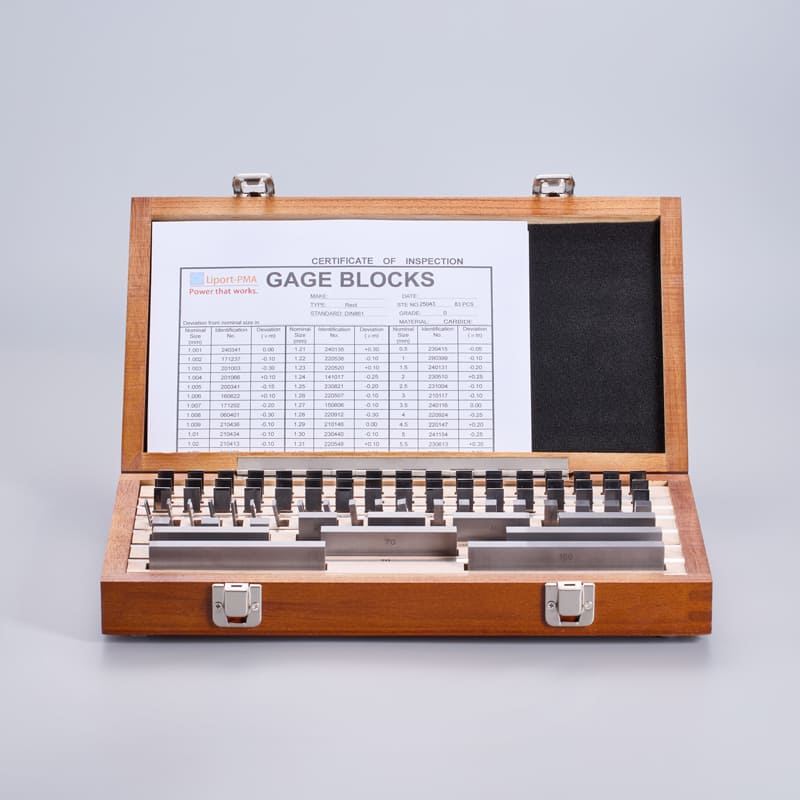

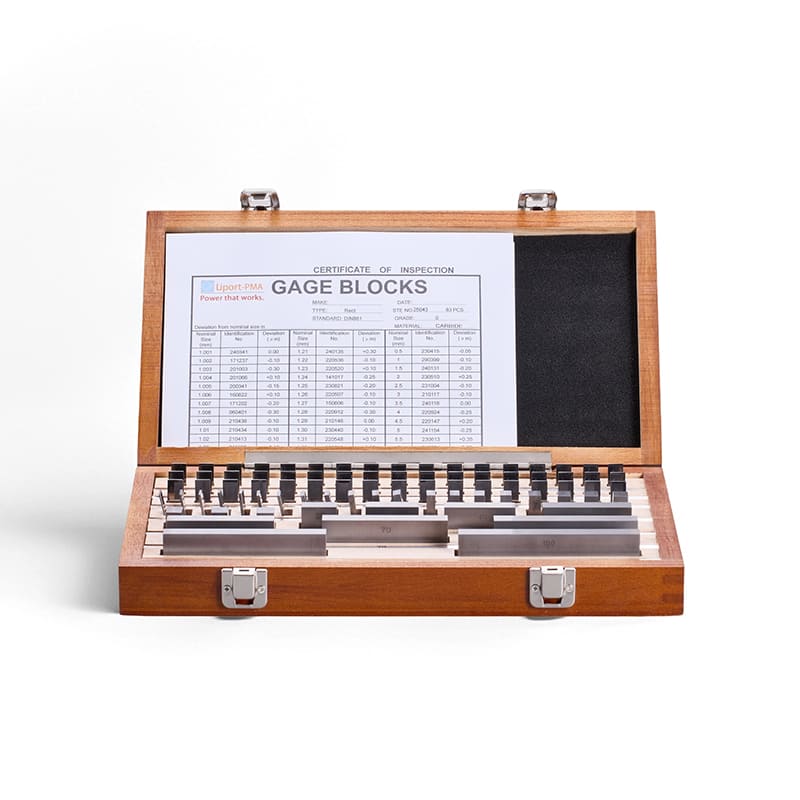

Supplied with manufacturer inspection certificate

CUSTOM – MADE

Special specifications are available : for example 36.454mm
Special shaped block gage with an accuracy ± 1 μm can be provided upon request.

Share

Description

Features:

Exhibits High Hardness
Boasts Excellent Wear Resistance
Features High Temperature Resistance
Displays High Density
Offers Corrosion Resistance
Ensures Dimensional Stability
Allows for Easy Processing and Maintenance

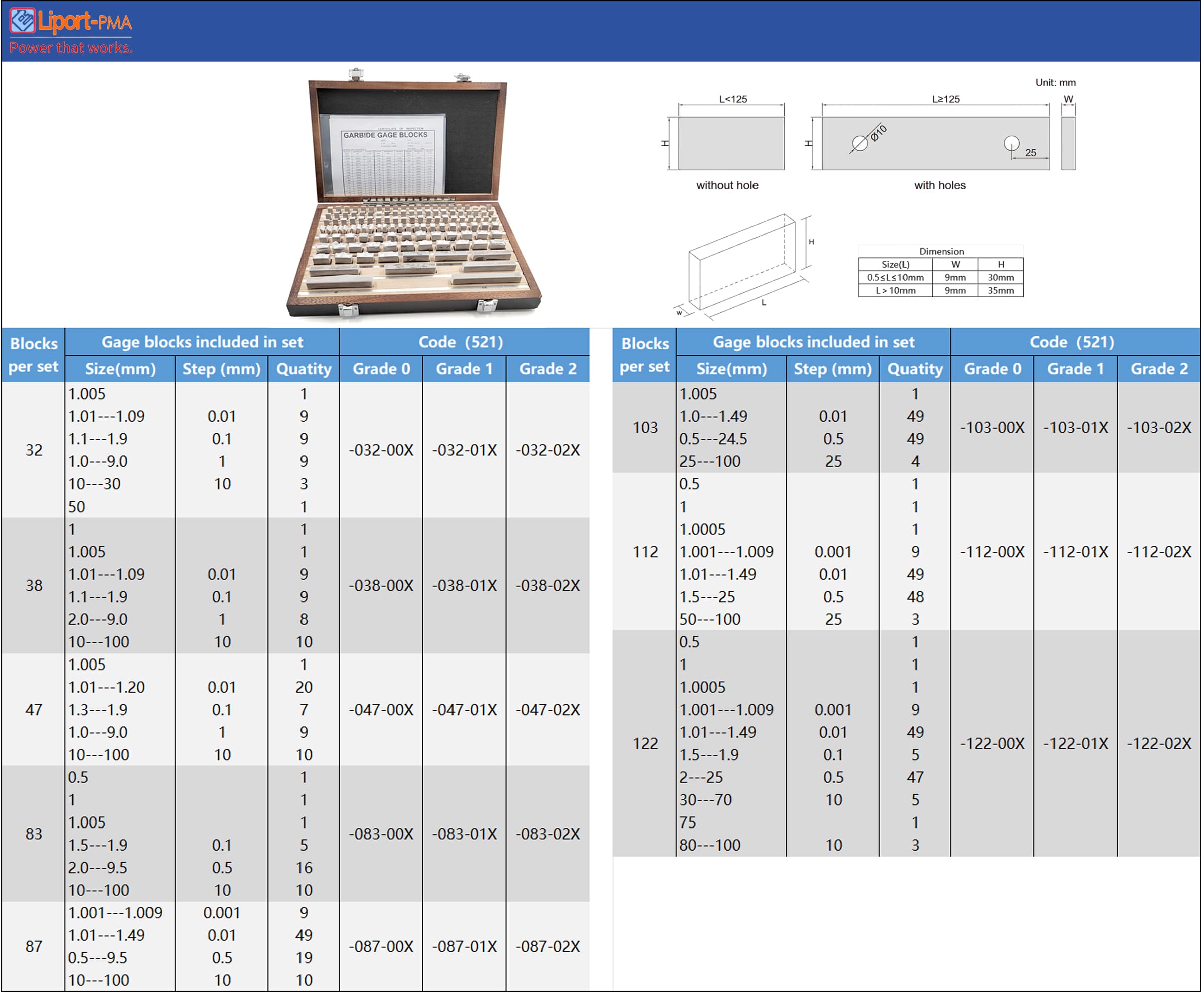

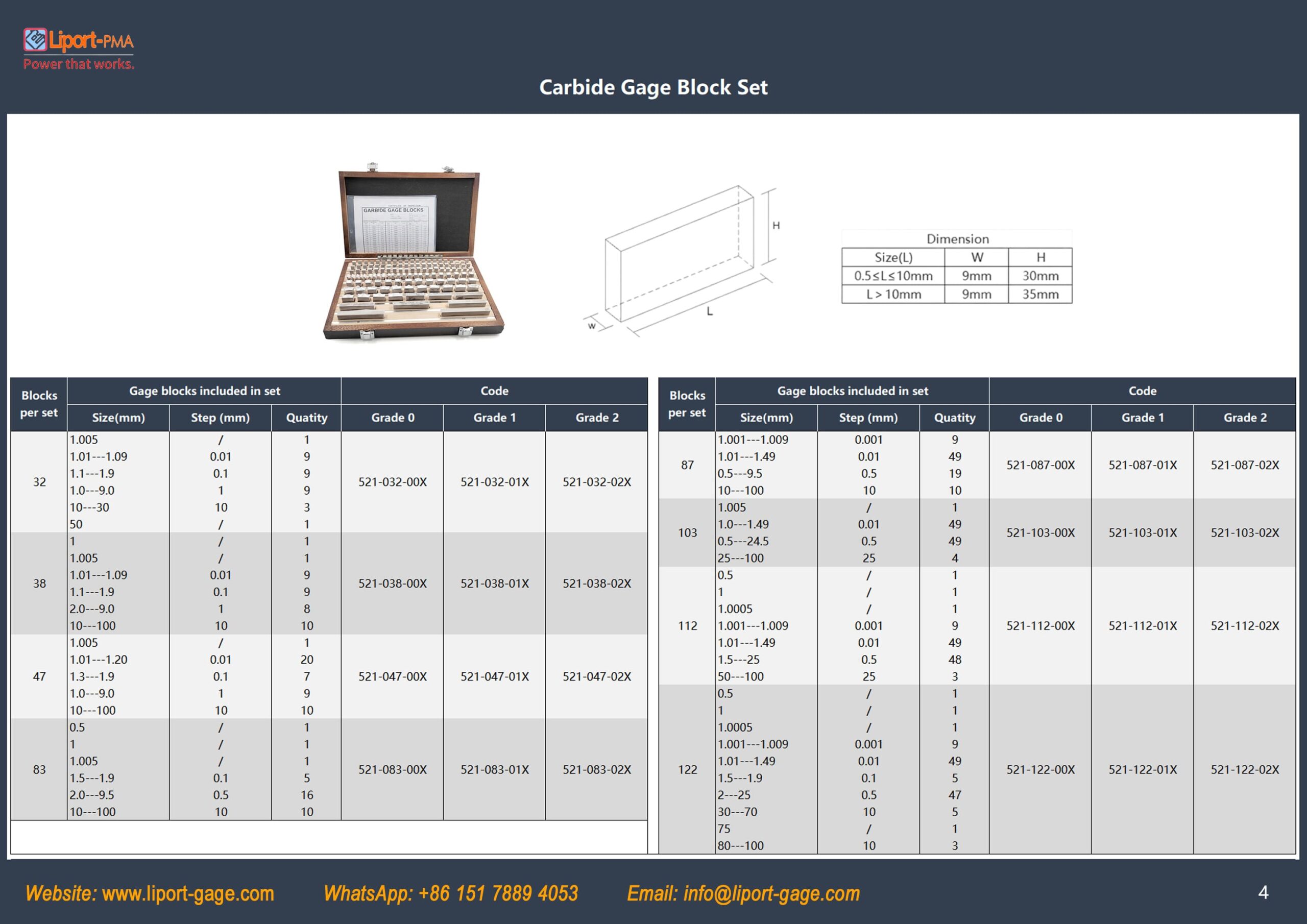

Modles of Tungsten Carbide Gage Block Set

Calibration Instrument of Gages
• Japan Tokyo Seimitsu Roundness Tester
• Germany Mahr Roundness Tester
• Mitutoyo Laser Scan Micrometer
• Switzerland Trimos Diameter Measuring Instrument
