Steel Gage Block Set for Caliper & Micrometer Inspection

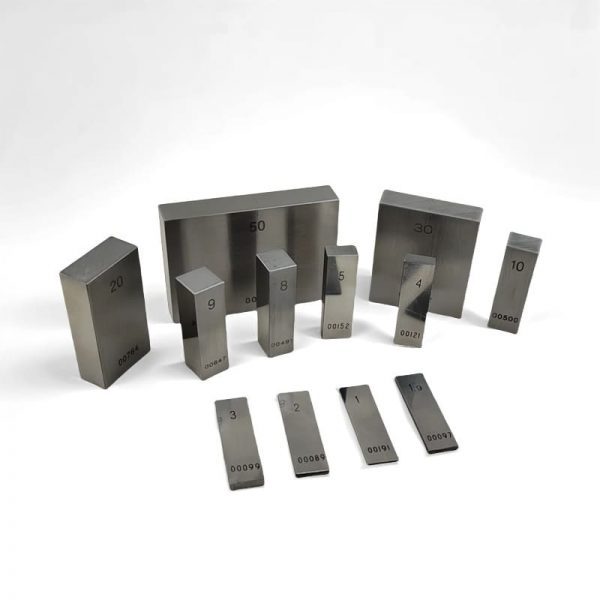

Steel Gage Block Set
Simple Description
- Product Model: Steel Gage Block Set
- Material: High Speed Steel
- Hardness: HRC 64
- Standards: ISO 3650 / DIN 861 / ASME B89.1.9
- Shape: Rectangular
- Dimension Type: Inch and Metric
- Case Type : Wooden Case

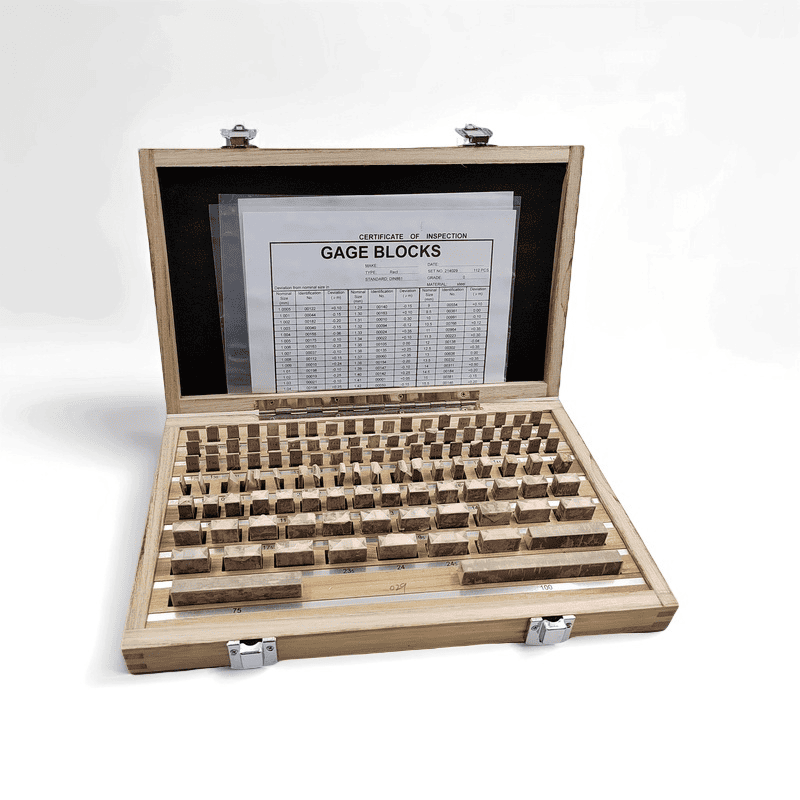

- Supplied with manufacturer inspection certificate
CUSTOM – MADE
- Special specifications are available : for example 36.454mm
- Special shaped block gage with an accuracy ± 1 μm can be provided upon request.
- Block gage products come with a factory inspection qualification report.
- Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China. The official laboratory implements the Chinese JJG146 standard.
- Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use
- Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule

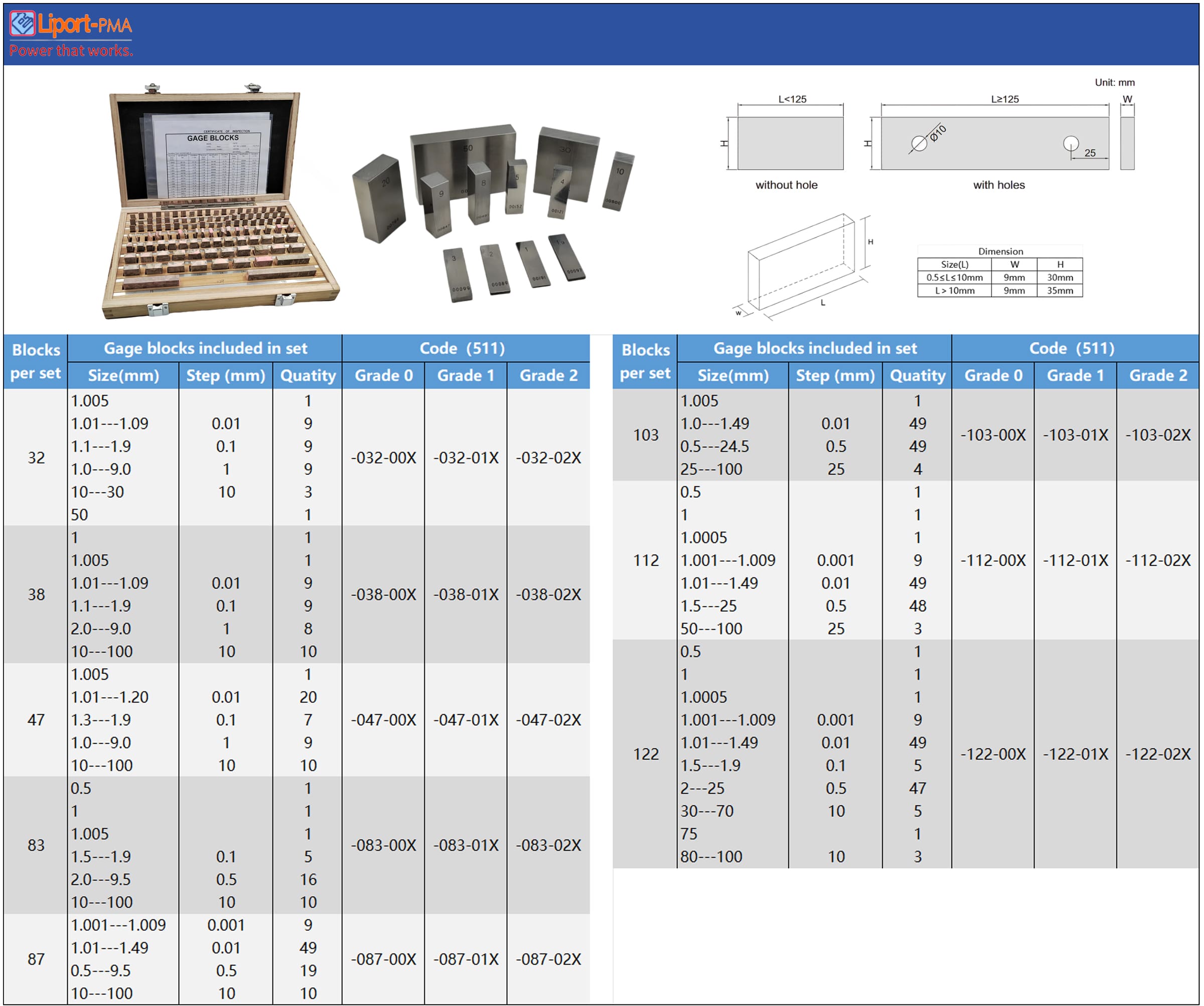

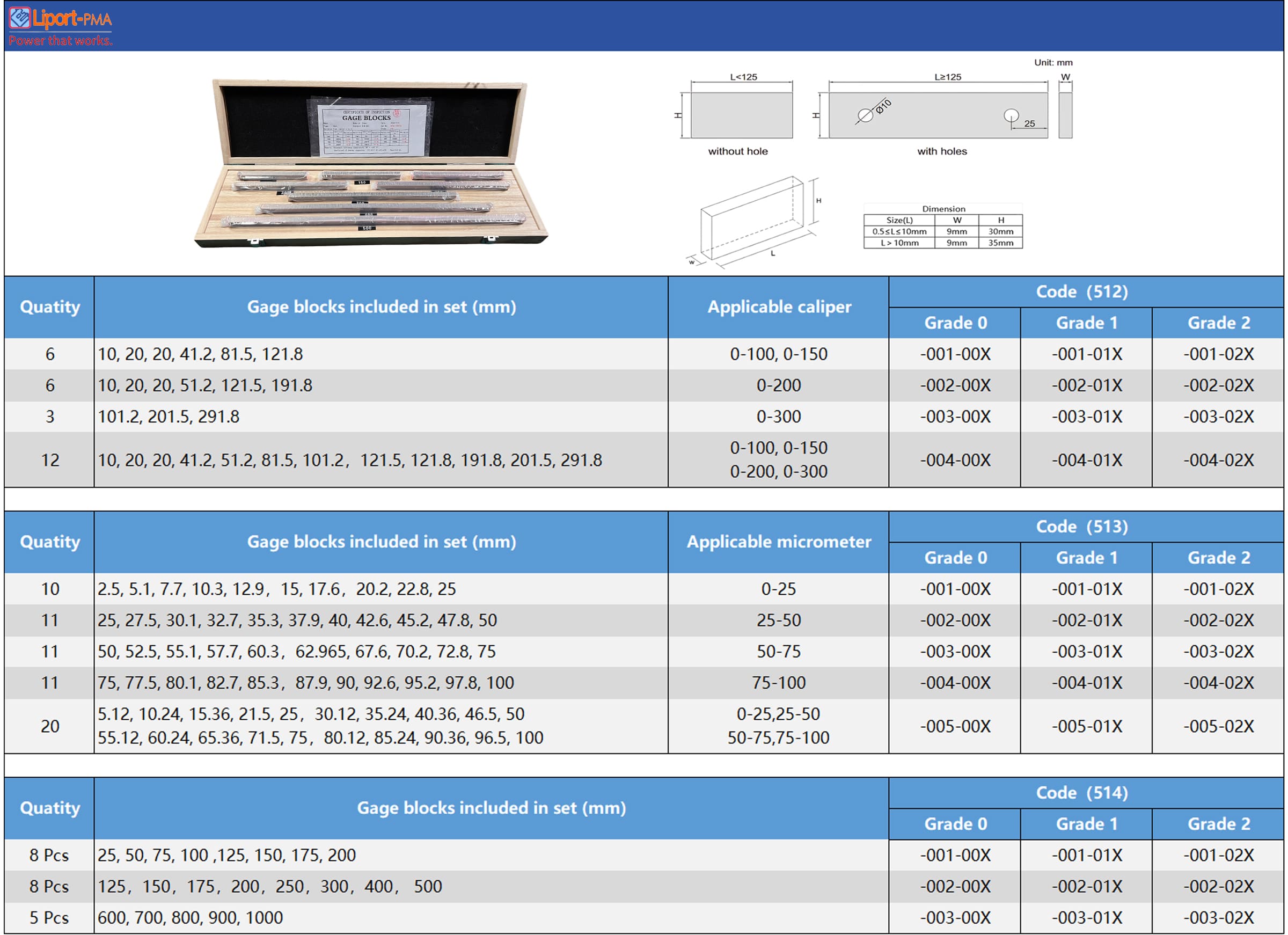

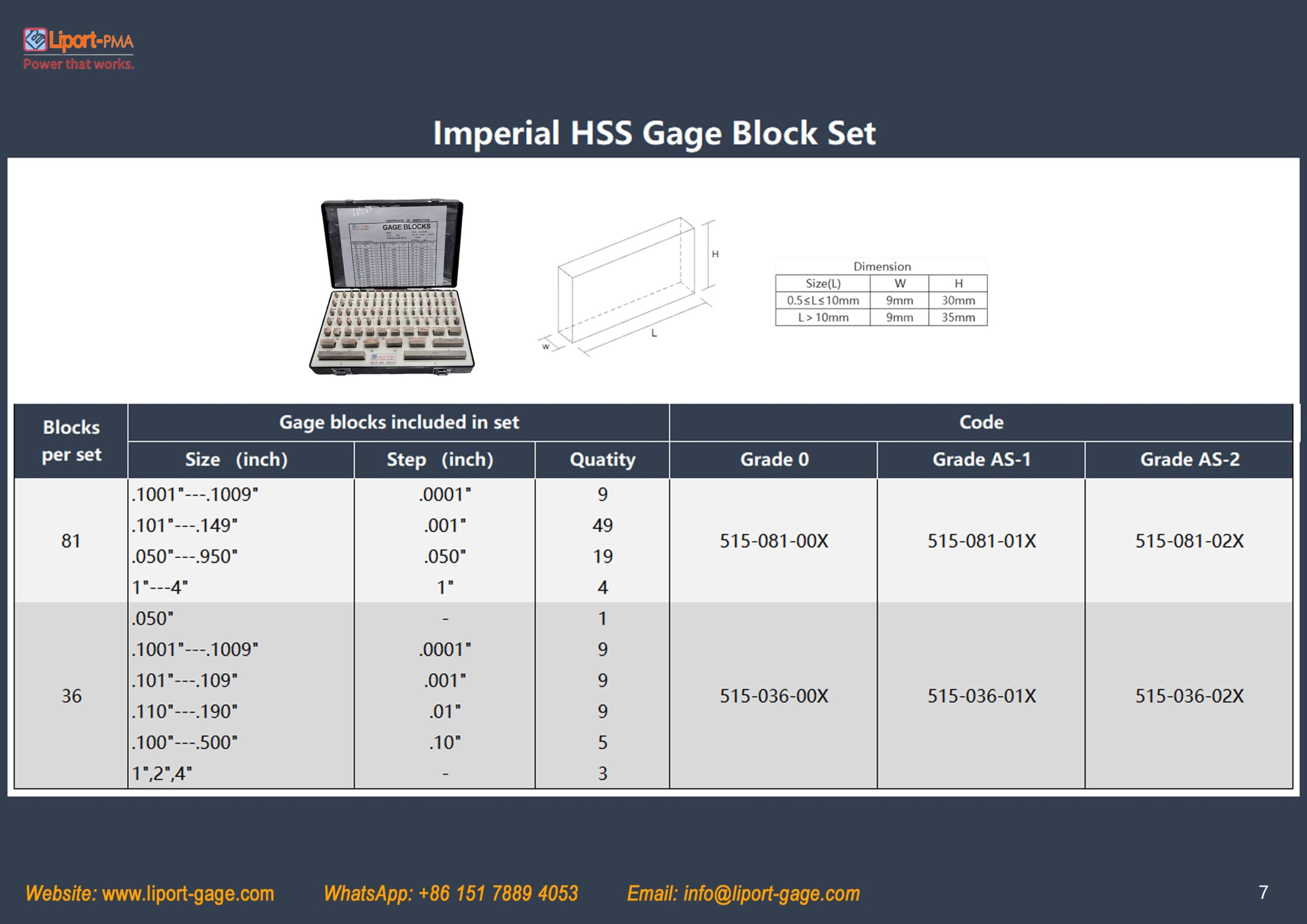

Modles of Steel Gage Block Set—Inch
If the above models fail to cover your requirements, don’t worry.
Click Here to get an accurate quotation.

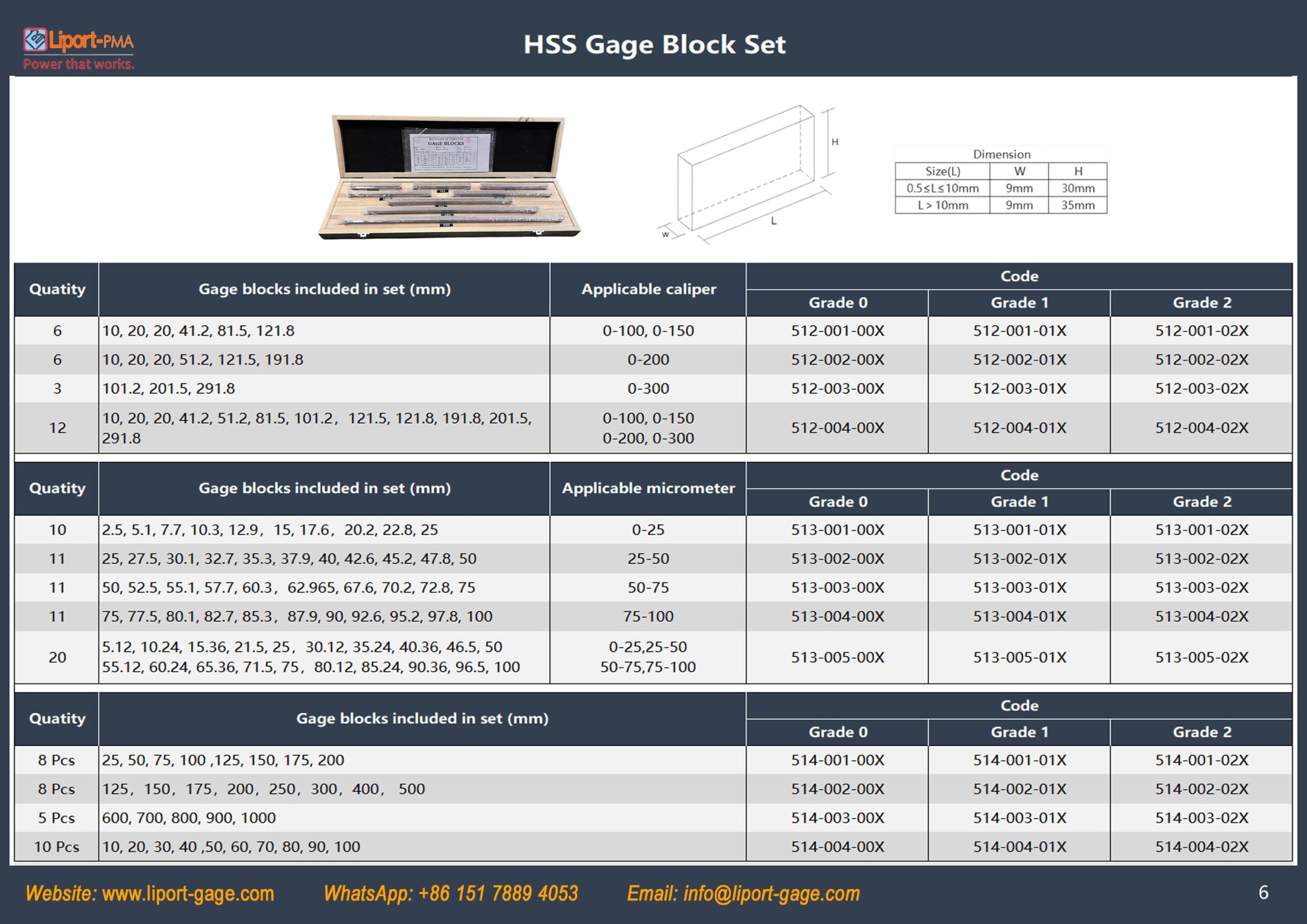

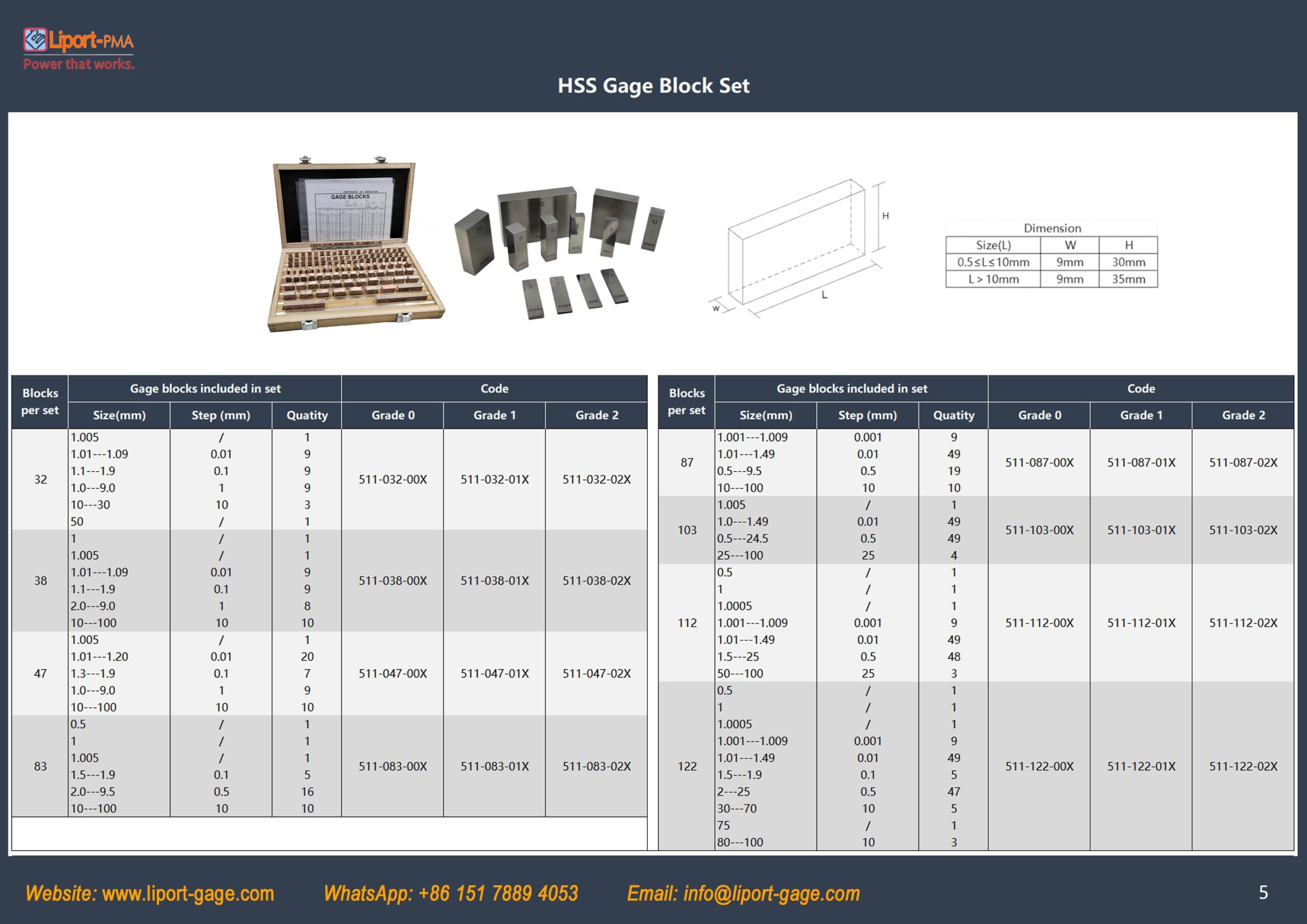

Modles of Steel Gage Block Set—Metric
If the above models fail to cover your requirements, don’t worry.
Click Here to get an accurate quotation.
Features:
- Steel rectangular and square gauge block sets are used as a reference for the calibration of measuring equipment like micrometers, sine bars, calipers, and dial indicators.
- All gauge block sets are assigned serial numbers and are accompanied with a certificate of inspection listing the deviation for each block
- It is necessary to apply antirust oil after use.
| Calibration Instrument of Gages |
|---|
| • Japan Tokyo Seimitsu Roundness Tester |
| • Germany Mahr Roundness Tester |
| • Mitutoyo Laser Scan Micrometer |
| • Switzerland Trimos Diameter Measuring Instrument |
| Mitutoyo Automatic Gauge Block Interferometer |
