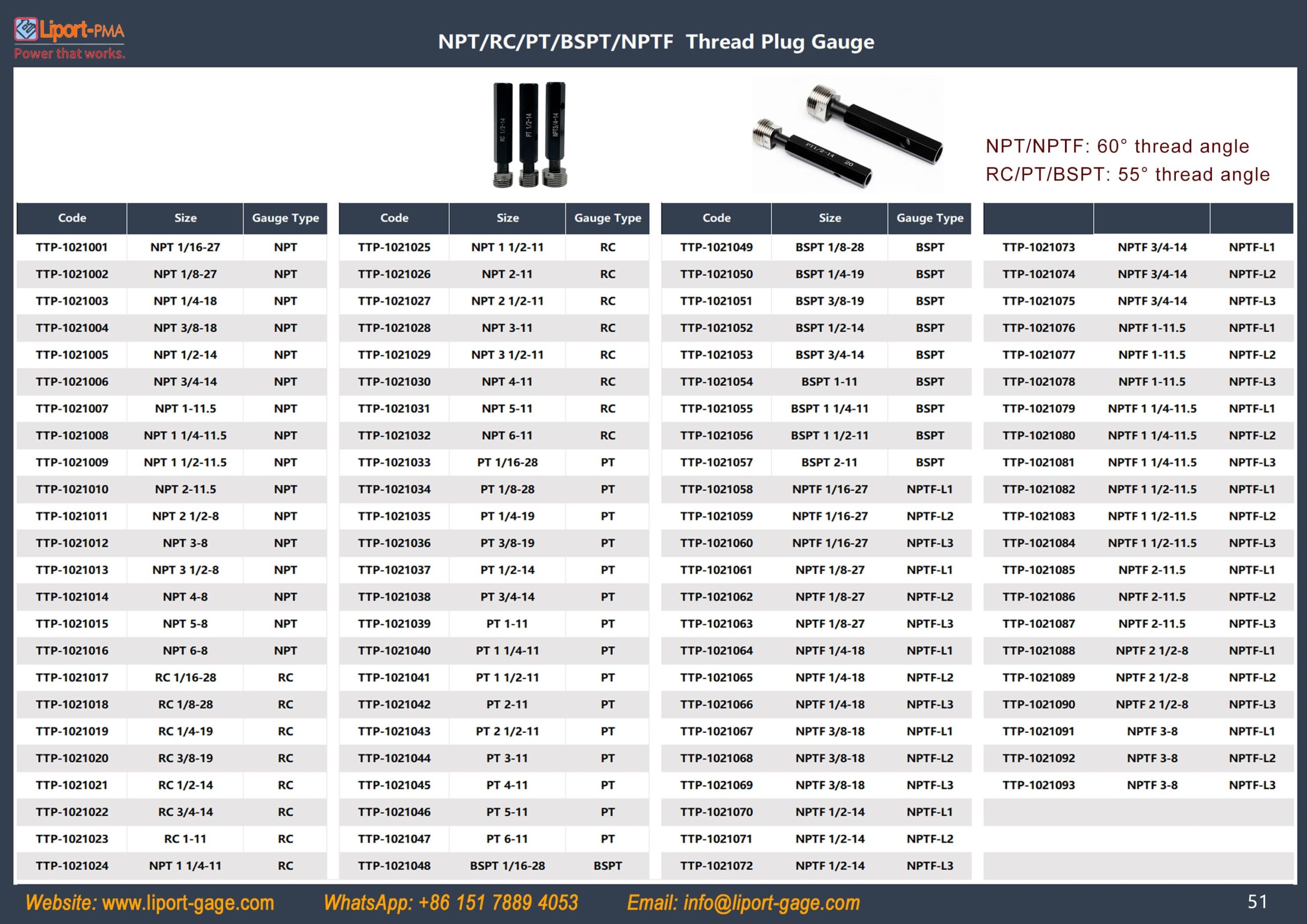

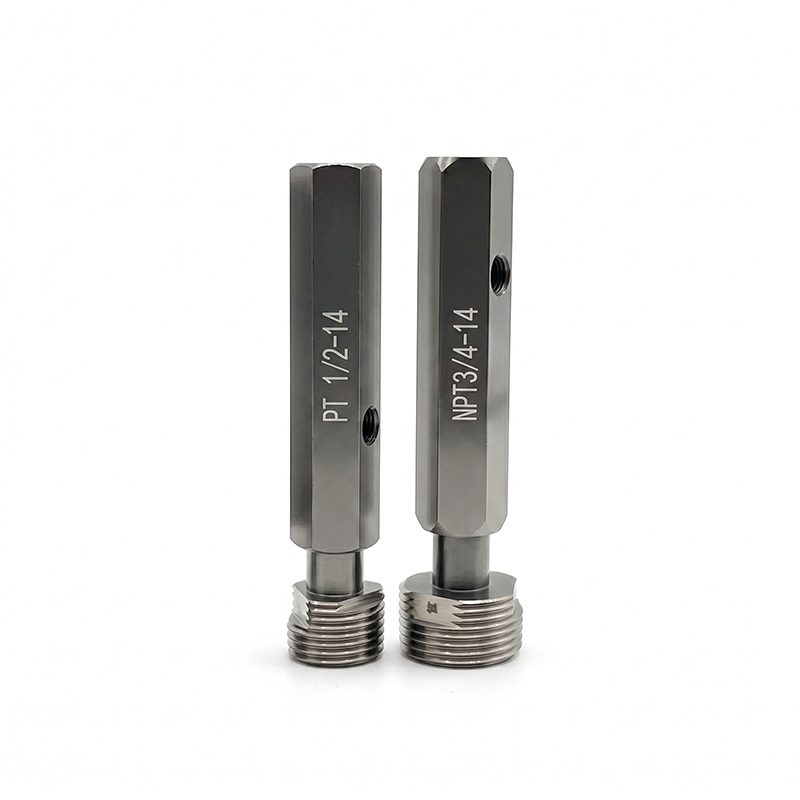

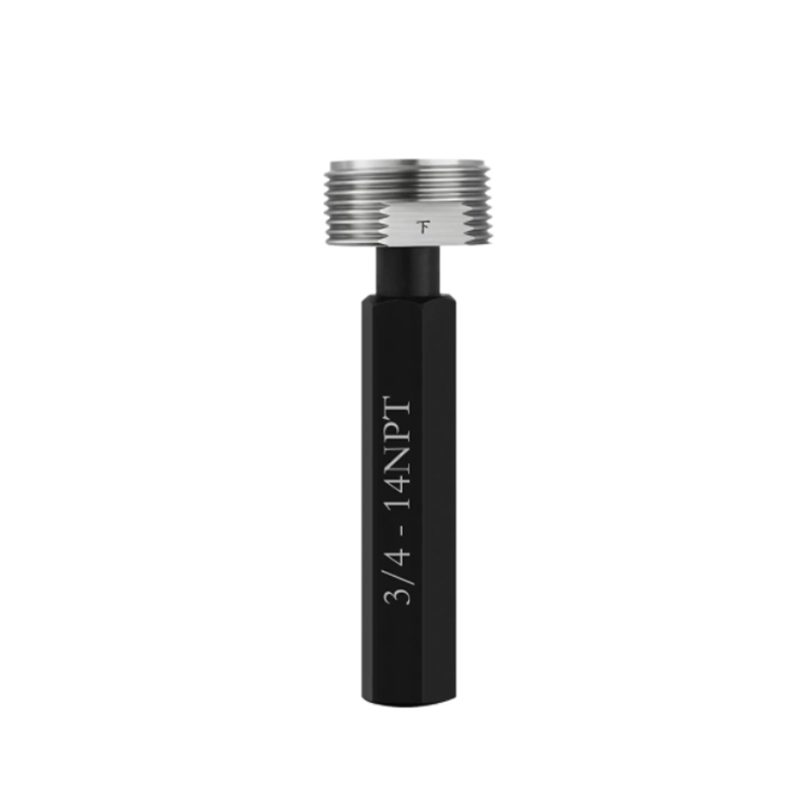

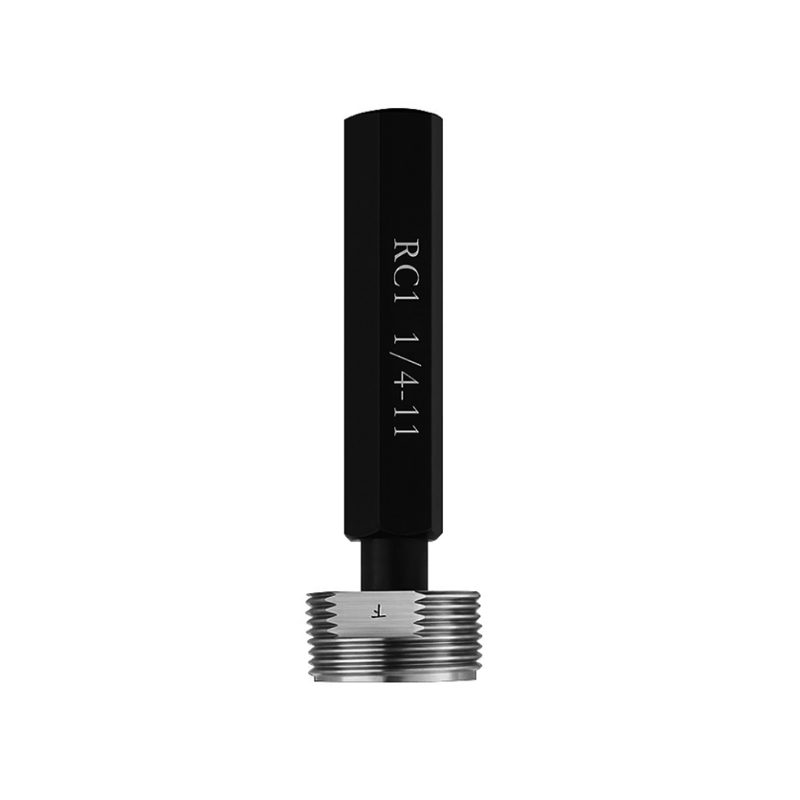

NPT/RC/PT/BSPT/NPTF Thread Plug Gauge

NPT/RC/PT/BSPT/NPTF Taper Pipe Thread Working Plug Gauges
1. Purpose
Full dimensional inspection of tapered internal pipe threads complying with global standards:
NPT/NPTF: ASME B1.20.1, ASME B1.20.3
RC/BSPT: BS EN 10226-1, BS 21
PT: JIS B 0203
2. Inspection Environment
Standard test temperature: 20℃ ±1℃, zero measuring force required.
Gauges & workpieces must be cleaned and thermally stabilized before testing. Temperature fluctuation impairs thread fit clearance and test accuracy.
3. Inspection Methods
Pitch diameter, pitch & taper angle: Three-wire measurement with length gauge and taper fixture (special taper thread wires required).
Flank angle, major/minor diameter, thread truncation & relief groove: Universal tool microscope with rotary stage.
Limit marks, reference plane & sealing engagement length: Optical comparator.
4. Usage Instructions
Only fully calibrated certified plug gauges are valid for testing, complying with standard taper, thread profile, tolerance and 3-mark specifications.
To avoid acceptance disputes, unified calibrated reference gauges are recommended for all parties. If unavailable, follow wear rules below:
A. Gauge Wear Matching Rule
Manufacturer QC: New/slightly worn Go gauges + No-Go gauges near wear limit
Inspector/Buyer QC: Go gauges near wear limit + new/slightly worn No-Go gauges
B. Go (T) Plug Gauge Judgment (3 engraved marks: Upper Limit / Reference Plane / Lower Limit, 1 pitch apart)
Full-profile taper thread controls effective pitch diameter & sealing depth:
Hand-tighten gauge straight into thread without extra force until seated.
Accept: Workpiece end face sits between upper and lower limit marks; flush with reference plane is ideal.
Reject: End face over upper mark (oversized pitch diameter); end face under lower mark (poor sealing).
C. No-Go (Z) Plug Gauge Judgment (no reference marks)
Short truncated thread limits maximum pitch diameter:
Hand screw gauge straight into internal thread with no extra force.
General rule: Max 2 fully engaged pitches; ≥3 full engaged pitches = out of tolerance (reject).
Exception: If workpiece total effective thread ≤2 full pitches, full No-Go engagement is acceptable.
D. Pass Standard
Internal taper pipe thread qualifies only if it meets both Go gauge mark range and No-Go pitch limit with calibrated compliant gauges.
