Spline Plug & Ring Gauge

Simple Description:

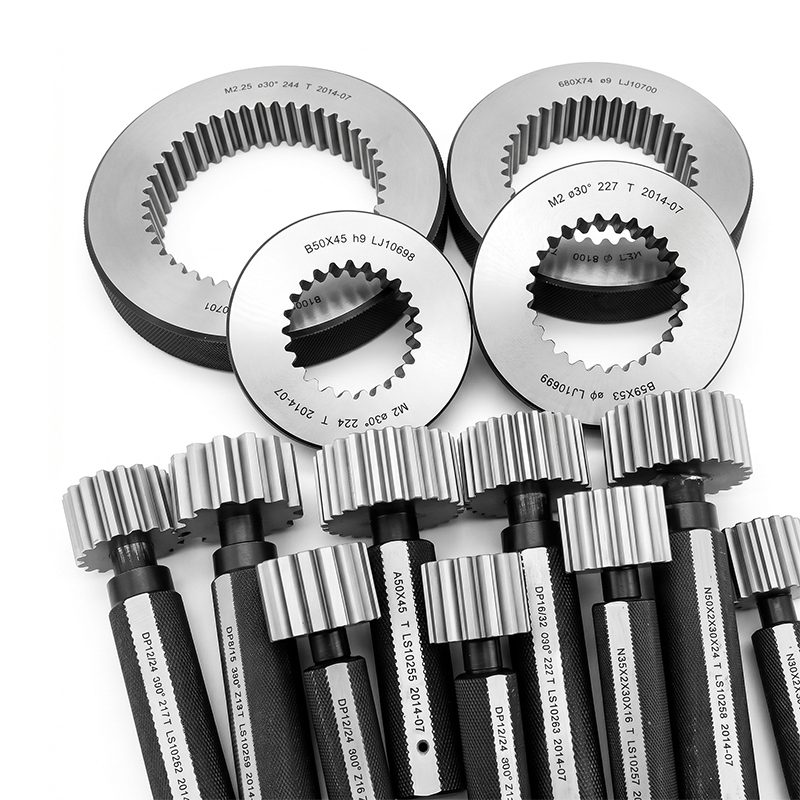

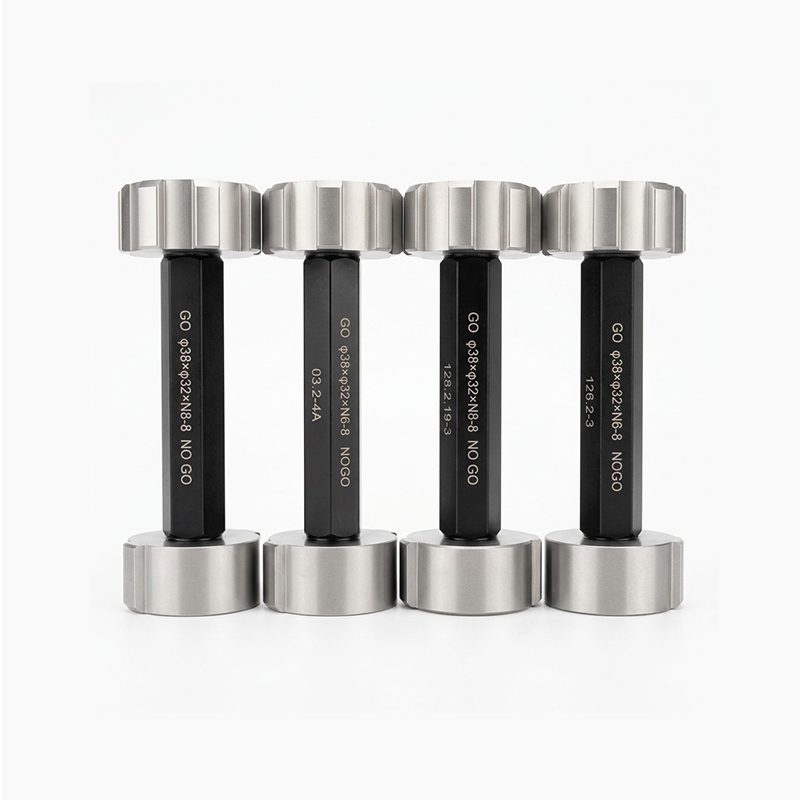

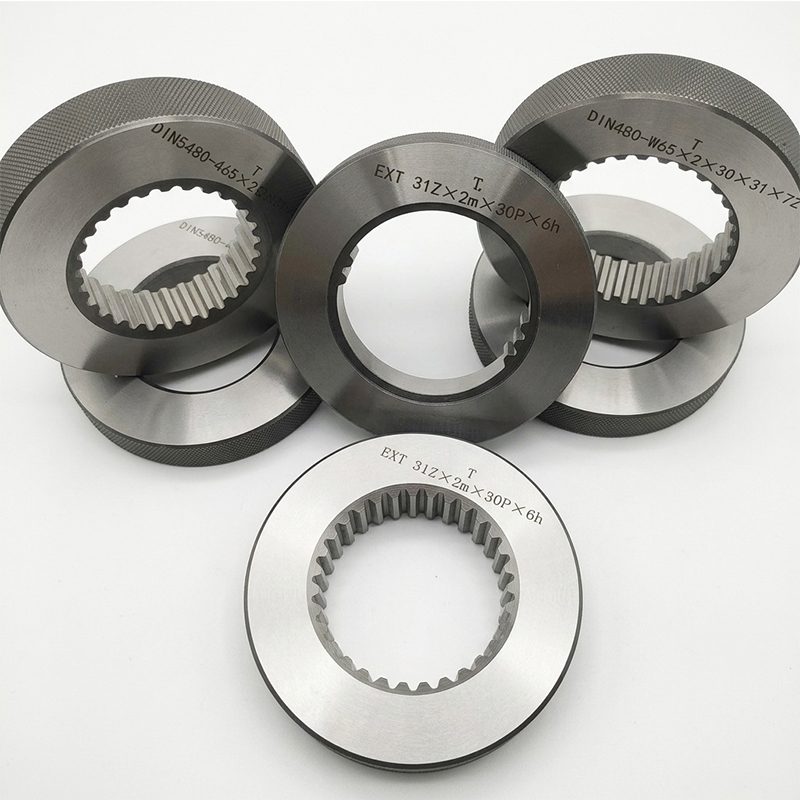

1. Usage: Spline go/no-go plug & ring gauges for internal and external spline inspection.
2. Types & Standards: Rectangular and involute splines, complying with DIN5480, DIN5481, DIN5482, GB3478, JIS D2001, ANSI92.1/92.2, SAEJ498B, BS3550. Non-standard gauges are available.
3. Customization: Tooth count, module, pressure angle and dimensions made to order.
4. Material: GCr15 steel, heat-treated, high wear resistance & stable precision.
5. Lead Time: 3-5 days standard, 6-12 days complex
