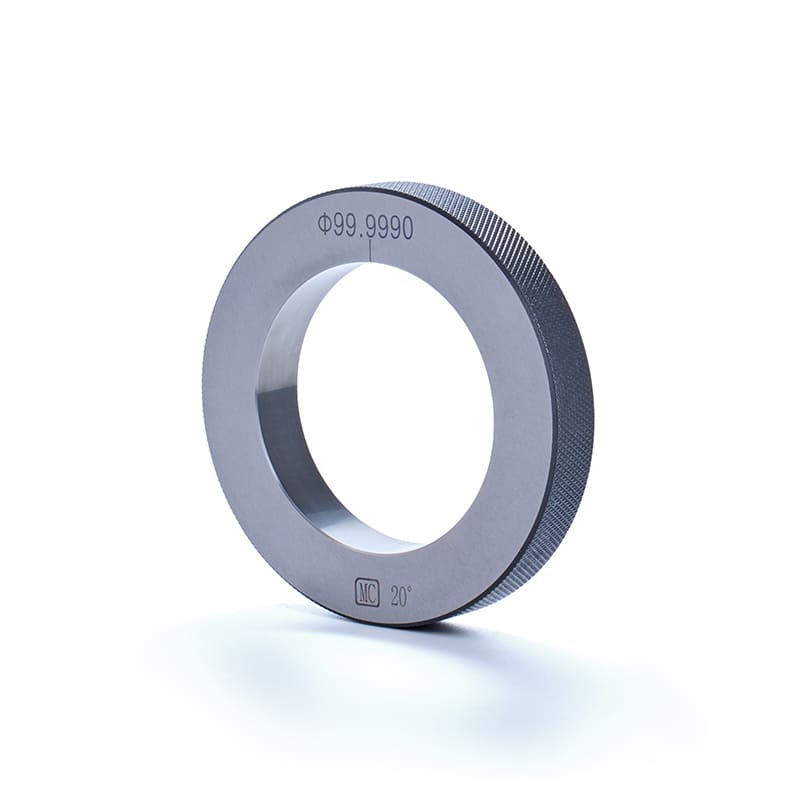

plain_ring_gage_1

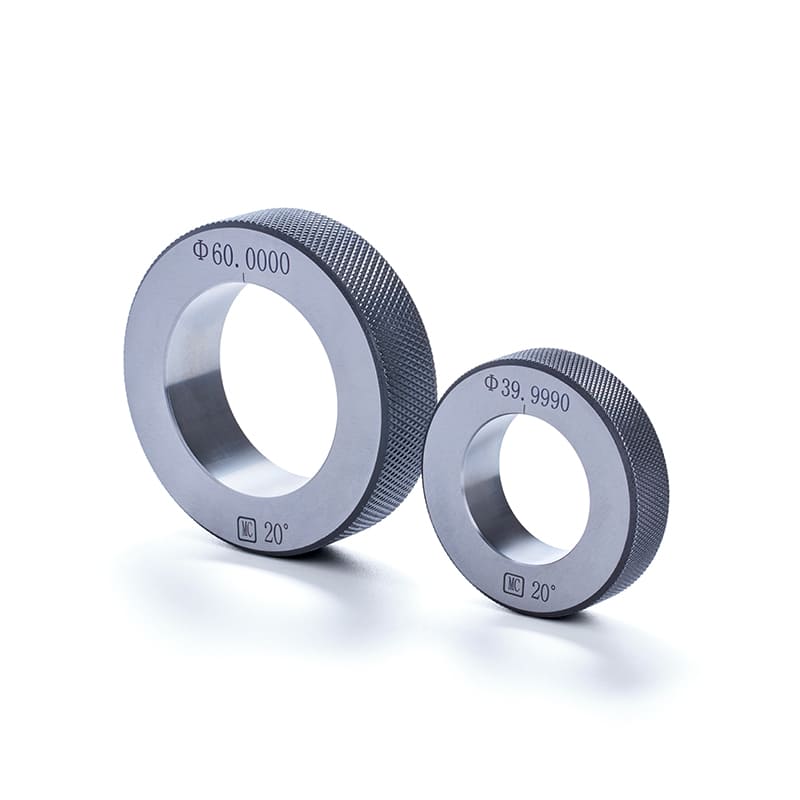

plain_ring_gage_2

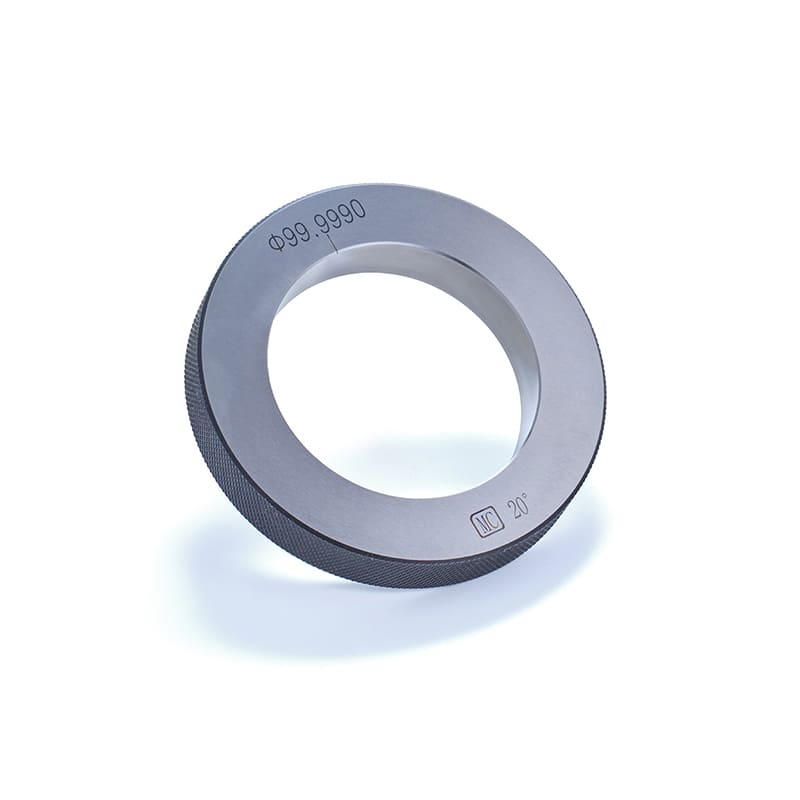

plain_ring_gage_3

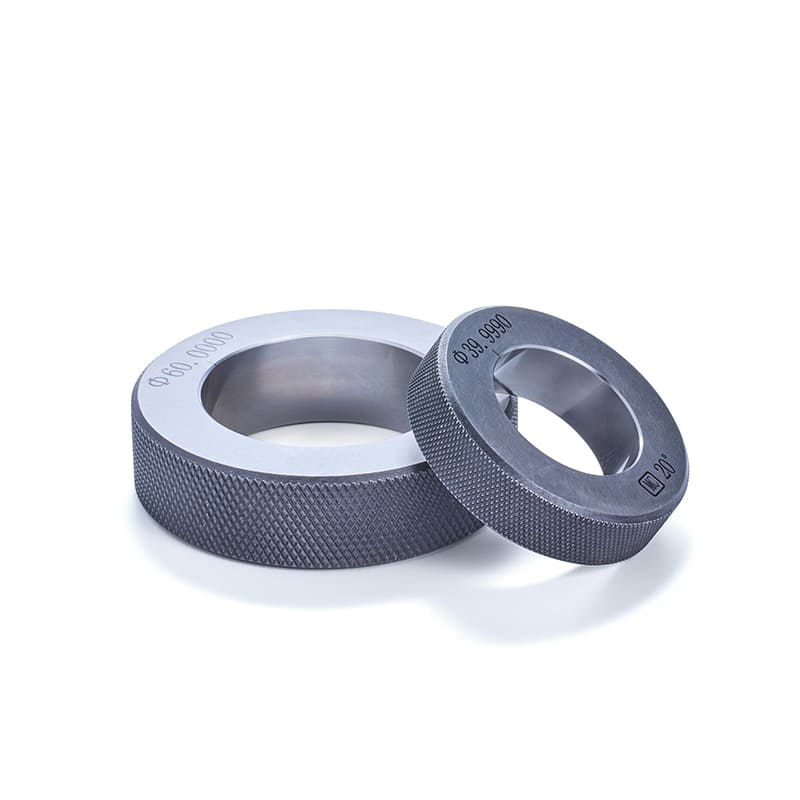

plain_ring_gage_4

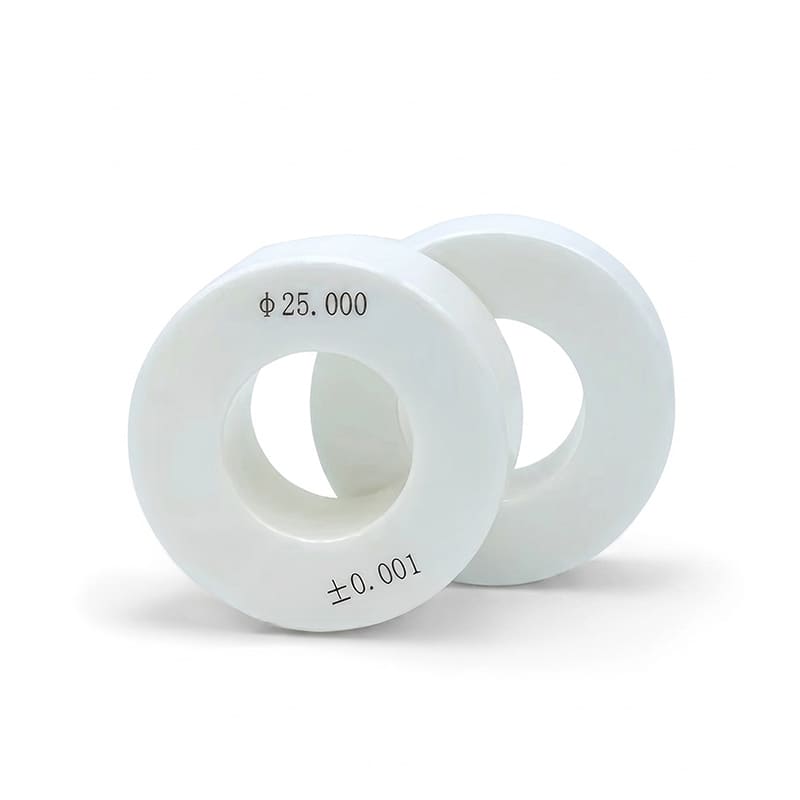

plain_ring_gage_5
plain_ring_gage_1
plain_ring_gage_2
plain_ring_gage_3
plain_ring_gage_4
plain_ring_gage_5

Setting Ring Gauge

Simple Description:

  • For zero setting of inside micrometers, three pointsinternal micrometers and bore gages
  • Material Options: GCr15, Industrial Ceramic, Tungsten Carbide
  • Size difference (difference between the ordered size andthe size marked on the setting ring when supplied):For example, the ordered size is 10.00mm,the size marked on the setting ring when suppliedmay be 10.002mm

CUSTOM – MADE

  • Non-standard calibrated plain ring gauges can be ordered according to the requirements of users.
  • Customized size go-nogo plain ring gauges can be provided upon request.
  • Tolerance Direction:
  • Go – Unilateral (one way) minus tolerance.
  • NoGo – Unilateral (one way) plus tolerance.
  • Master – Bilateral (split) tolerance.
Share

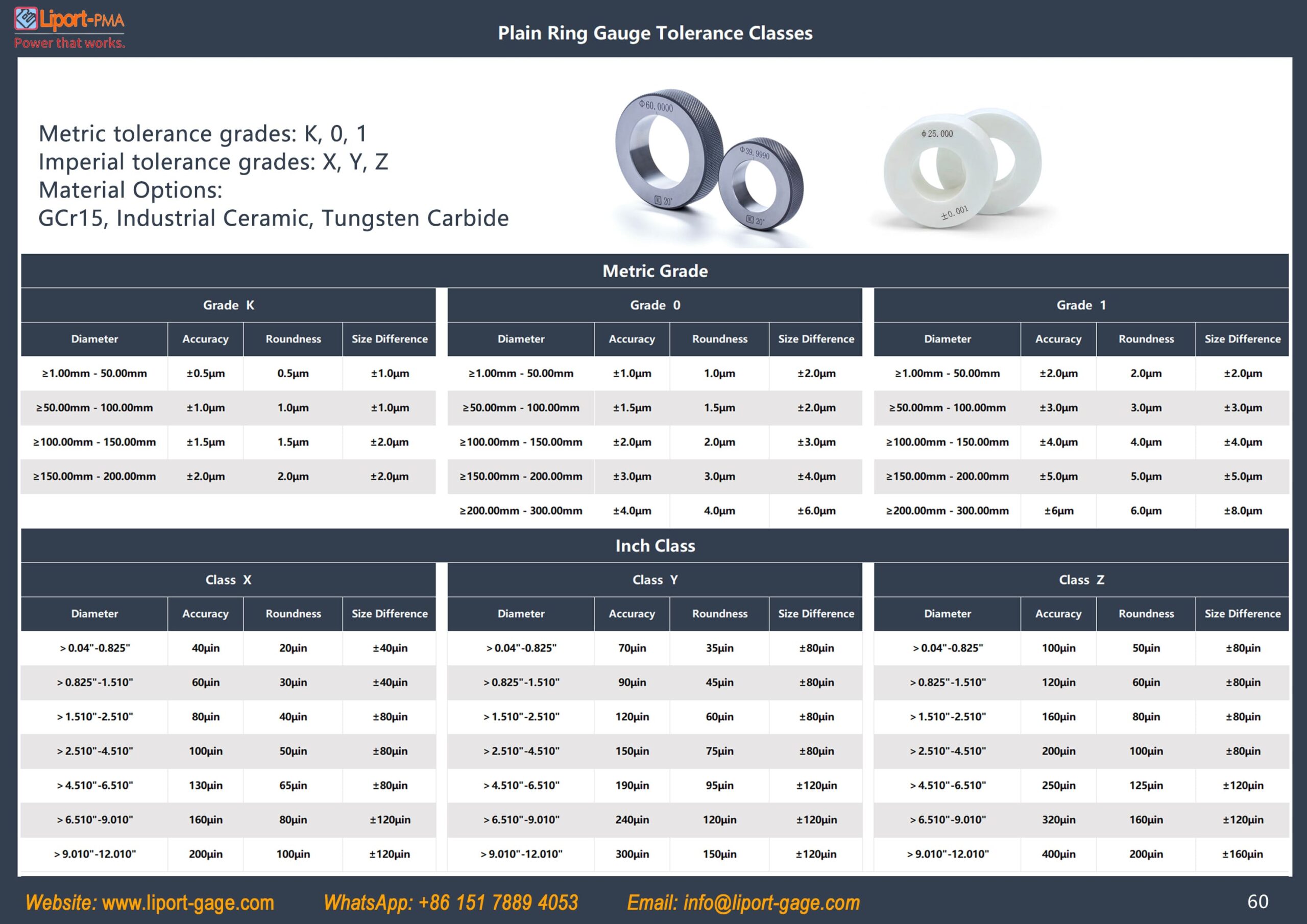

plain_ring_gage_table_1

  • Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China
  • Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use
  • Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule

calibration_certificate

plain_ring_gage_table_2

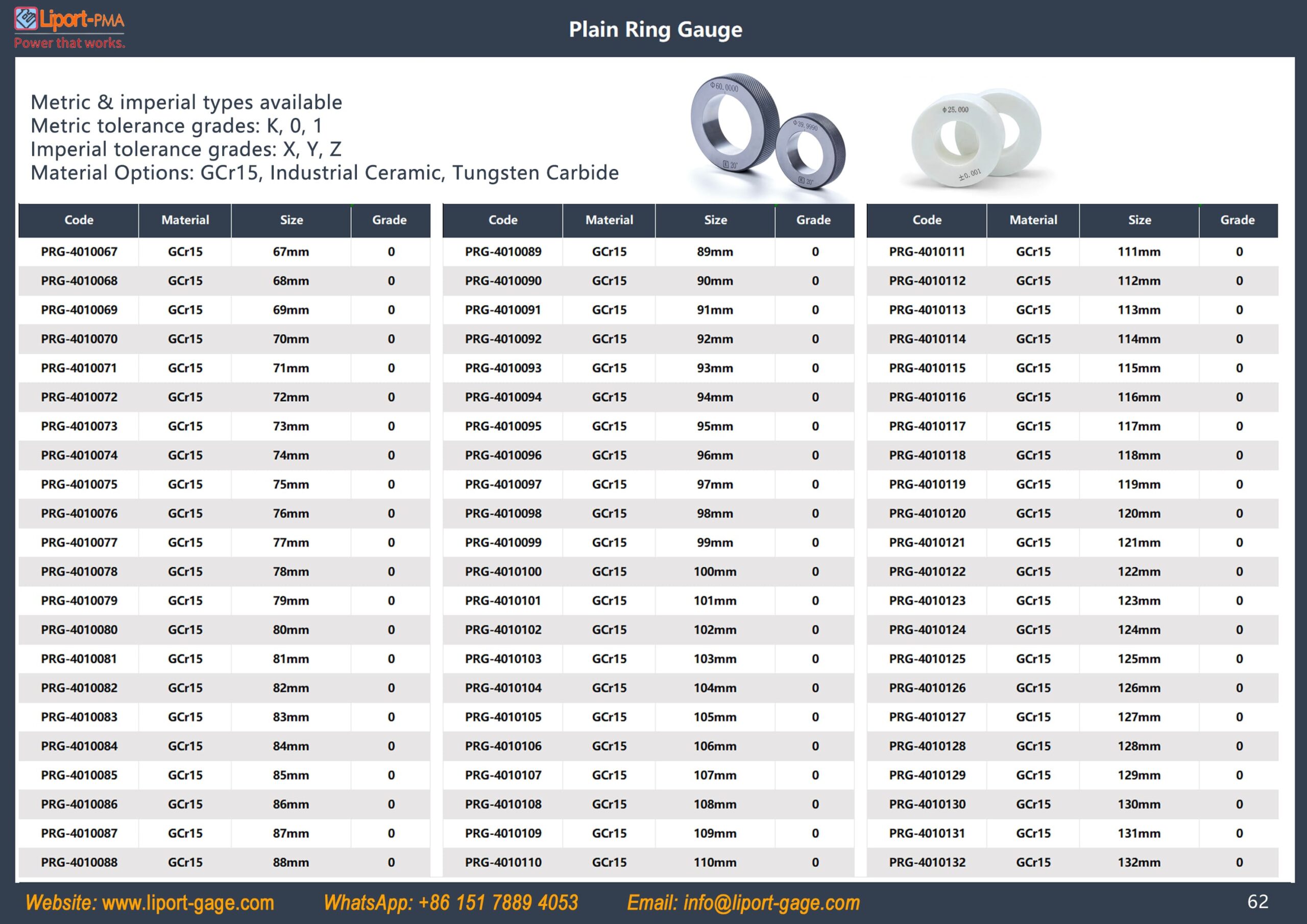

plain_ring_gage_table_3

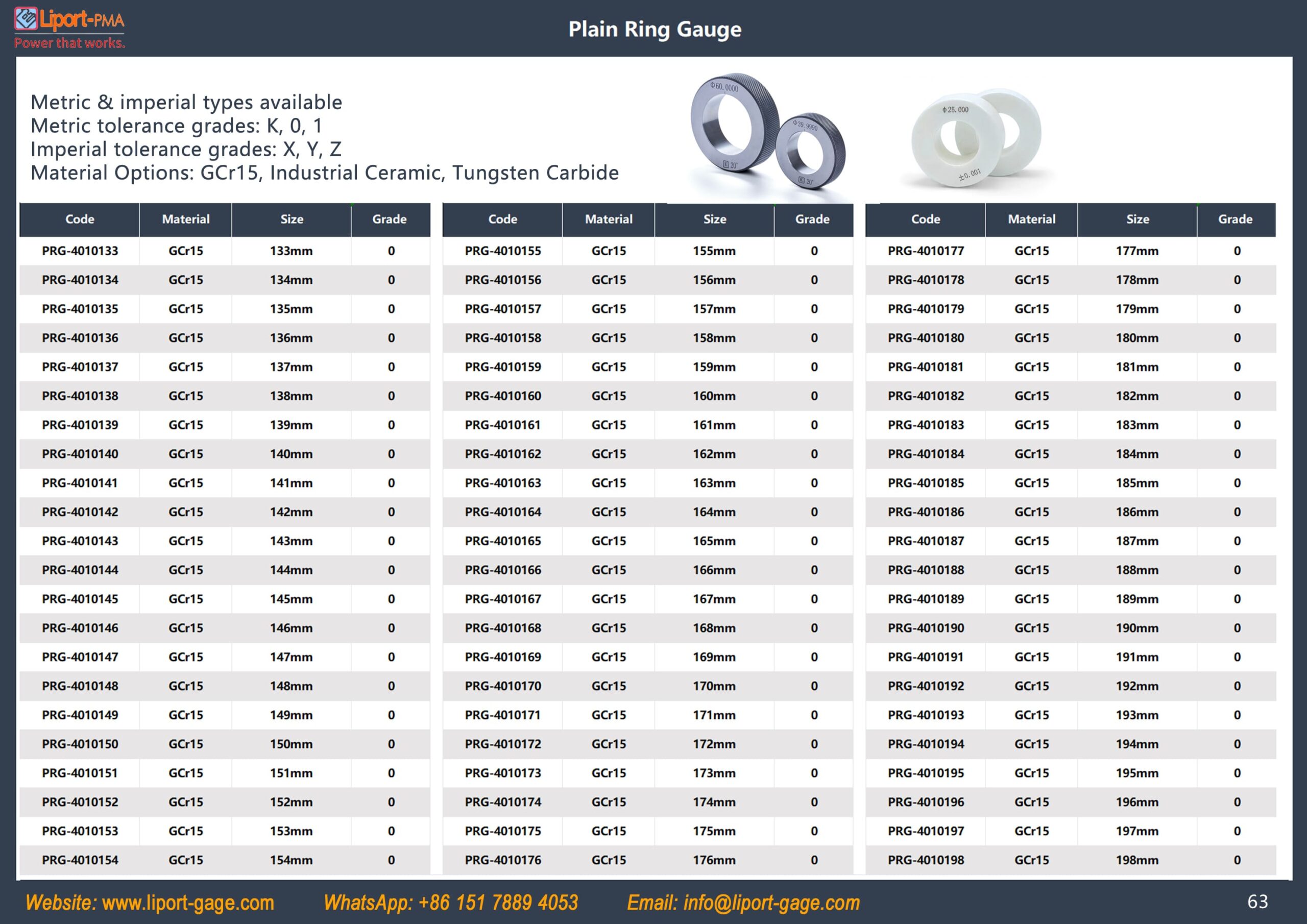

plain_ring_gage_table_4

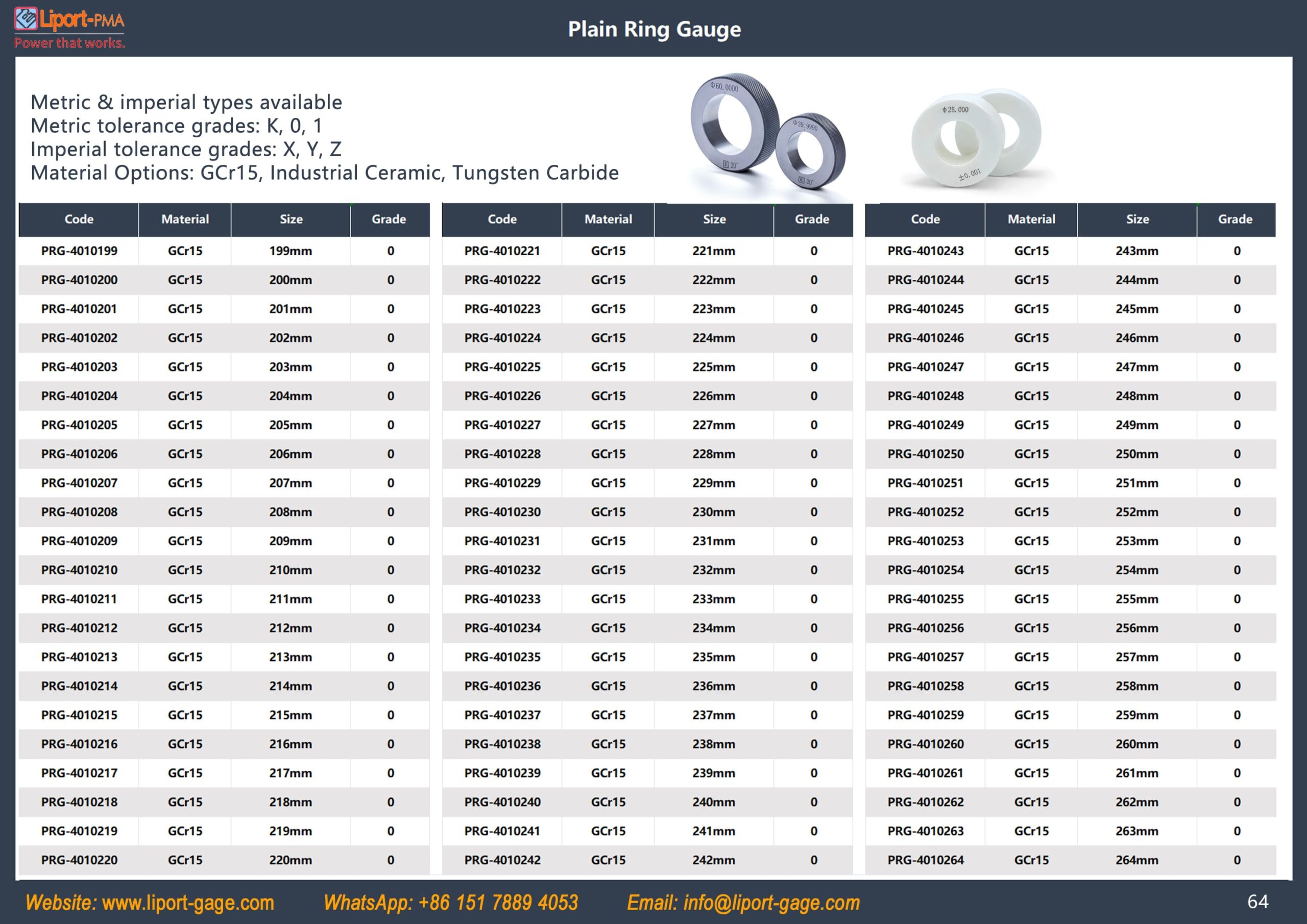

plain_ring_gage_table_5

plain_ring_gage_table_6
