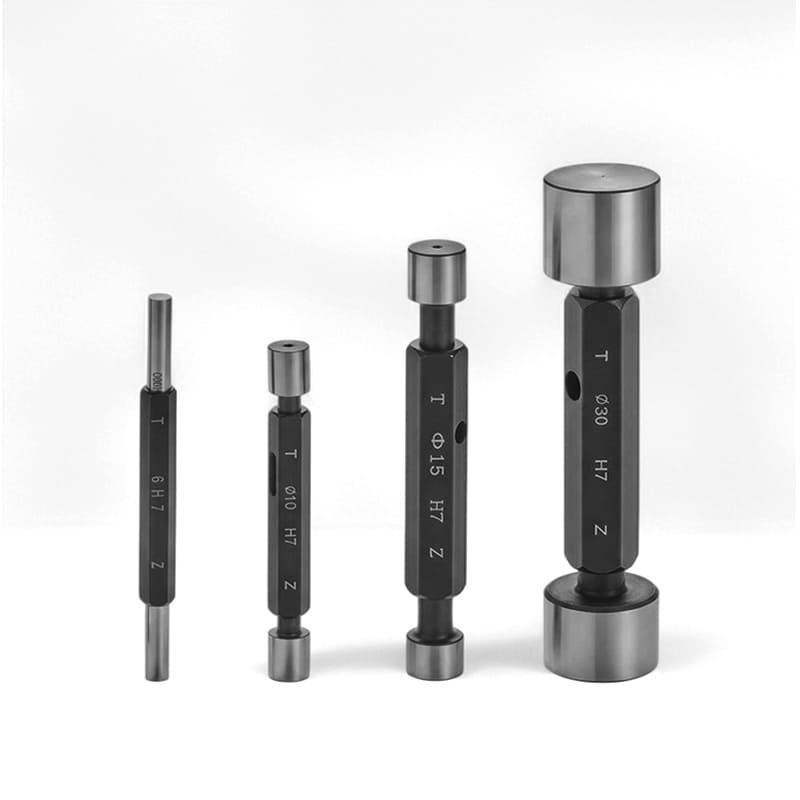

plain_plug_gage_4

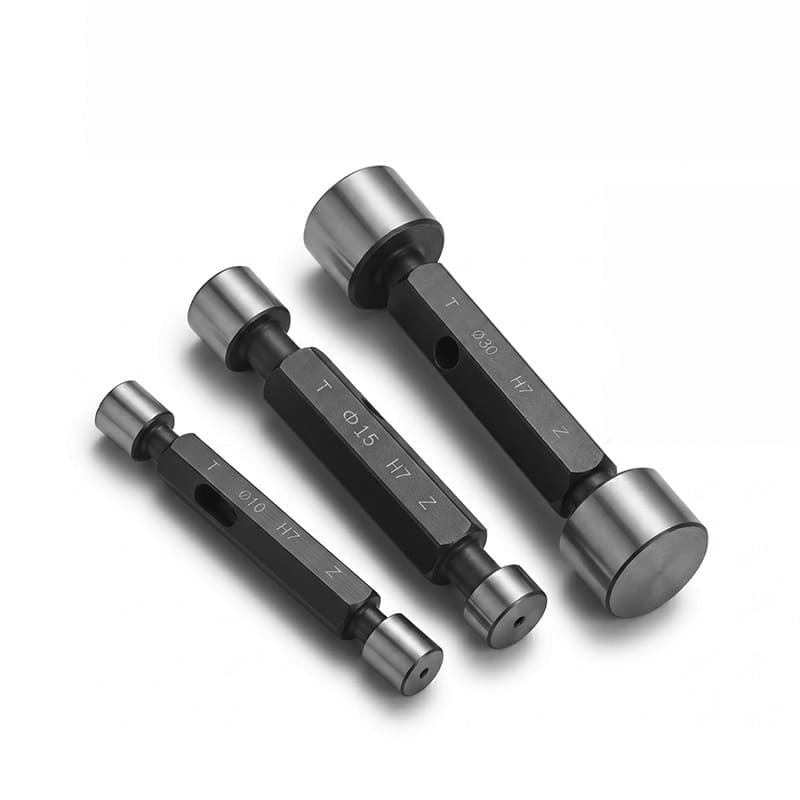

plain_plug_gage_3

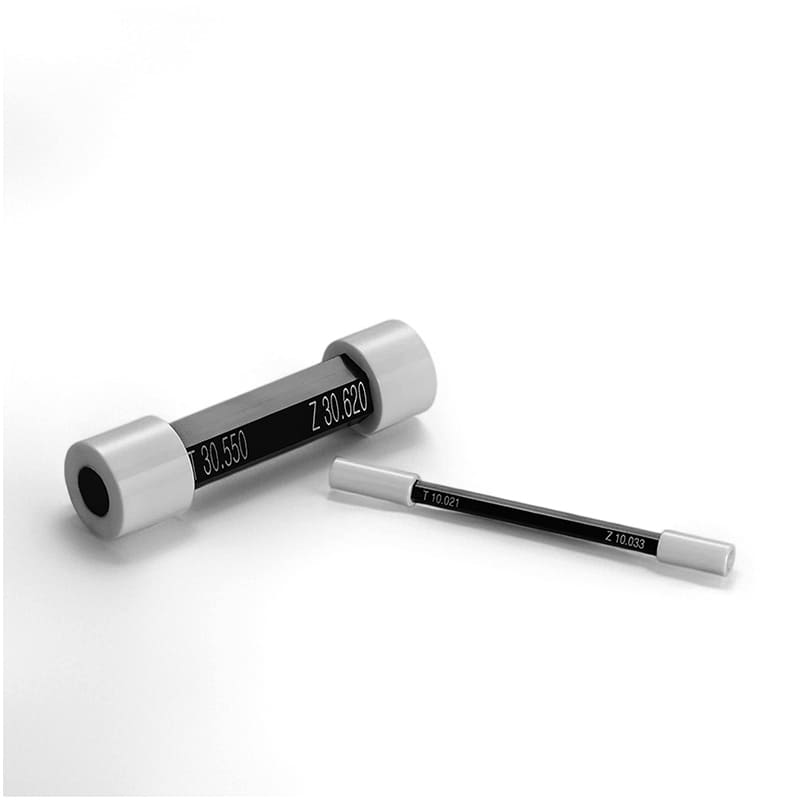

plain_plug_gage_2
plain_plug_gage_1

Plain Plug Gage

Simple Description:

  • For checking diameter holes.
  • Supplied with Go and No-Go gages together
  • Grade: H6 / H7 / H8 / H9 and etc.
  • Sizes range from 2.000mm-199.000mm
  • Material Options: GCr15, Industrial Ceramic, Tungsten Carbide

CUSTOM – MADE

  • Inch size Go NoGo plug gage with grade XX / grade X / grade Y / grade Z / grade ZZ can be provided on request.
  • Metric size accuracy : ±0.25μm / ±0.50μm / ±1.00μm / ±2.00μm / ±5.00μm
  • Special diameters are available : for example GO: 78.003mm NOGO: 78.023mm
  • Tolerance Direction:
  • Go – Unilateral (one way) minus tolerance.
  • NoGo – Unilateral (one way) plus tolerance.
  • Master – Bilateral (split) tolerance.
Share
  • Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China
  • Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use
  • Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule

calibration_certificate

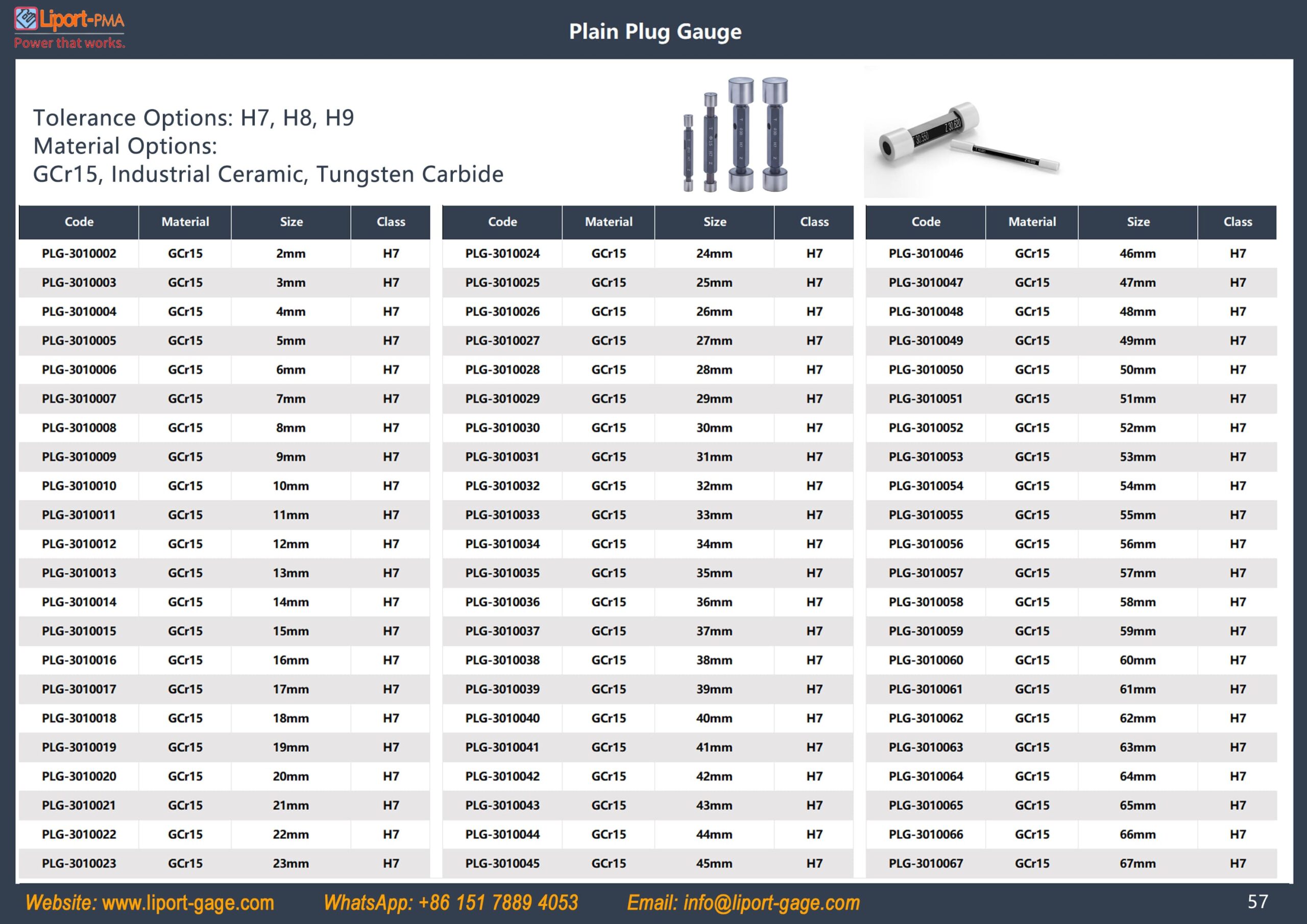

plain_plug_gage_table_1

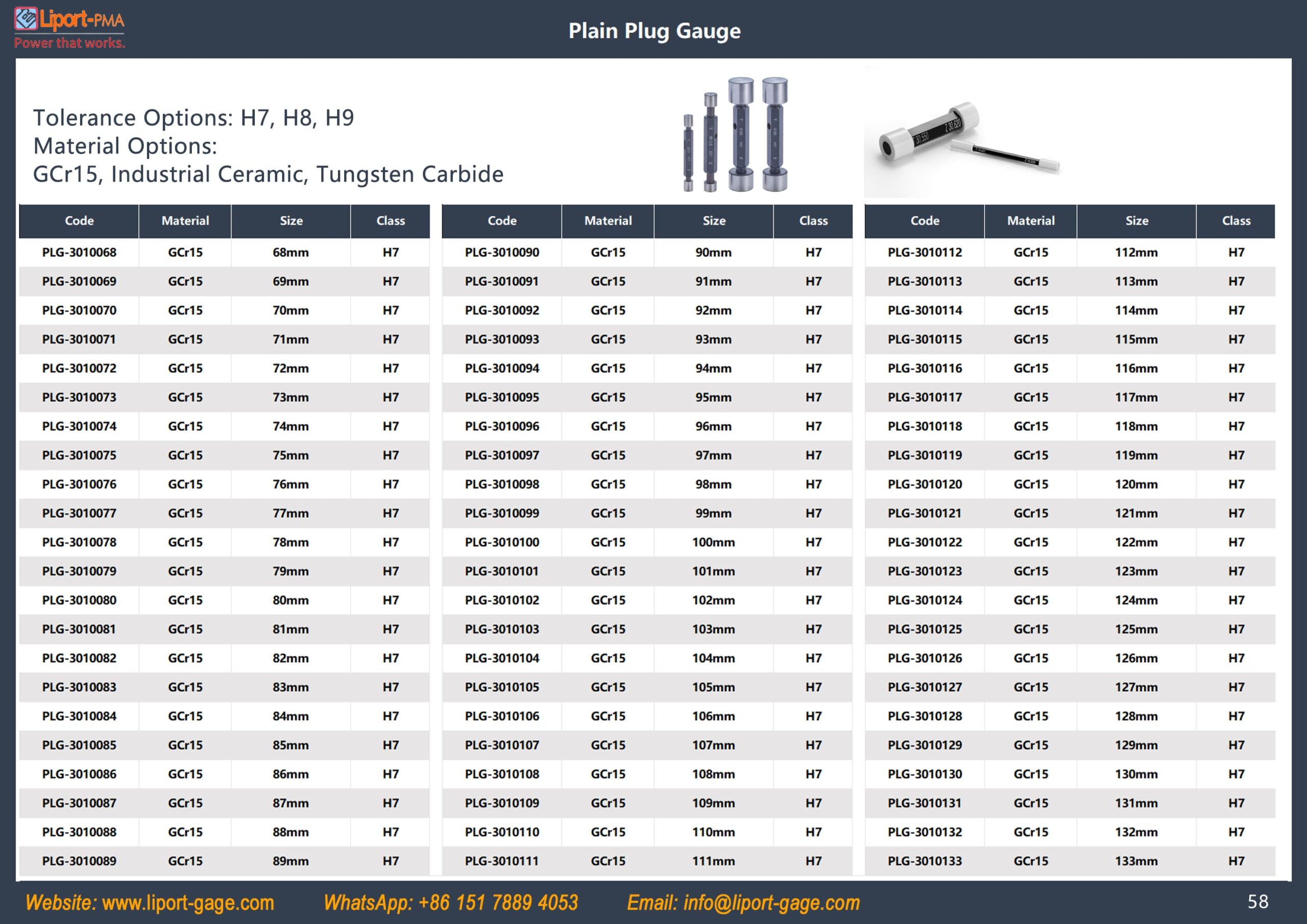

plain_plug_gage_table_2

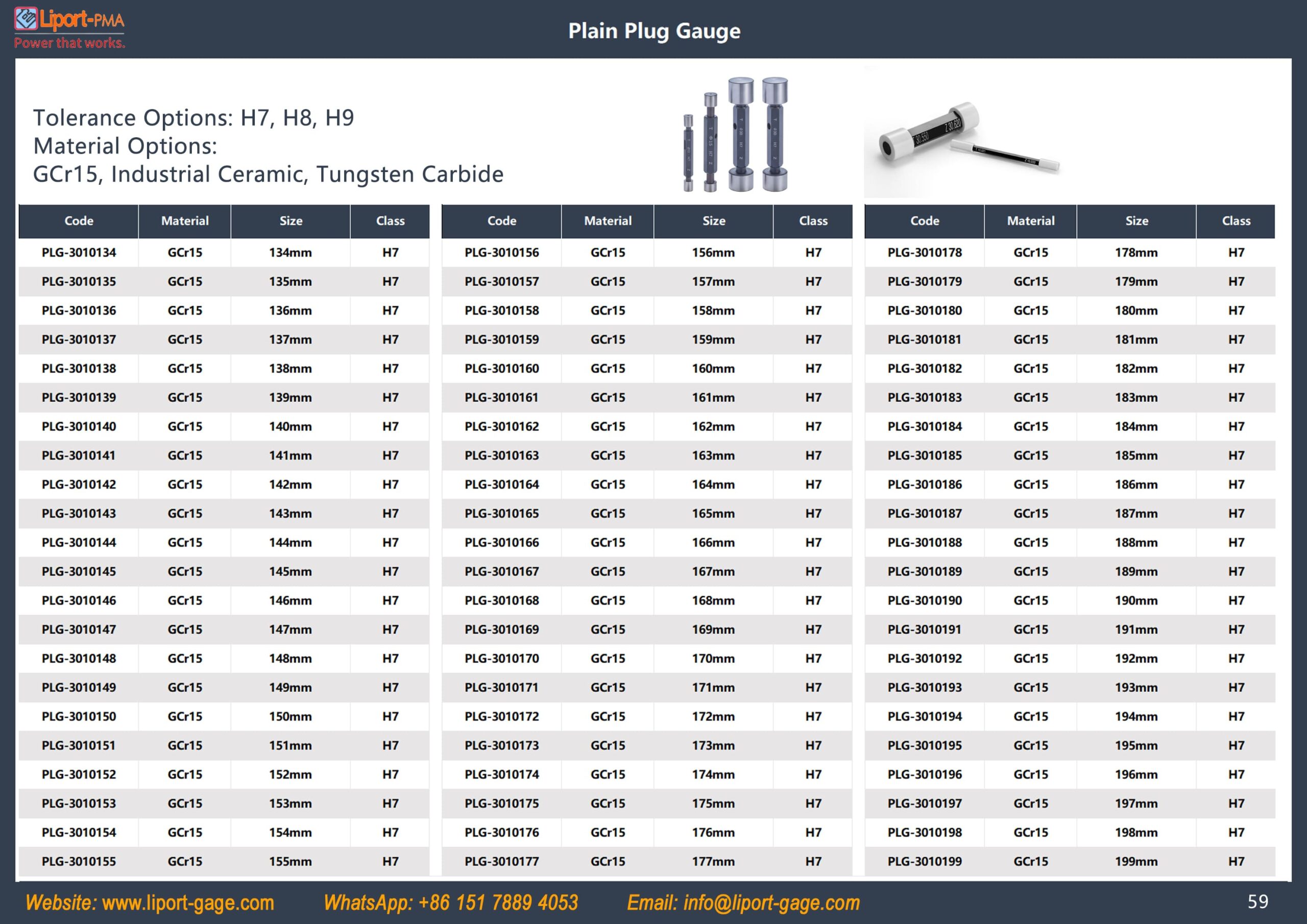

plain_plug_gage_table_3
