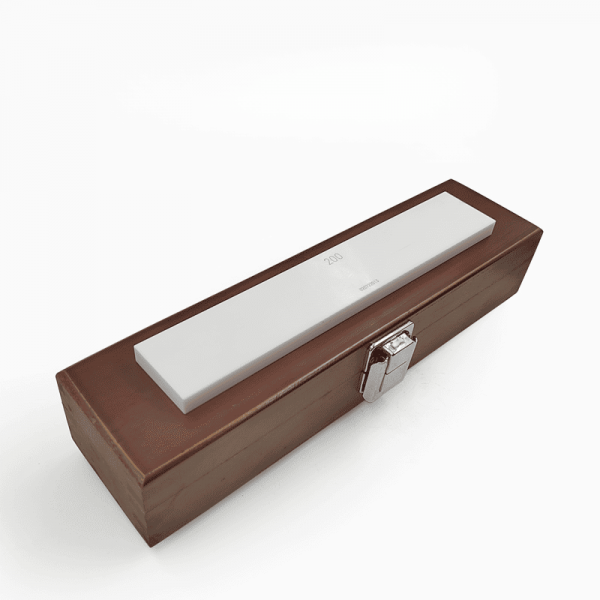

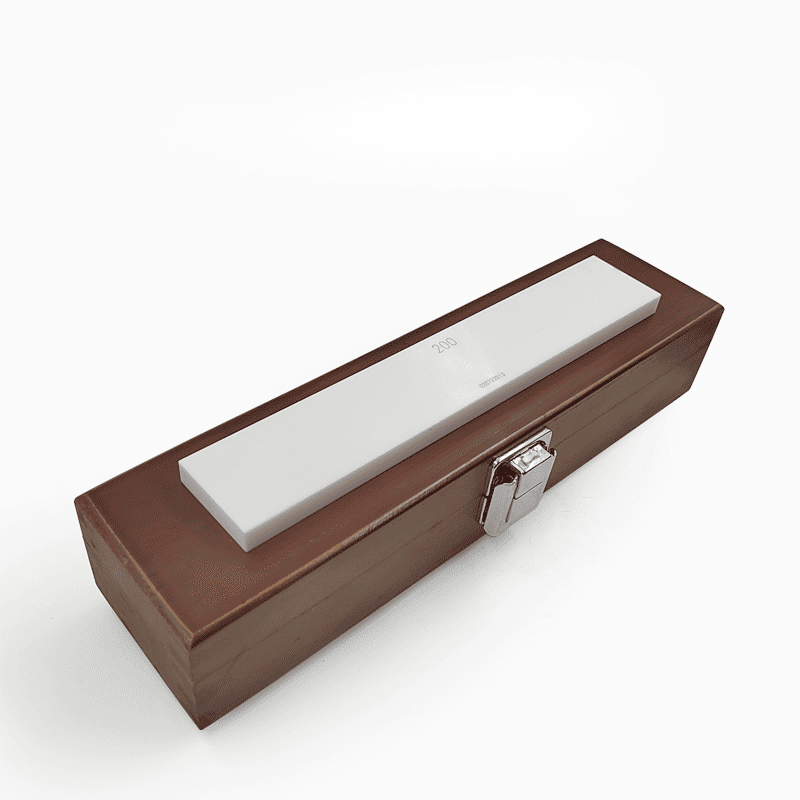

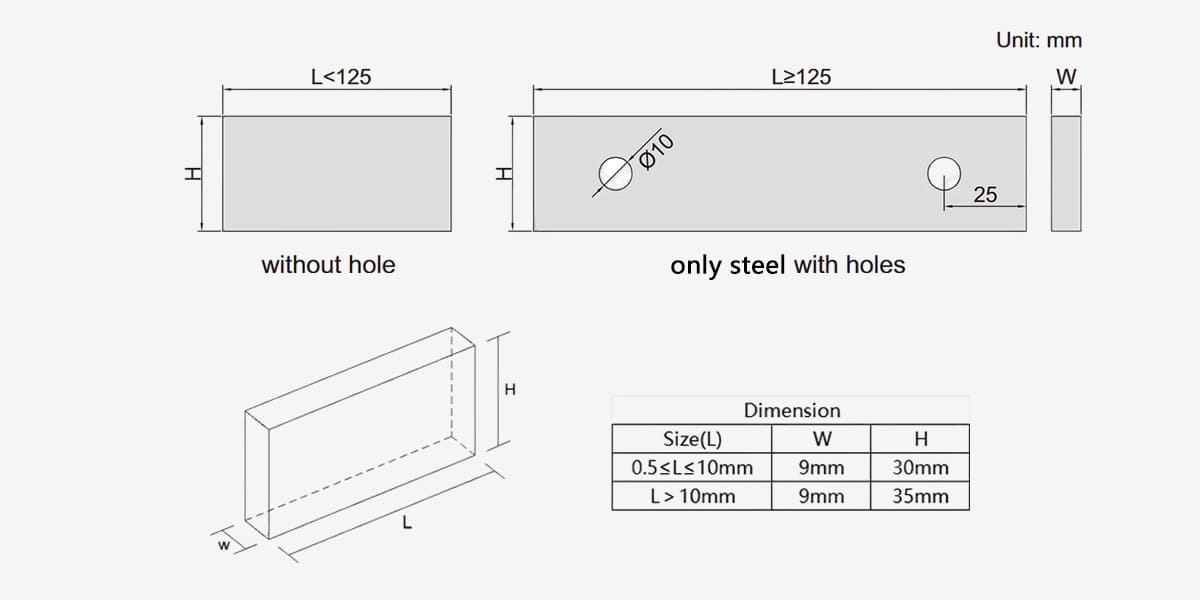

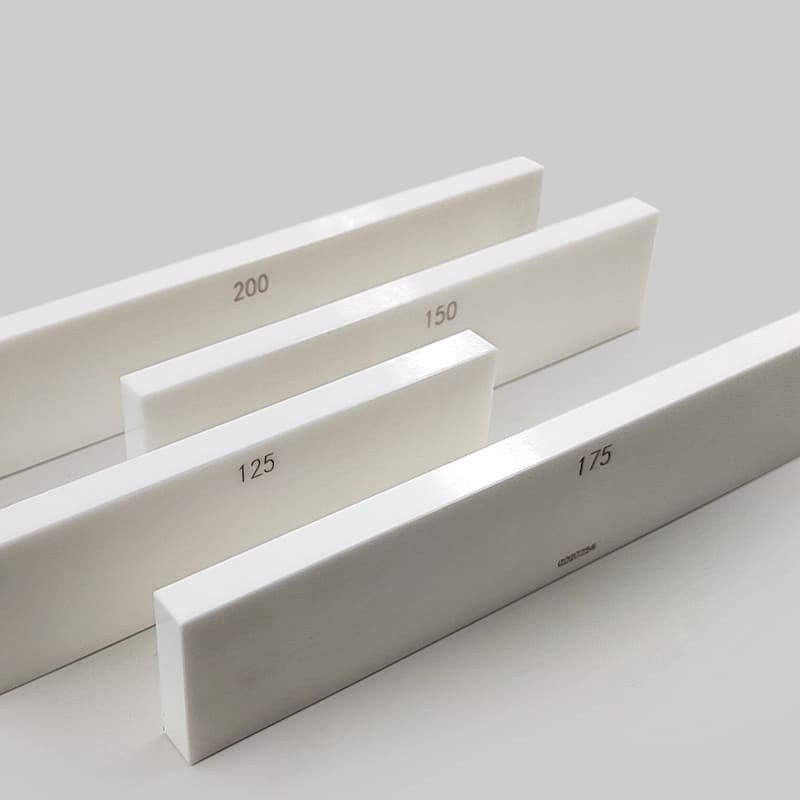

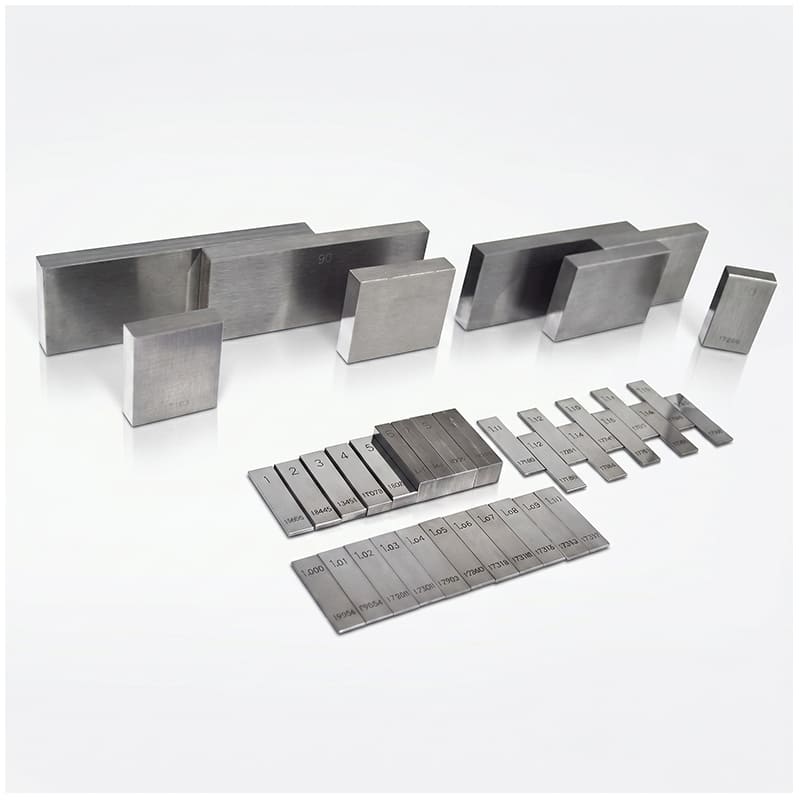

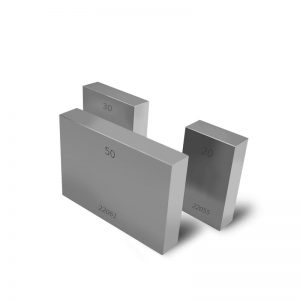

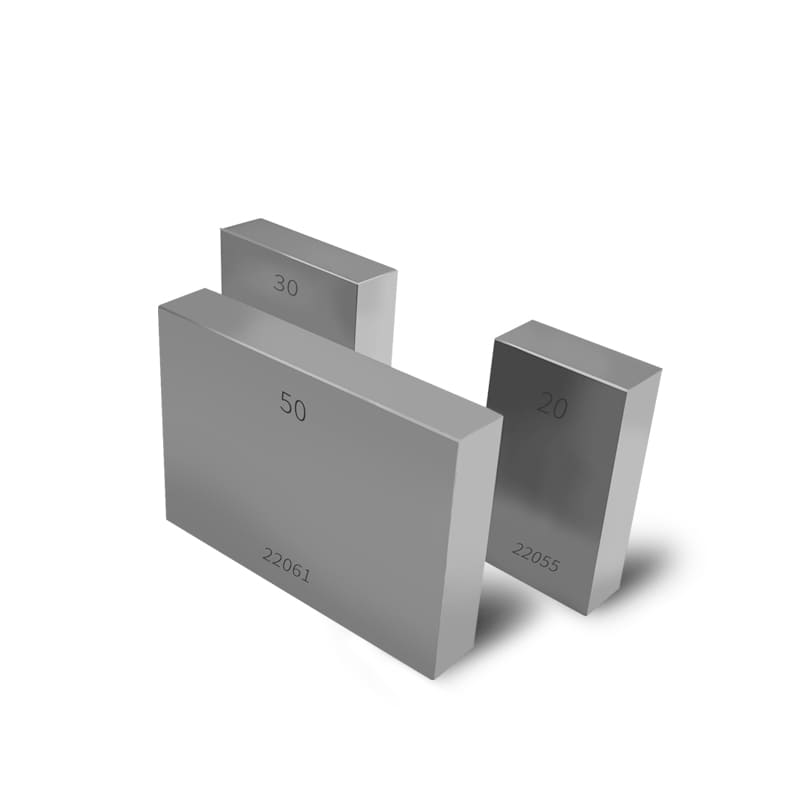

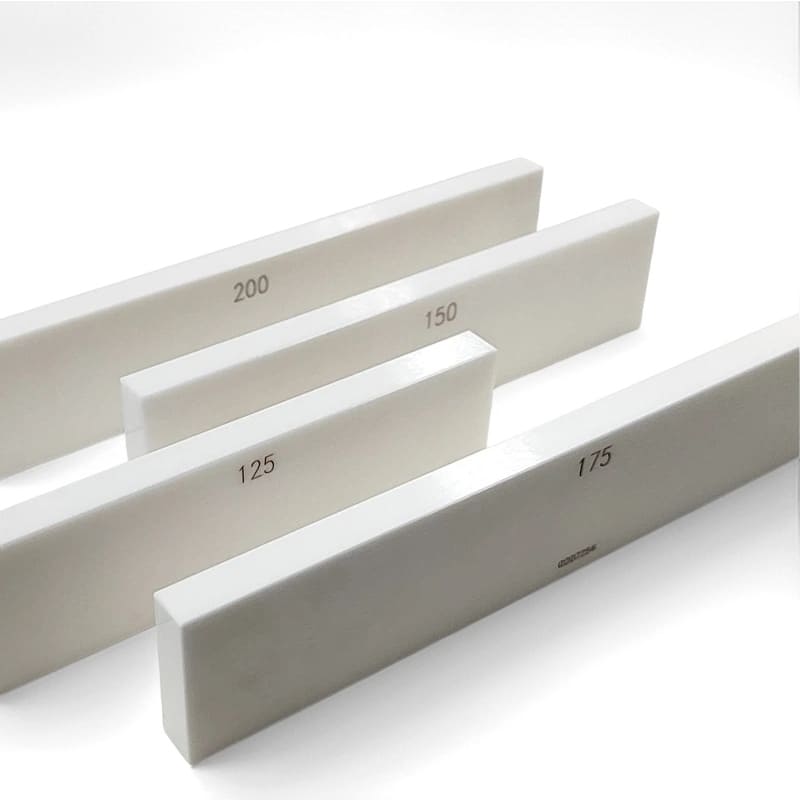

Individual Gage Block Dimension

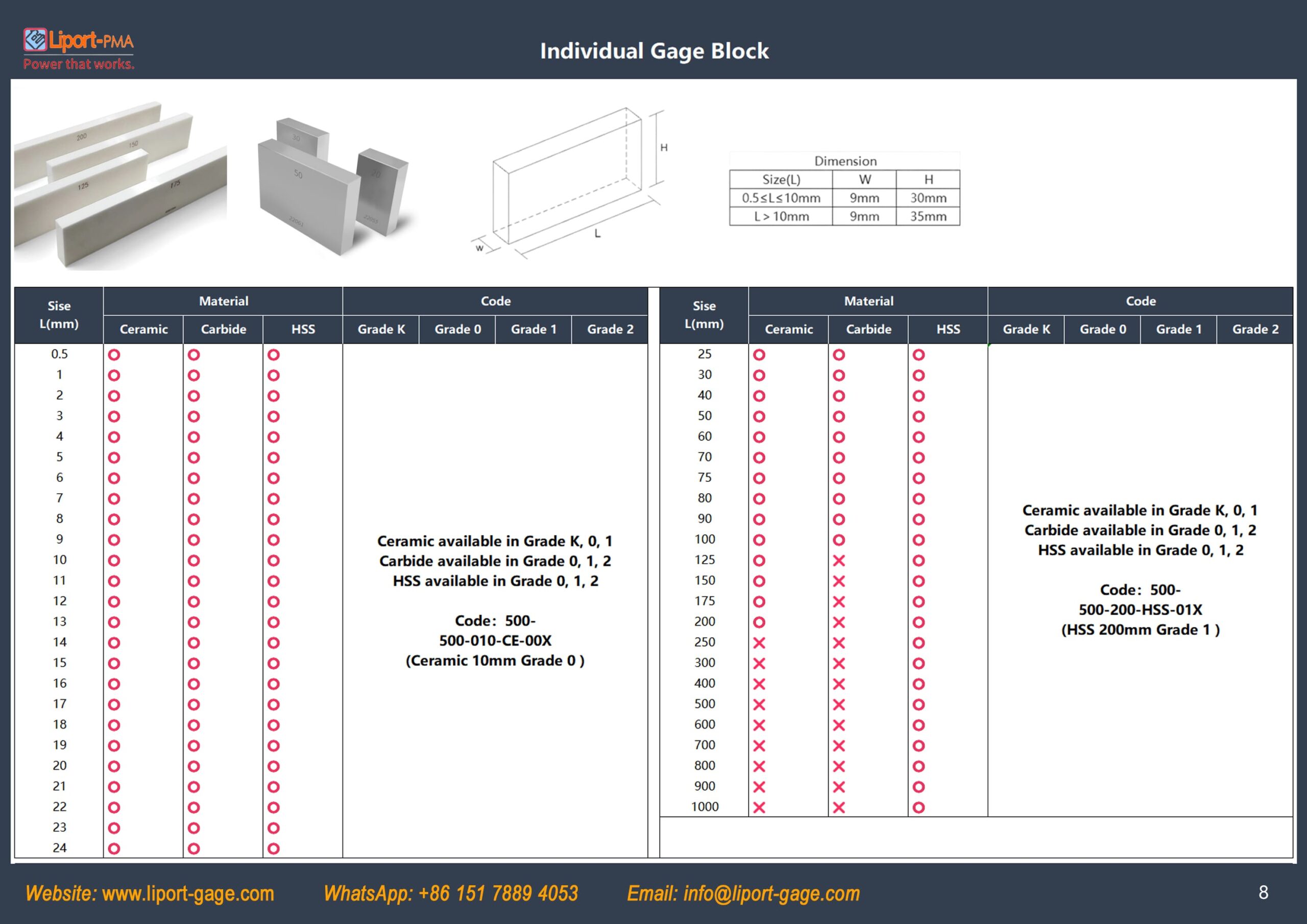

| Size （L） | Step（mm） | W | H | Ceramic | Carbide | Steel |
|---|---|---|---|---|---|---|
| 0.5 | / | 9 | 30 | √ | √ | √ |
| 1 | / | 9 | 30 | √ | √ | √ |
| 1.0005 | / | 9 | 30 | √ | √ | √ |
| 1.001-1.009 | 0.001 | 9 | 30 | √ | √ | √ |
| 1.01-1.49 | 0.01 | 9 | 30 | √ | √ | √ |
| 1.5-2.0 | 0.1 | 9 | 30 | √ | √ | √ |
| 2.5-10 | 0.5 | 9 | 30 | √ | √ | √ |
| 10.5-25 | 0.5 | 9 | 35 | √ | √ | √ |
| 30-70 | 10 | 9 | 35 | √ | √ | √ |
| 75 | / | 9 | 35 | √ | √ | √ |
| 80 | / | 9 | 35 | √ | √ | √ |
| 90 | / | 9 | 35 | √ | √ | √ |
| 100 | / | 9 | 35 | √ | √ | √ |
| 125 | / | 9 | 35 | √ | / | √ |
| 150 | / | 9 | 35 | √ | / | √ |
| 175 | / | 9 | 35 | √ | / | √ |
| 200 | / | 9 | 35 | √ | / | √ |
| 250 | / | 9 | 35 | / | / | √ |
| 300 | / | 9 | 35 | / | / | √ |
| 400 | / | 9 | 35 | / | / | √ |
| 500 | / | 9 | 35 | / | / | √ |
| 600 | / | 9 | 35 | / | / | √ |
| 700 | / | 9 | 35 | / | / | √ |
| 800 | / | 9 | 35 | / | / | √ |
| 900 | / | 9 | 35 | / | / | √ |
| 1000 | / | 9 | 35 | / | / | √ |
| Calibration Instrument of Gages |
|---|
| • Japan Tokyo Seimitsu Roundness Tester |
| • Germany Mahr Roundness Tester |
| • Mitutoyo Laser Scan Micrometer |
| • Switzerland Trimos Diameter Measuring Instrument |
