Ceramic Gage Block Set for Caliper & Micrometer

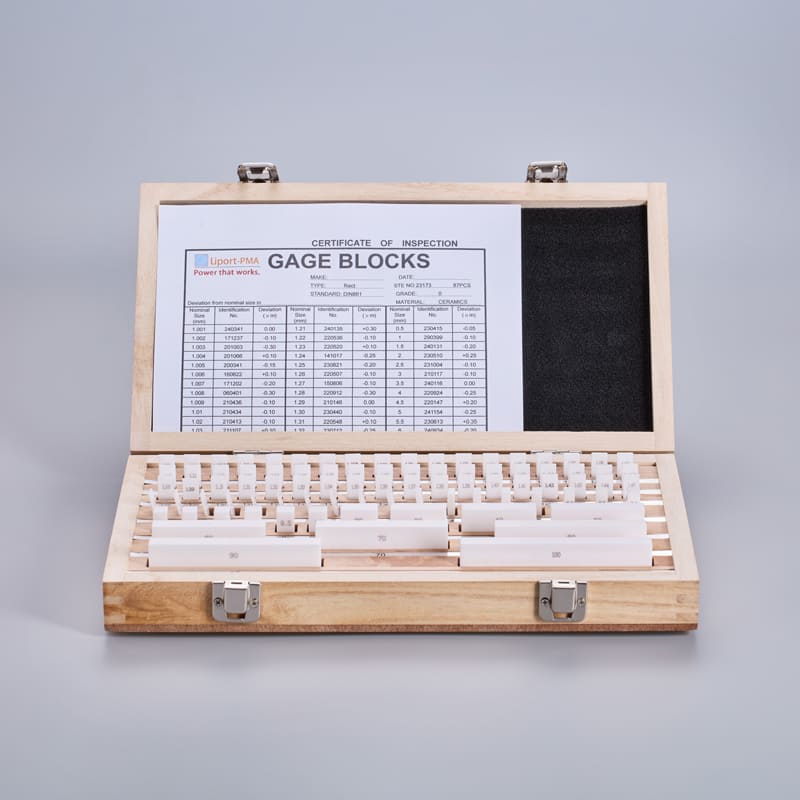

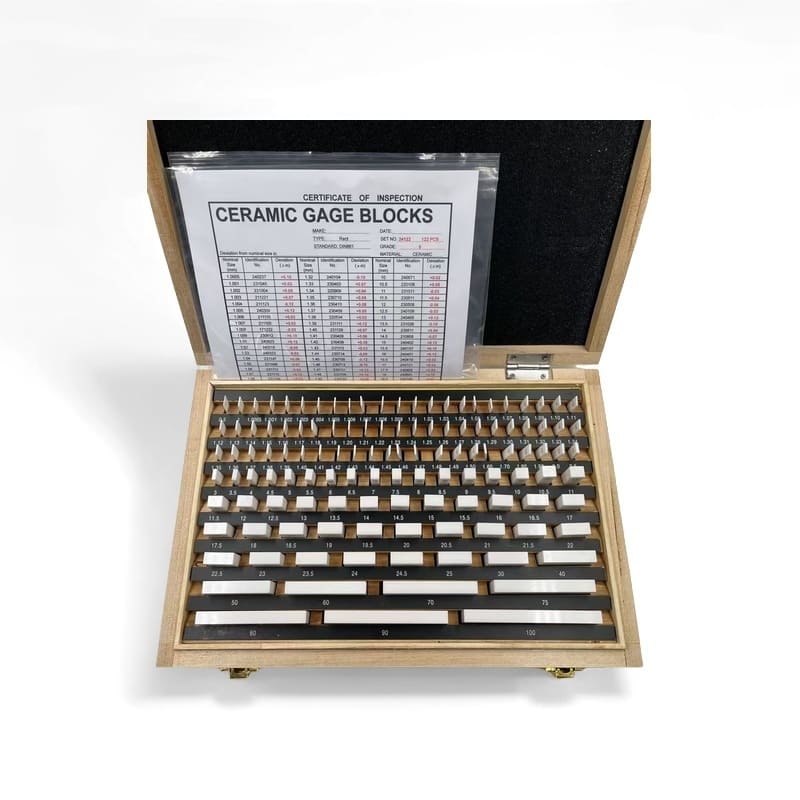

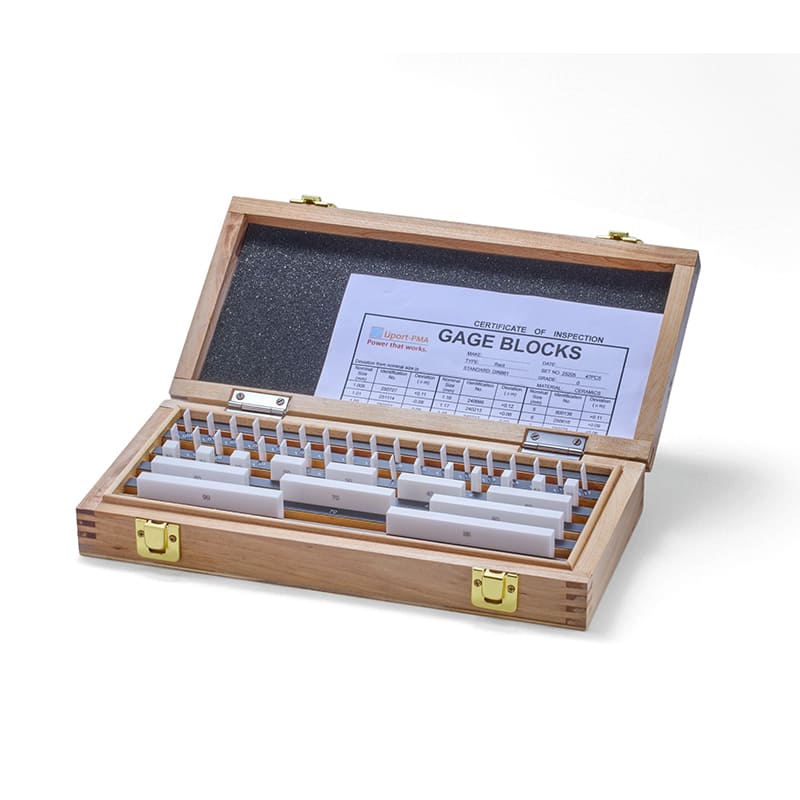

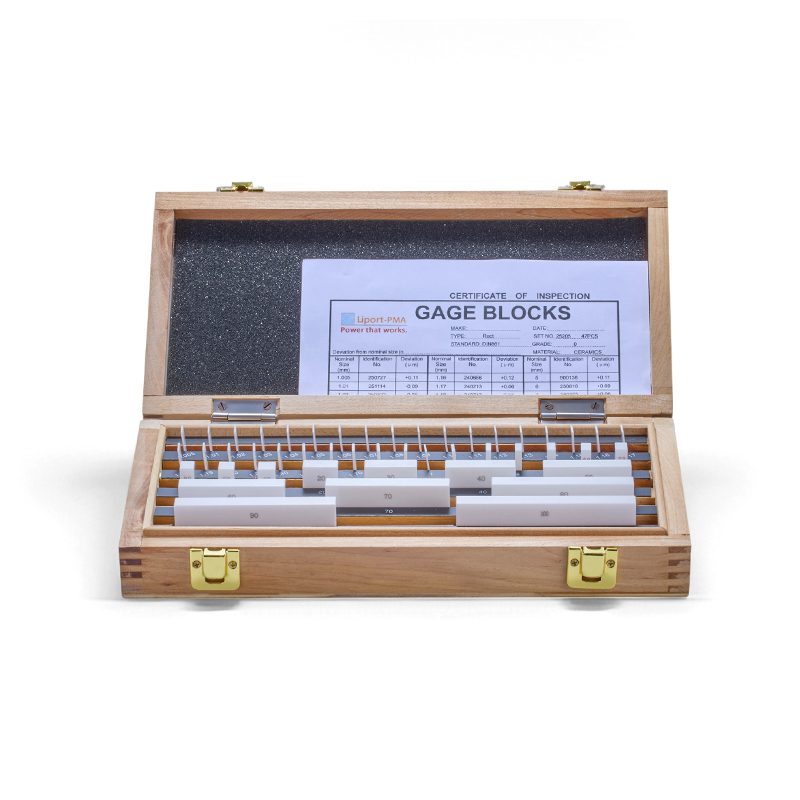

Ceramic block Gage Set
Simple Description
- Product Model: Ceramic Block Gage Set
- Material: Zirconia Ceramic
- Hardness: HRA: 90-92
- Standards: ISO 3650 / DIN 861 / ASME B89.1.9
- Shape: Rectangular
- Dimension Type: Inch and Metric
- Case Type : Wooden Case
- Supplied with manufacturer inspection certificate
CUSTOM – MADE
- Special specifications are available : for example 36.454mm
- Special shaped block gage with an accuracy ± 1 μm can be provided upon request.
- Block gage products come with a factory inspection qualification report.
- Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China. The official laboratory implements the Chinese JJG146 standard.
- Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use
- Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule

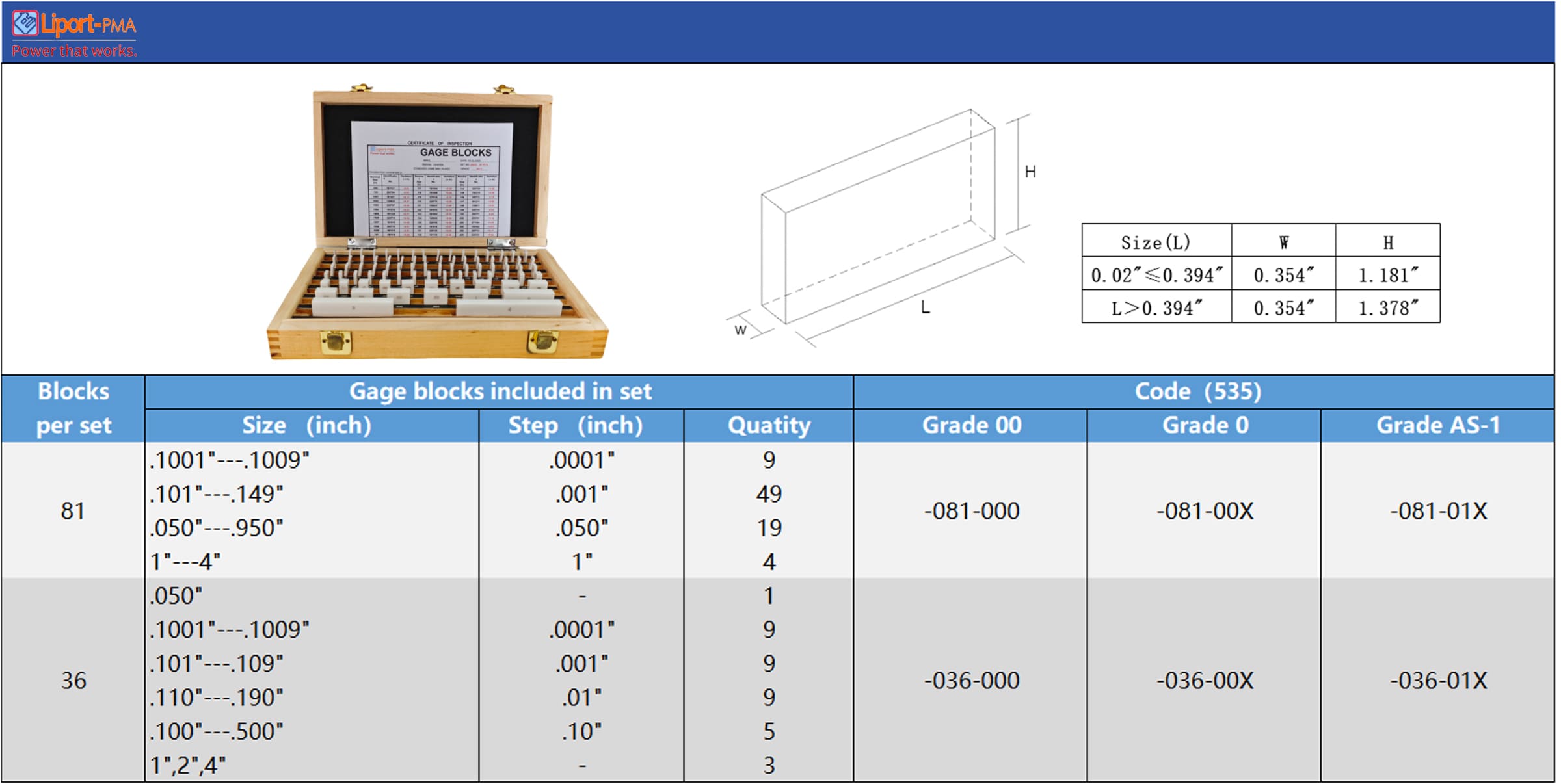

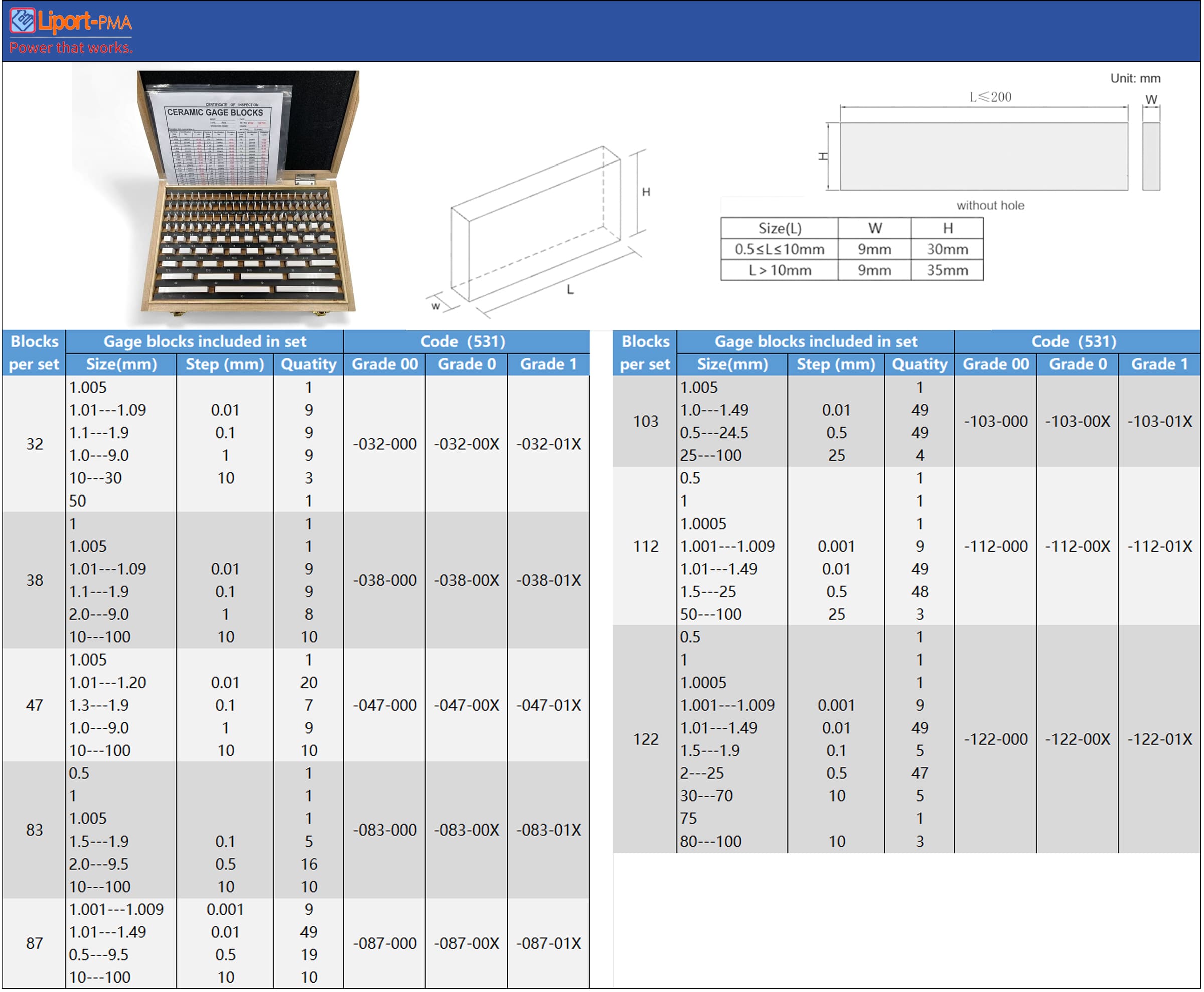

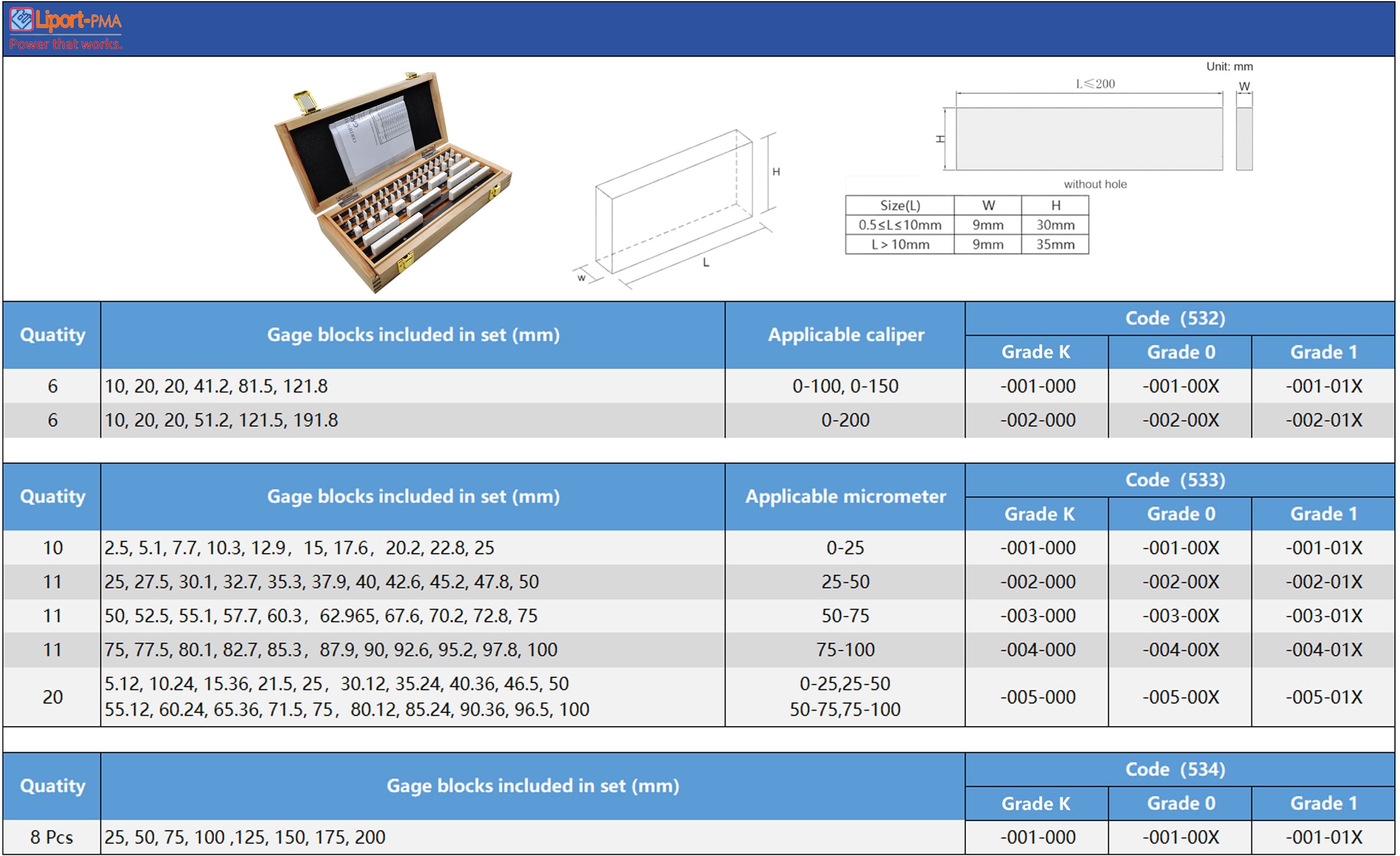

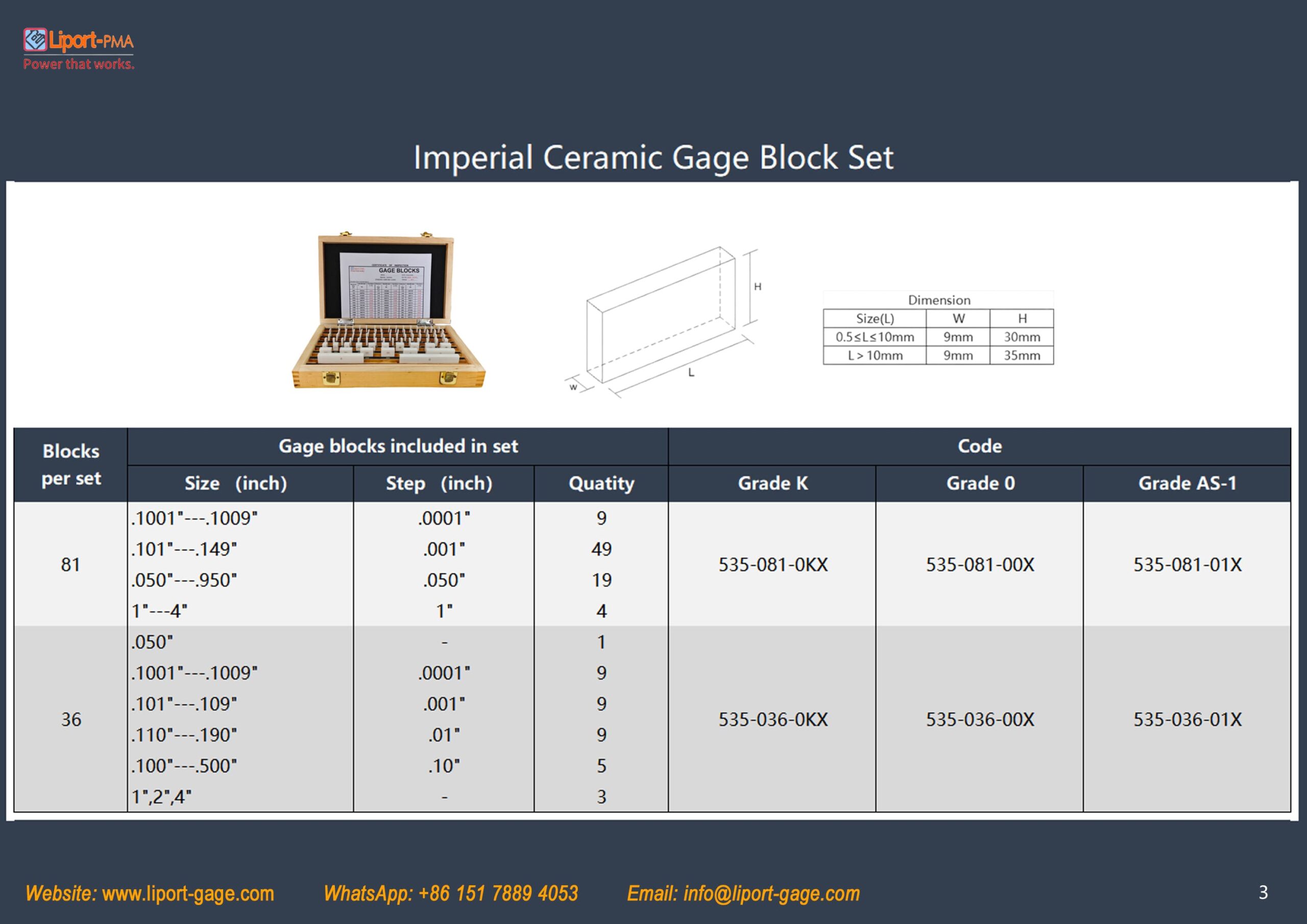

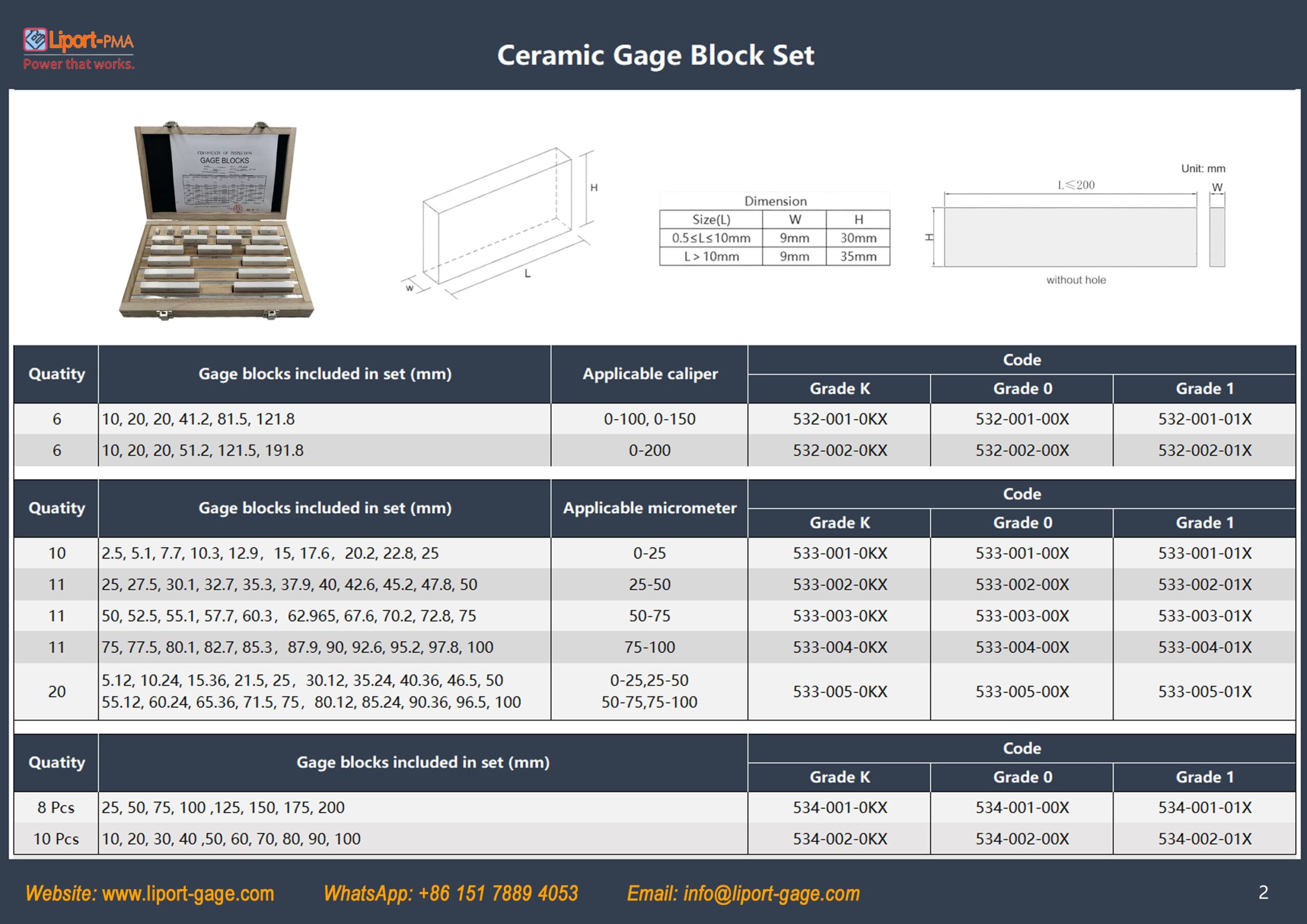

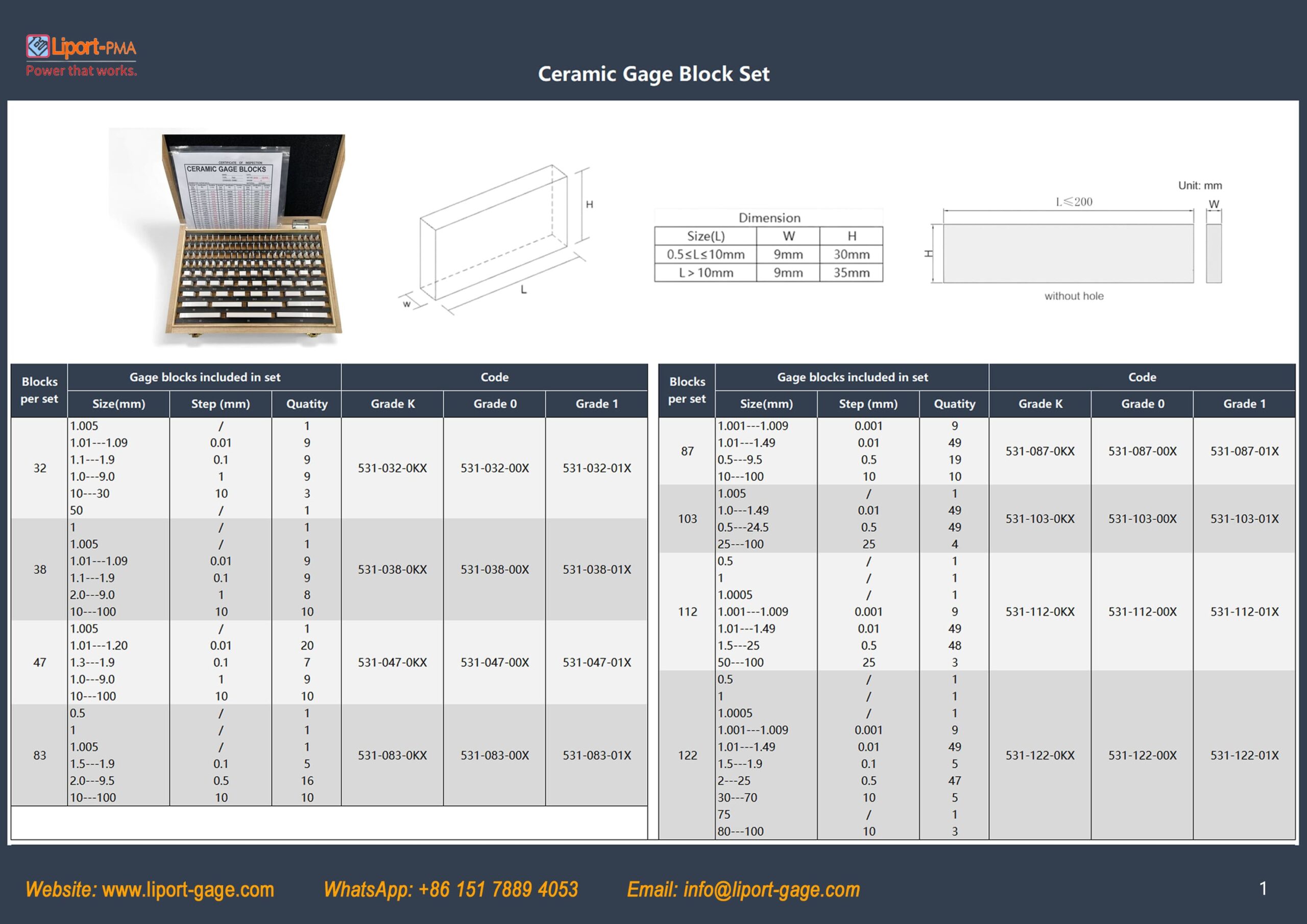

Models of Ceramic Block Gage Set
If the above models fail to cover your requirements, don’t worry.
Click Here to get an accurate quotation.
Models of Ceramic Block Gage Set
If the above models fail to cover your requirements, don’t worry.
Click Here to get an accurate quotation.
Features:
- Ceramics possess unique physical properties. Their stability, durability, and wear – resistance lead to substantial savings in both time and cost.
- The precision surfaces maintain their accuracy over many years. This allows for longer calibration intervals and cuts down on maintenance expenses.
| Advantages of Ceramic Block Gauge |
|---|
| ● Resistant to corrosion, capable of withstanding high temperatures, and completely rustless. |
| ● Non-conducting in nature, with a non-stick surface for products. |
| ● Simple maintenance and easy calibration. |
| Features of Ceramic Block Gauge |
|---|
| ● The ceramic block gauge, second only to diamond in hardness, is corrosion - resistant, rust - free, and highly resistant to chemicals. |
| ● It's easy to store as its coefficient of thermal expansion is nearly identical to that of steel. |
| ● Unaffected by temperature, it offers long-term durability. |
| ● It is non-magnetic, non-sticky, and never rusts. |
The comparison of the properties between CERAMIC and STEEL
| Material | CERAMIC | STEEL |
| Hardness(HV) | 1350 | 800 |
| Coefficient of thermal expansion(10-6/℃) | 9.5±1 | 11.5±1 |
| Density（g/m³） | 6 | 7.8 |
| Flexural strength | 800-1000 | 2000 |
| Modulus of elasticity（104kgf/mm2) | 2.1 | 2.1 |
| Poisson's ratio | 0.3 | 0.3 |
| Thermal conductivity（cal/cm.sec.℃） | 0.007 | 0.13 |
| Calibration Instrument of Gages |
|---|
| • Japan Tokyo Seimitsu Roundness Tester |
| • Germany Mahr Roundness Tester |
| • Mitutoyo Laser Scan Micrometer |
| • Switzerland Trimos Diameter Measuring Instrument |
