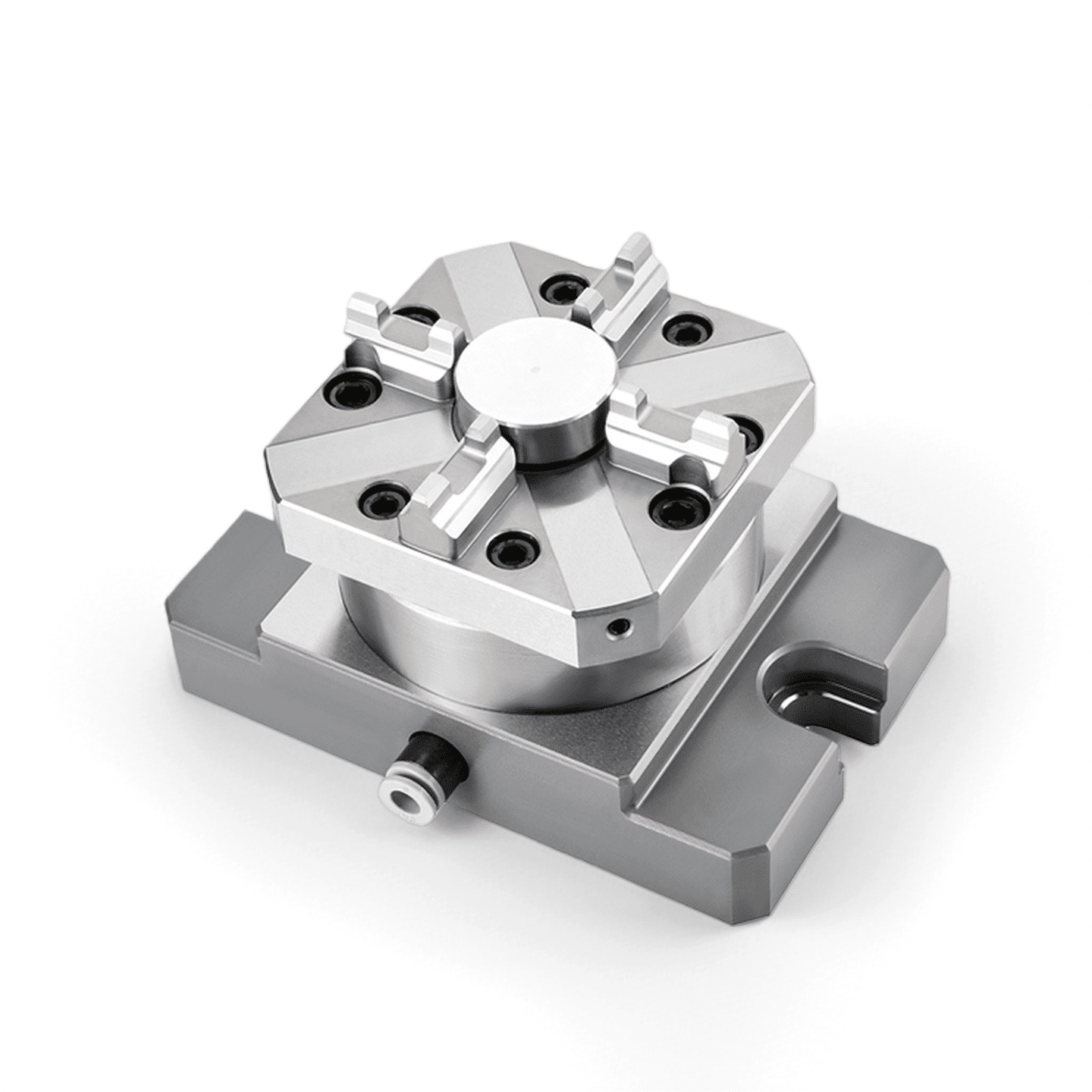

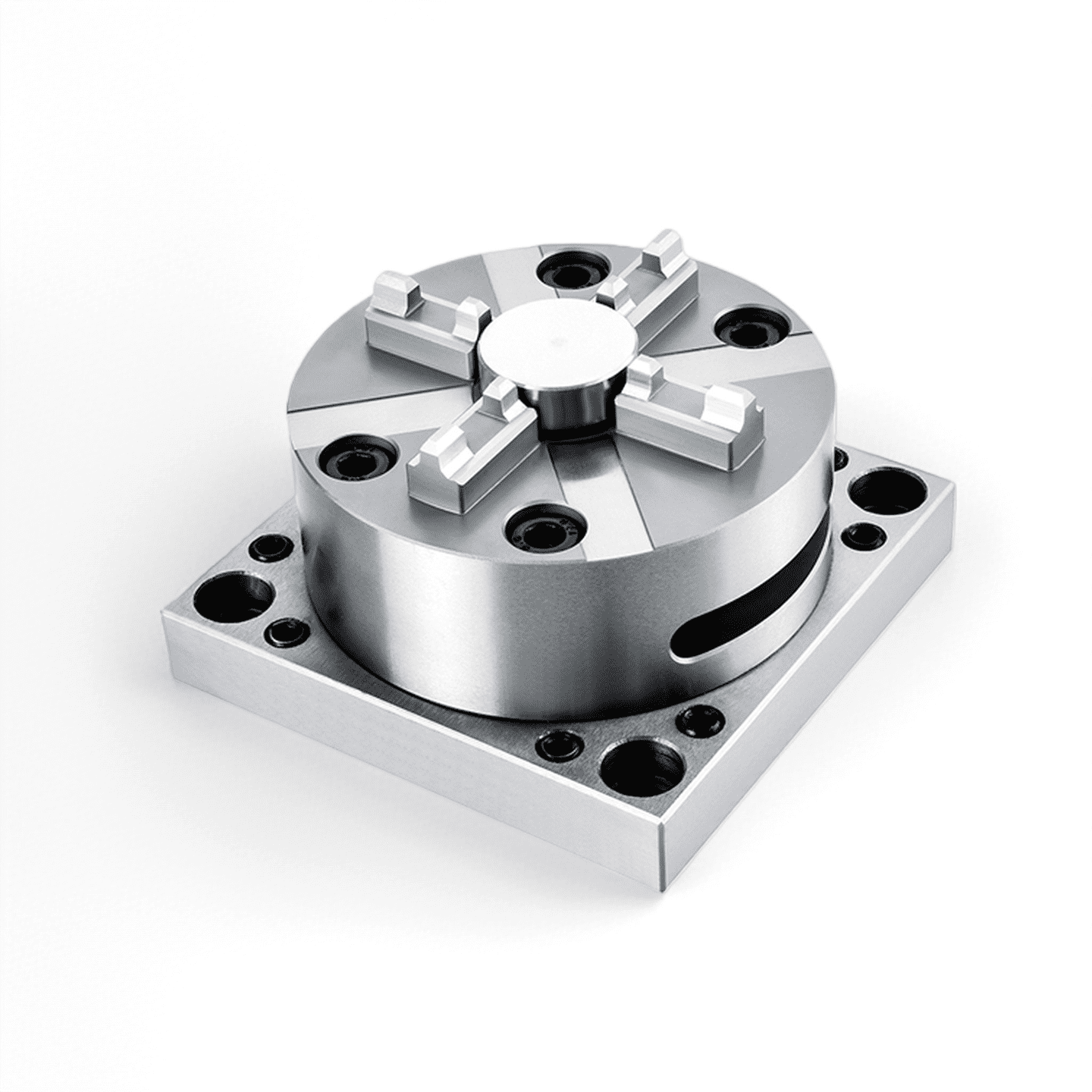

LP-ER Benchmark Chuck and CNC jig

Simple Description

  • Supports manual/pneumatic dual locking methods and adopts ER interface (compatible with EROWA systems), seamlessly compatible with existing CNC, EDM and other equipment;
  • Repeat positioning accuracy up to ±0.002mm with strong clamping force, ensuring workpieces remain stable without displacement during high-speed and heavy-load machining;

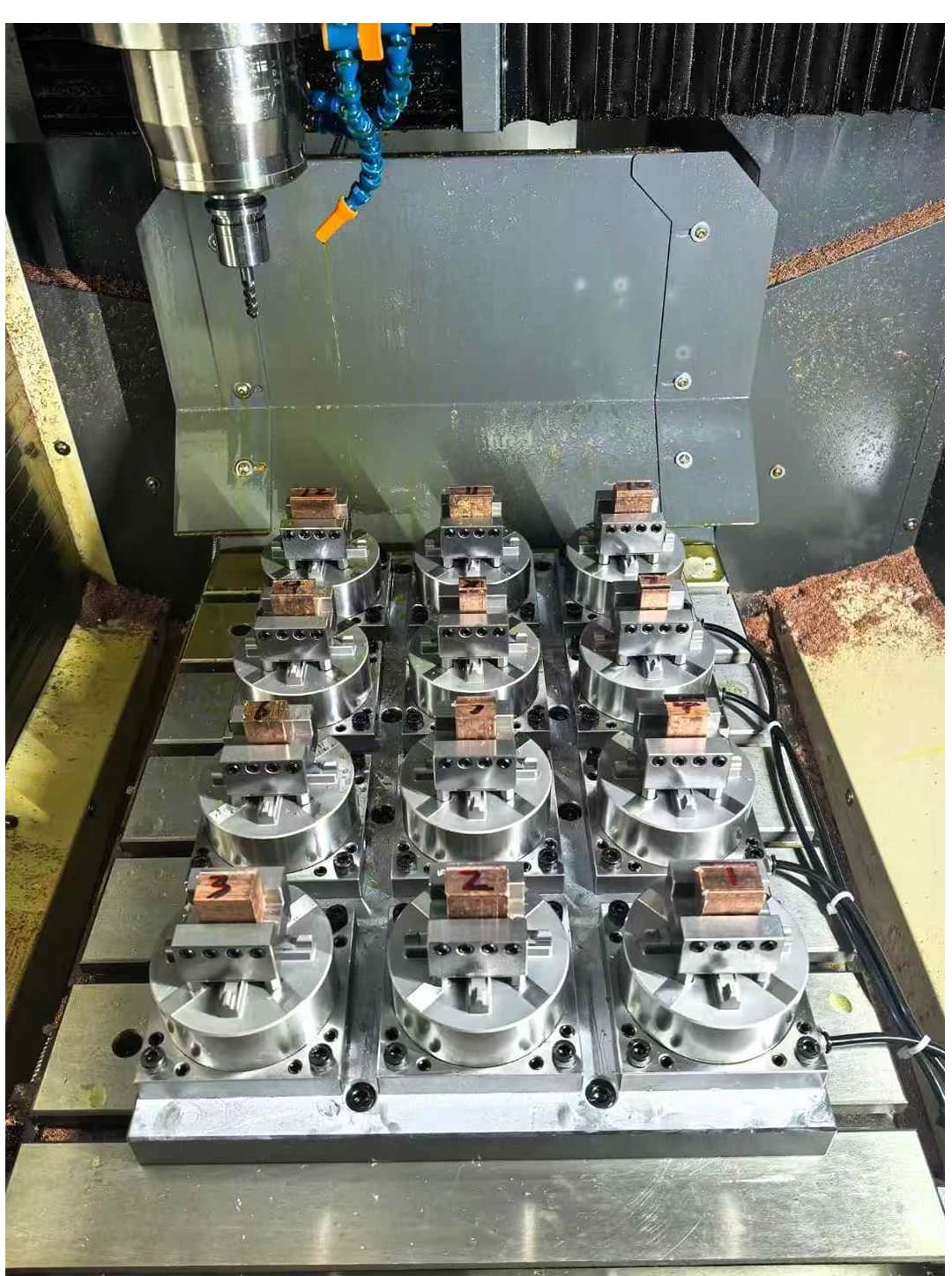

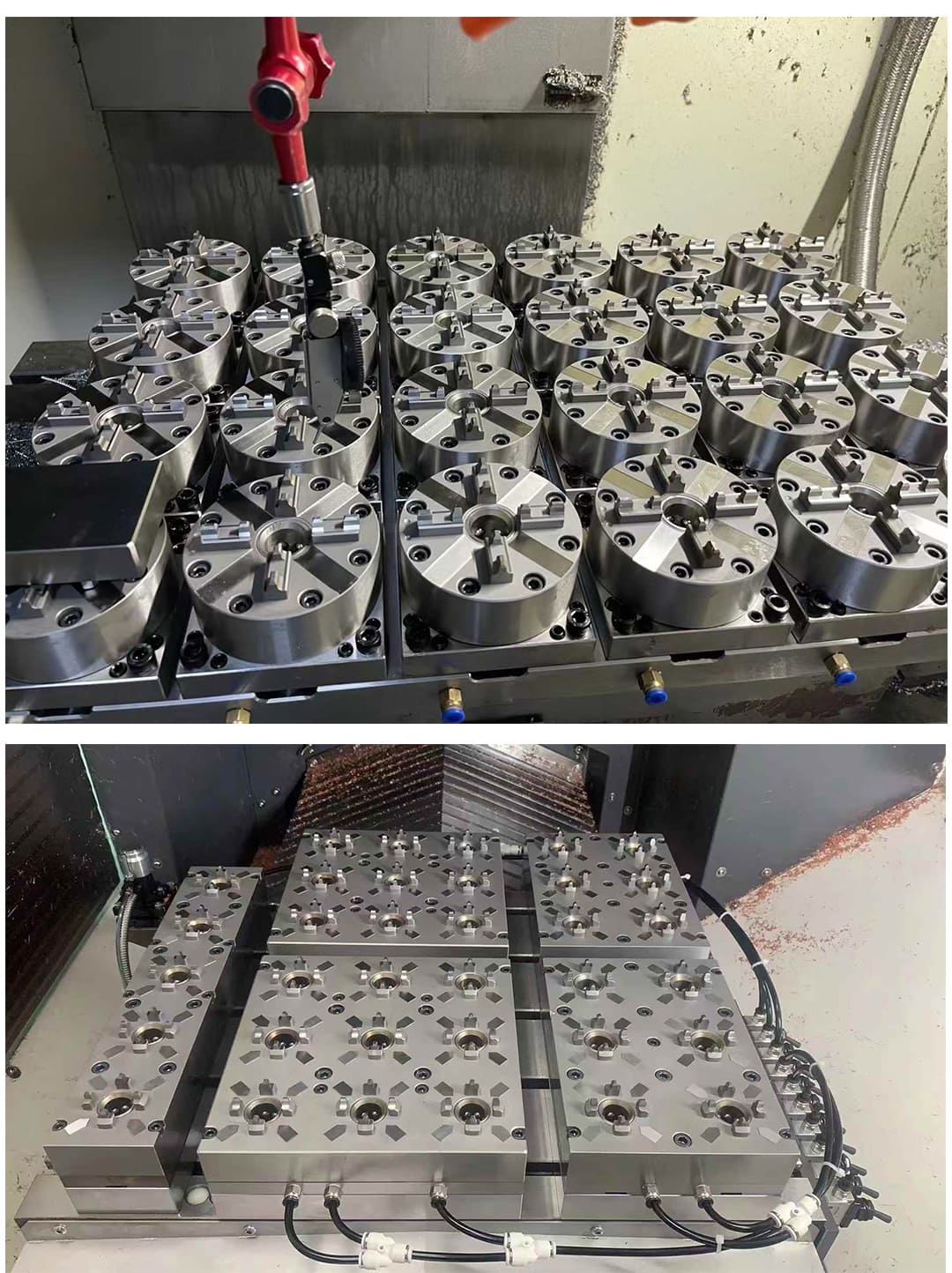

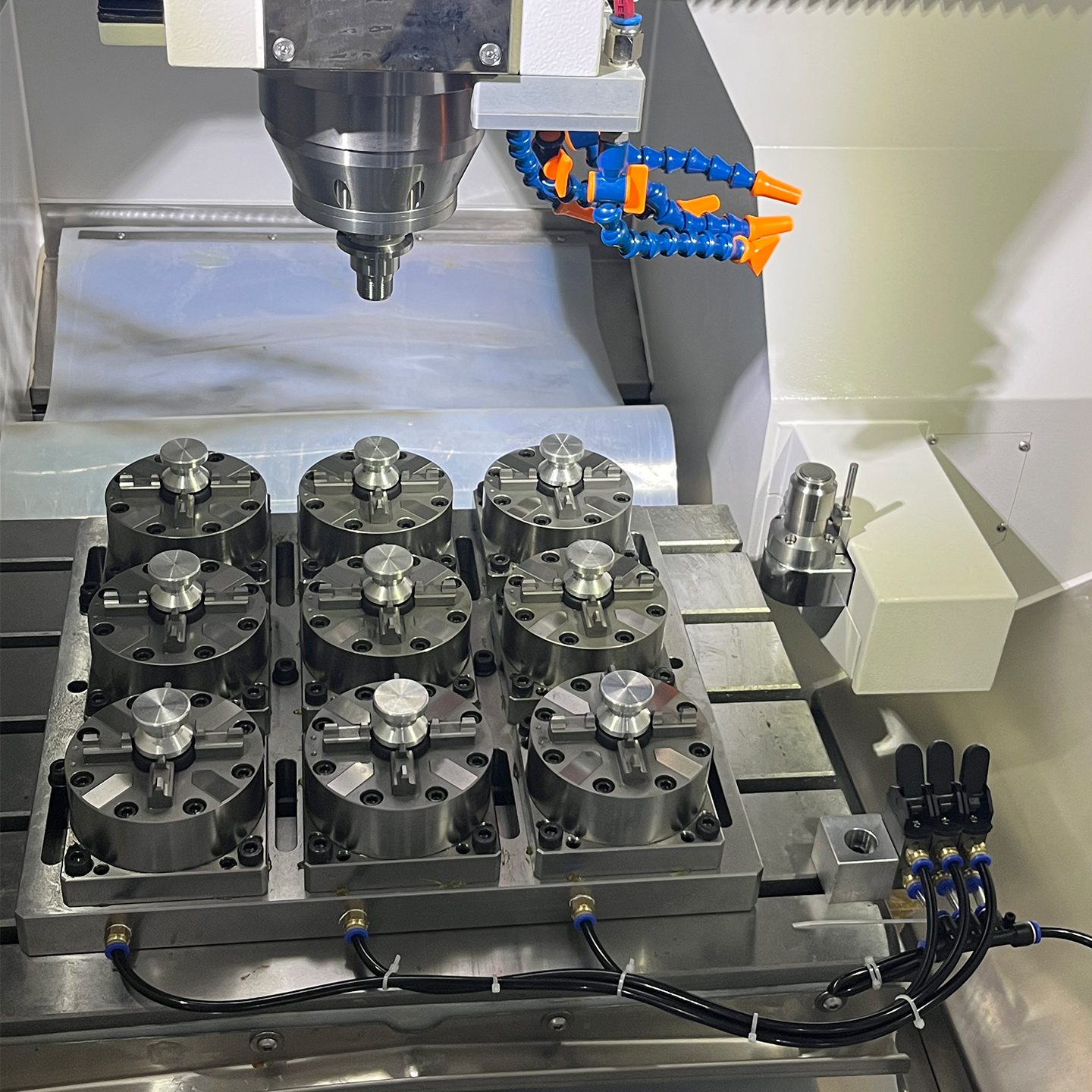

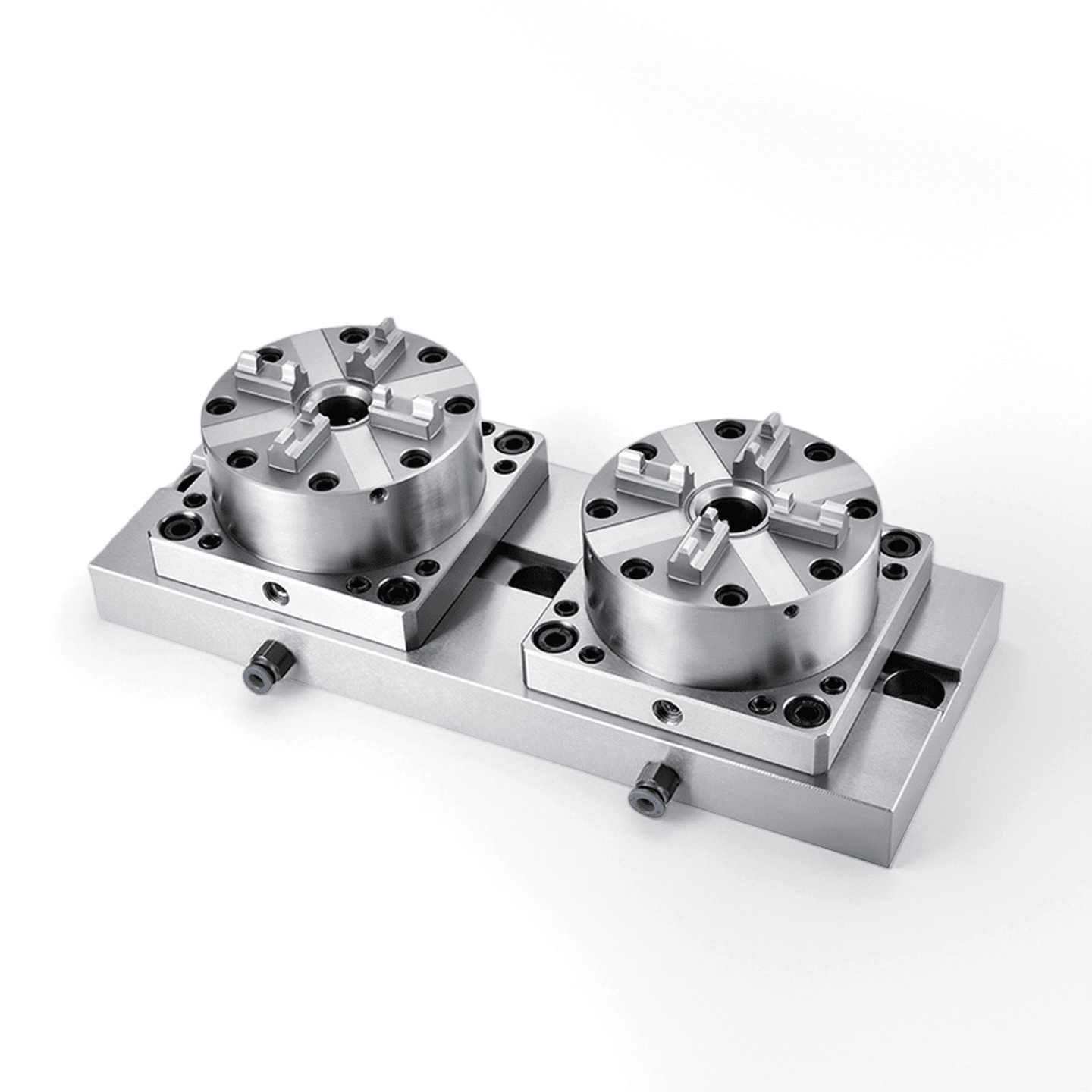

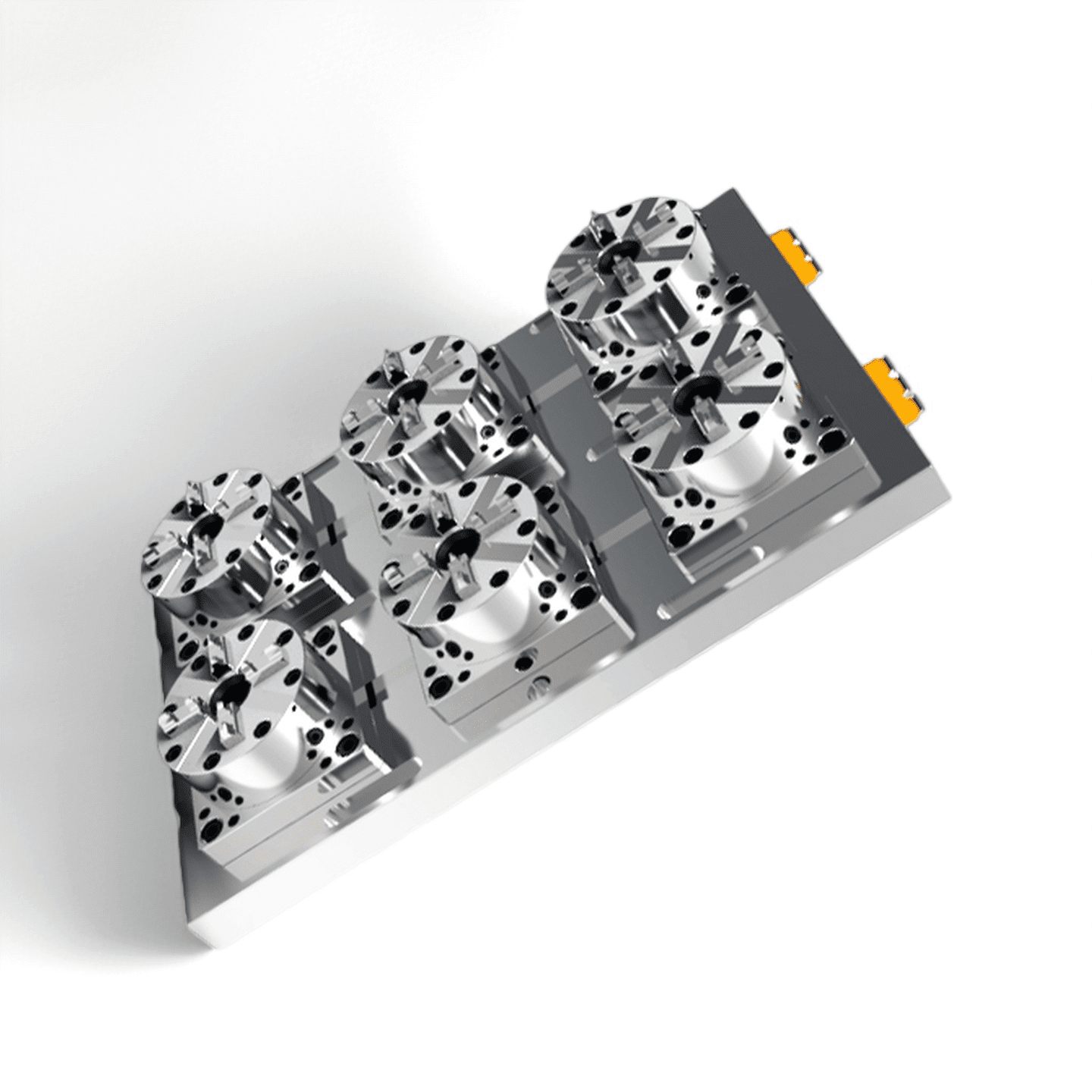

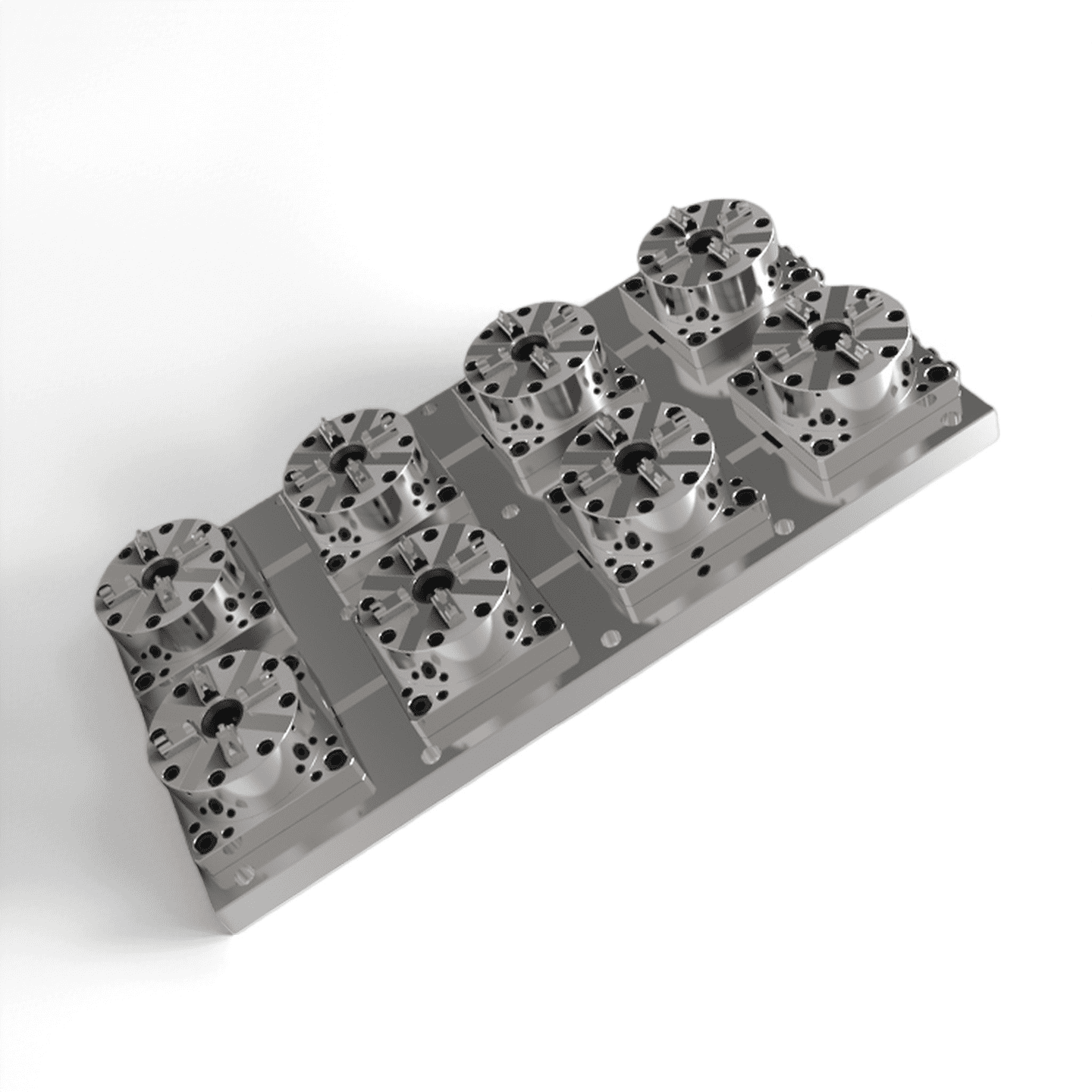

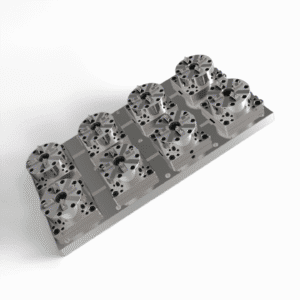

  • Covers configurations from single-station to multi-station; chuck diameters available in D80mm – D150mm, suitable for different workpieces and production line scales.
  • Customization is supported.
Share

Benchmark_Chuck_17Benchmark_Chuck_19Benchmark_Chuck_20Benchmark_Chuck_21

Please click on the link below to download:

LP-ER Benchmark chuck and CNC jig

Liport-PMA: High-Precision Reference Chuck for Precision Manufacturing

Backed by ISO 9001 quality management and EROWA standard compatibility, we provide efficient clamping solutions for precision production lines. Feel free to inquire.
About Customization Services:
  1. Material upgrade: Can be customized to upgrade to tungsten steel (alloy steel);
  2. Size customization: Exclusively crafted entirely according to the dimensions provided by the customer;
  3. Solution customization: Combining the customer’s usage scenarios and functional requirements to provide comprehensive clamping solutions;
  4. Clamping force upgrade: Clamping force performance can be enhanced according to customer requirements.
