LP-3R Series Modular Workpiece (Copper Electrode) Clamping and Positioning System
LP_3R_Series_Modular_Workpiece_02
LP_3R_Series_Modular_Workpiece_03
LP-3R Series Modular Workpiece (Copper Electrode) Clamping and Positioning System - Image 4
LP_3R_Series_Modular_Workpiece_05
LP_3R_Series_Modular_Workpiece_02
LP_3R_Series_Modular_Workpiece_03
LP_3R_Series_Modular_Workpiece_05

LP-3R Series Modular Workpiece (Copper Electrode) Clamping and Positioning System

Simple Description

  • Full-Range Modular Design
  • Multiple Materials & Specifications
  • High-Precision Craftsmanship
  • Wide Equipment Compatibility: Compatible with CNC and EDM equipment. Stainless steel/brass chucks meet high/low hardness clamping needs respectively, ensuring stability and reliability.
  • Supports Customization: Comprehensive clamping solutions provided based on diverse requirements.
  • Adopts 3R Interface (compatible with Sweden’s System3R)
Share

Please click on the link below to download.

LP-3R Series Modular Workpiece (Copper Electrode) Clamping and Positioning System catalog

The Liport-PMA 3R Series includes stainless steel chucks, brass chucks, positioning plates, as well as supporting pull rods and fixing brackets, forming a complete clamping and positioning system for precision machining.

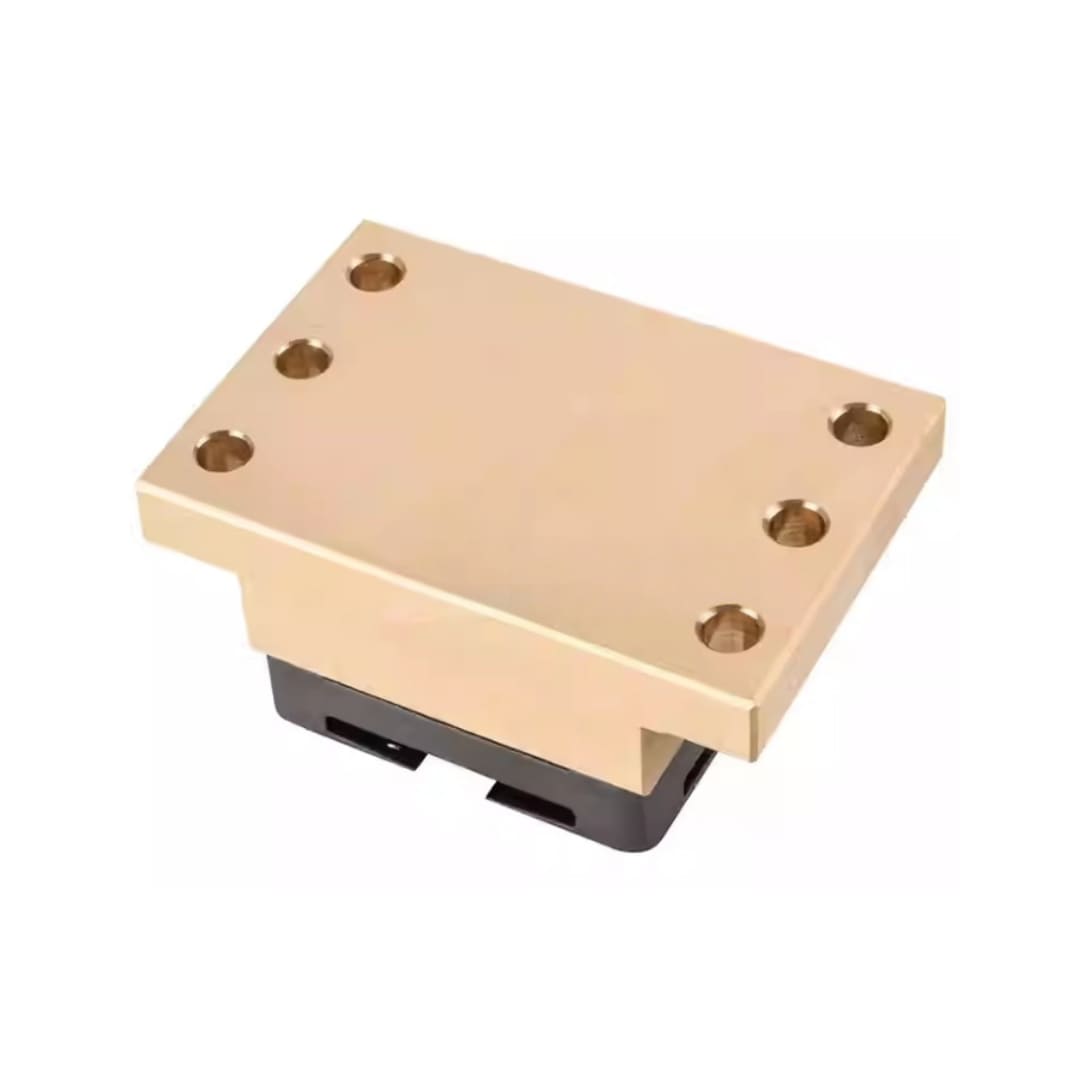

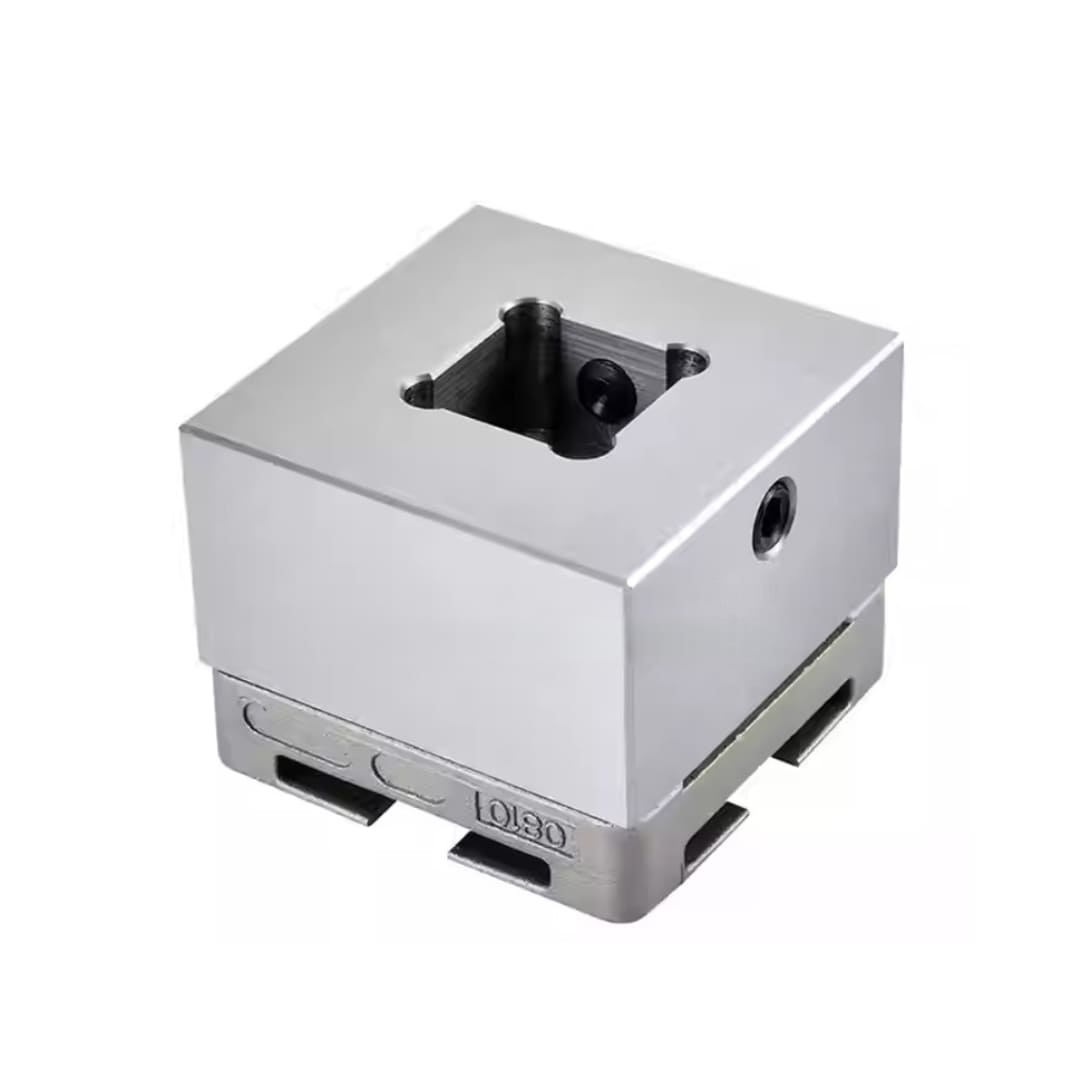

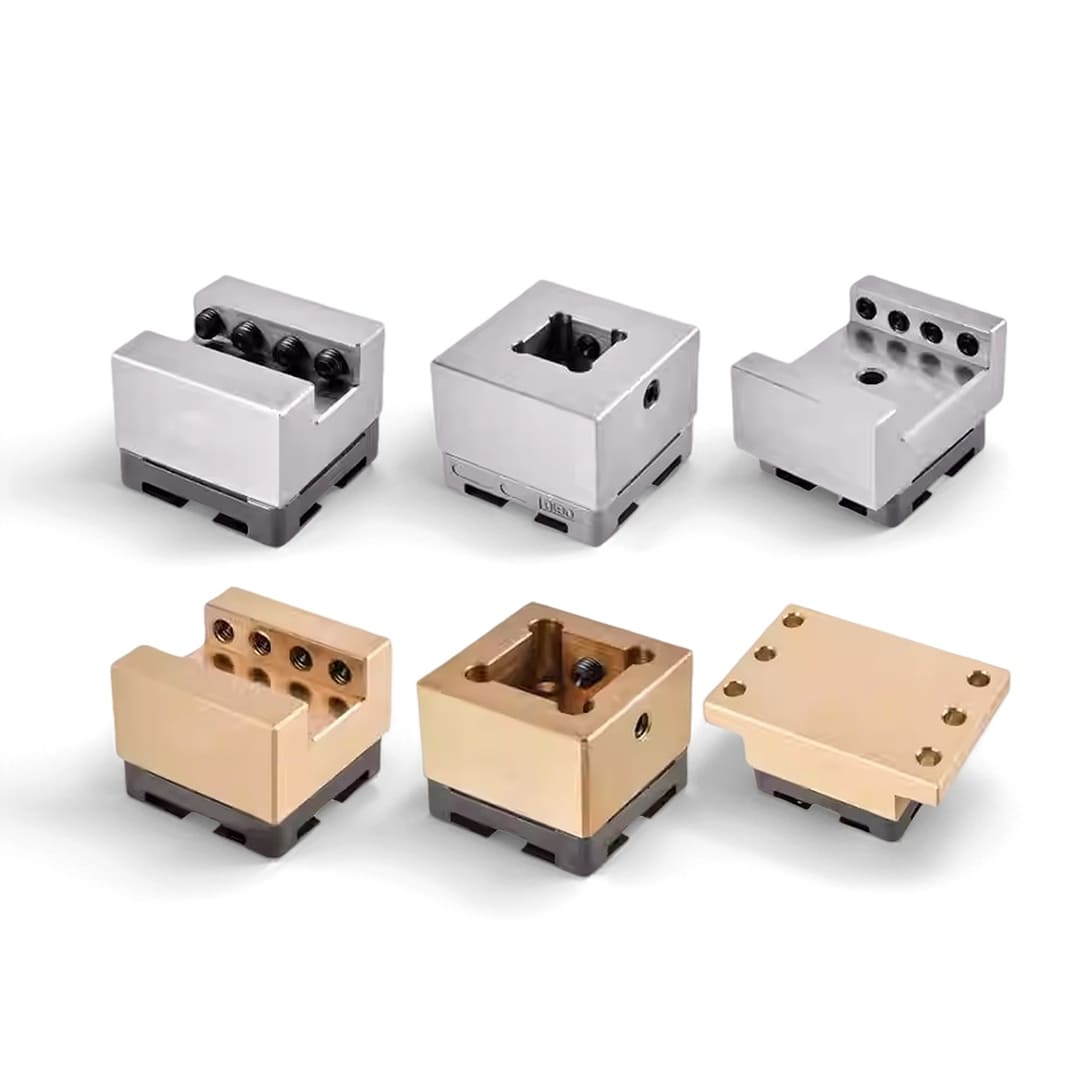

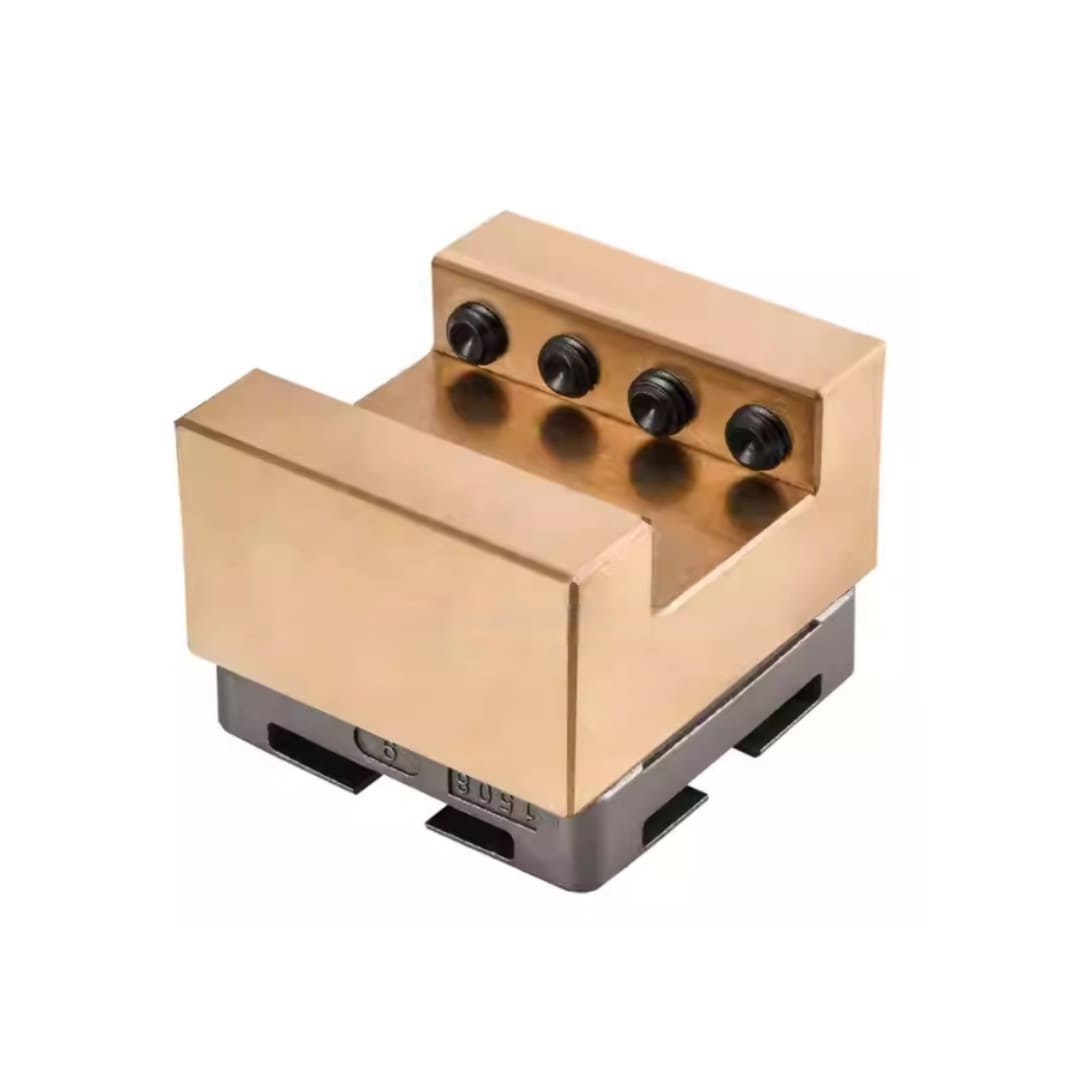

Stainless steel chucks are made of 420 stainless steel (30~36HRC), available in slotted type (U15~U55), square type (S15~S40), and flat type, with specifications ranging from 54×54×42.3mm to 150×92×35.5mm. Brass chucks are crafted from national standard brass (100~110HB), covering the same full range of types and specifications as the stainless steel series. Both are equipped with corresponding positioning plates, featuring deburred and leveled edges, and protected by foam/sponge packaging.

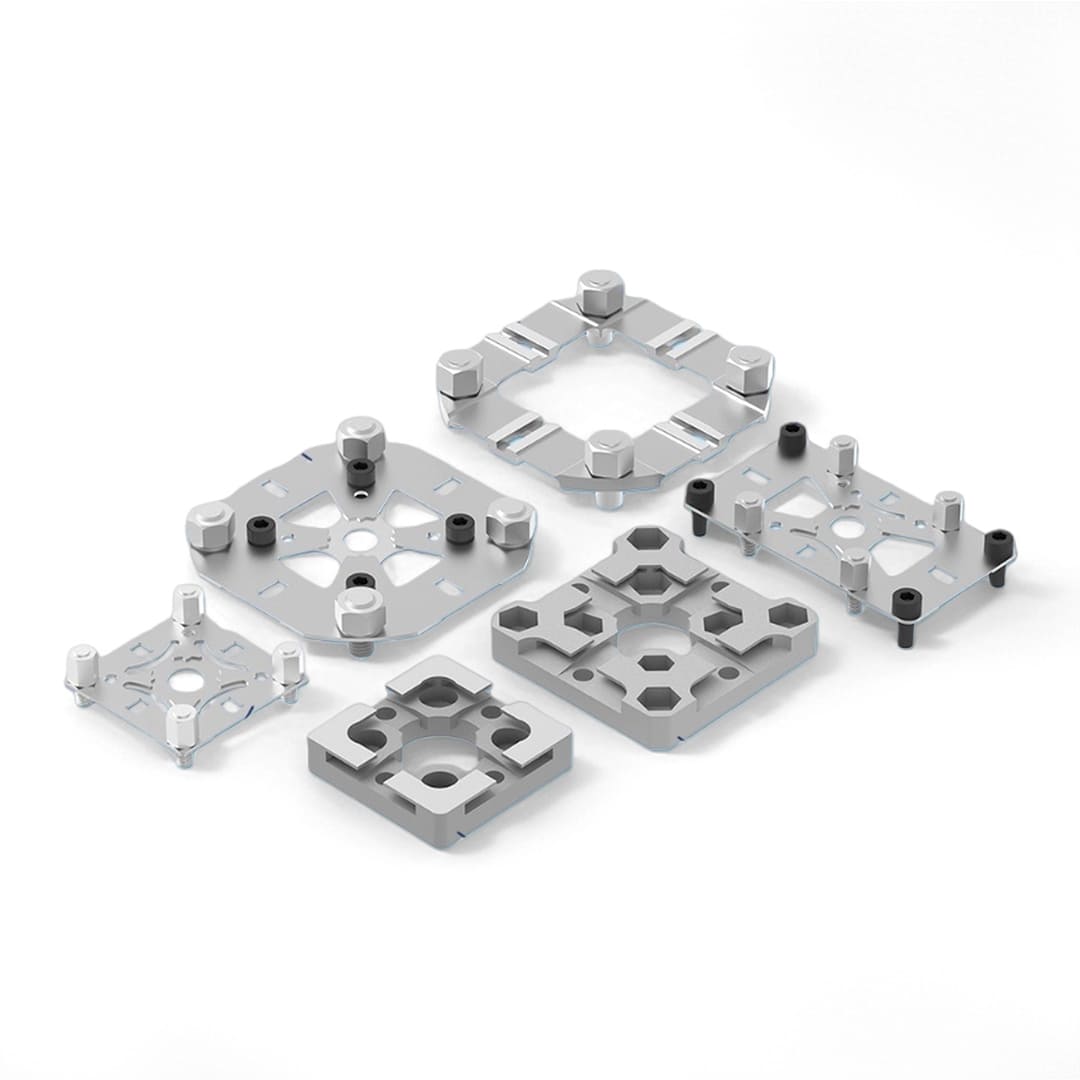

Positioning plates are made of 420 stainless steel (40~44HRC), with specifications of 54×54×12.5mm and 70×70×12.5mm, fully precision ground without casting. Supporting pull rods are divided into manual type (Φ28×37mm, 420 stainless steel 18-LC) and pneumatic type (Φ28×57mm, 420 stainless steel 48~52HRC). ABS material pull rod fixing brackets assist in connection and fixation.
The entire series is compatible with CNC, EDM, and other precision machining equipment, balancing high precision and scenario adaptability.
