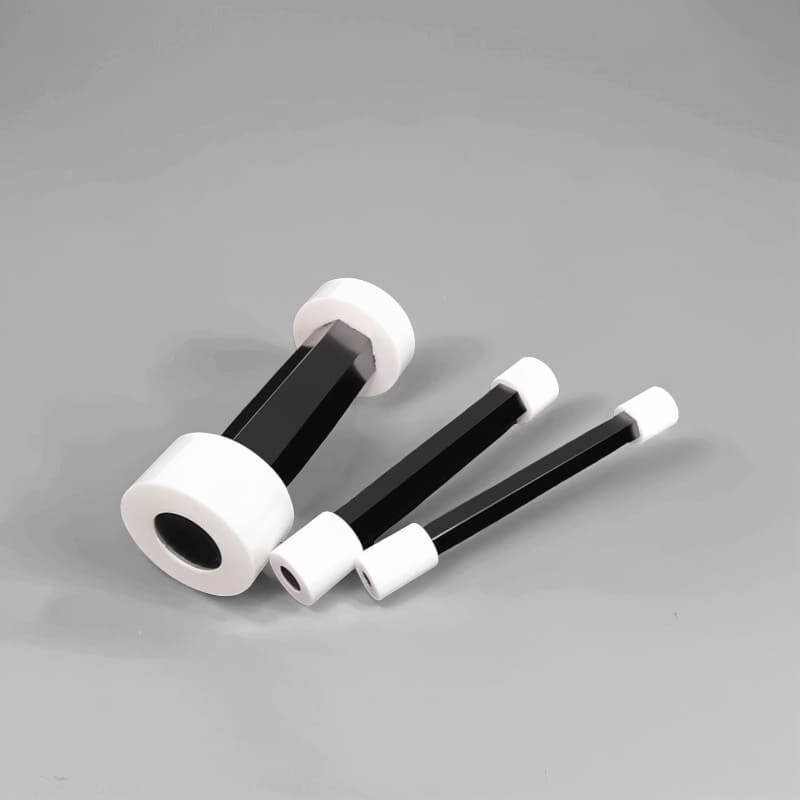

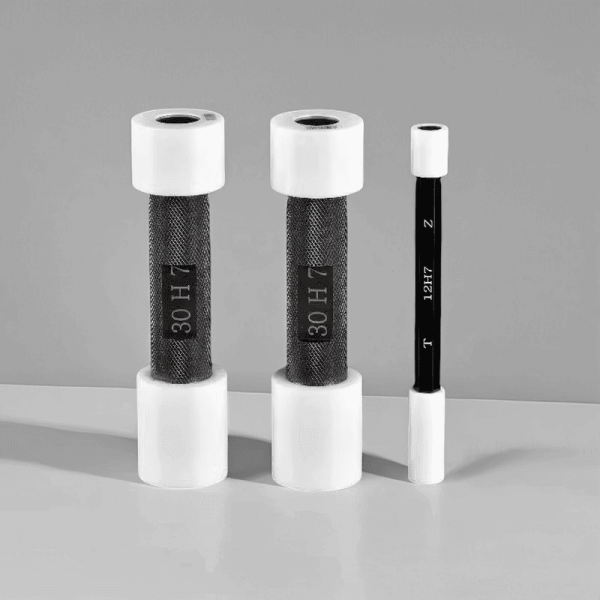

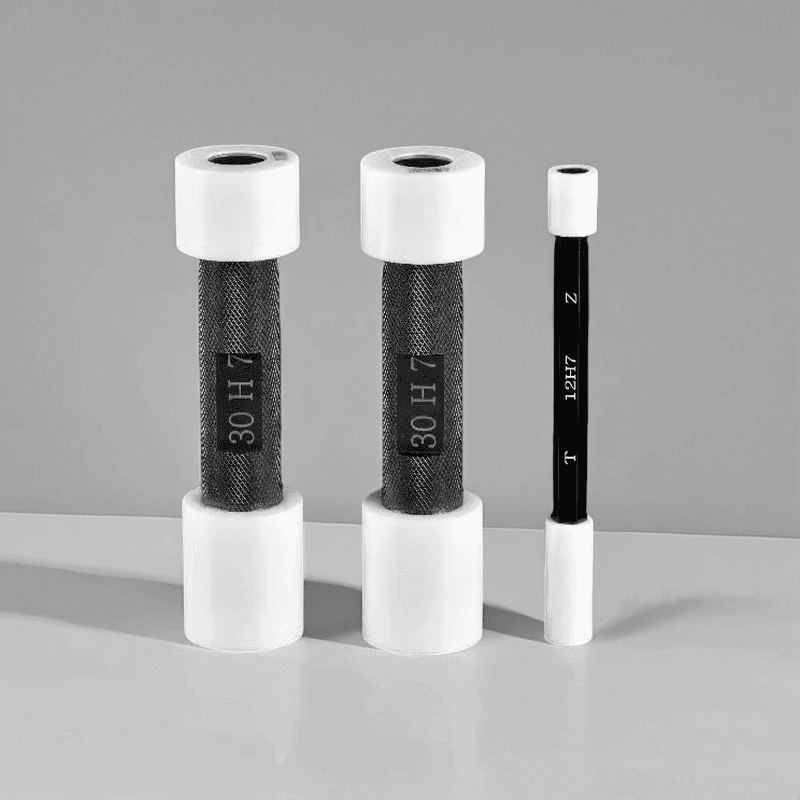

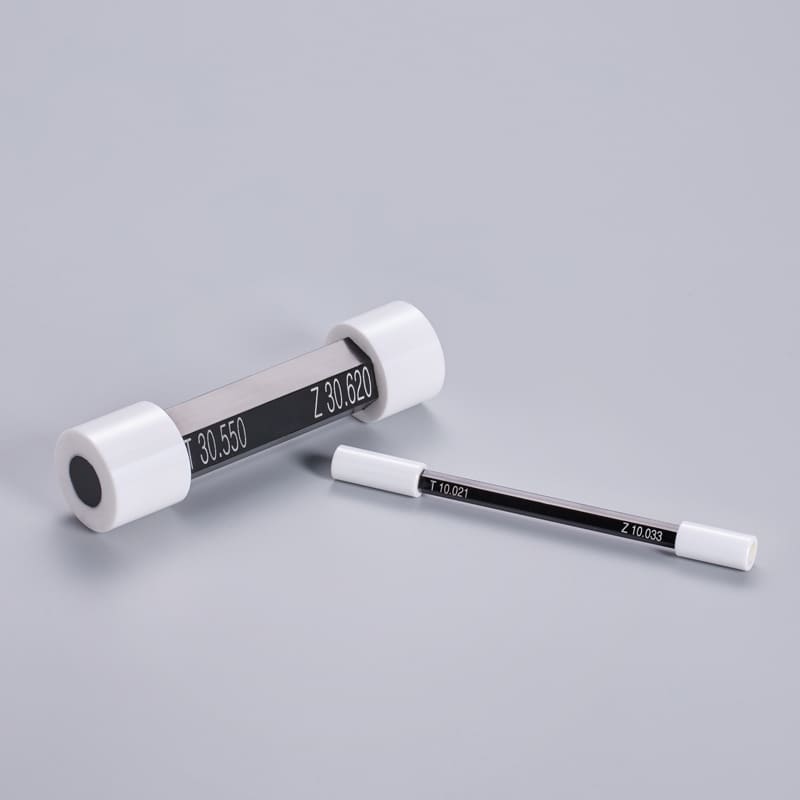

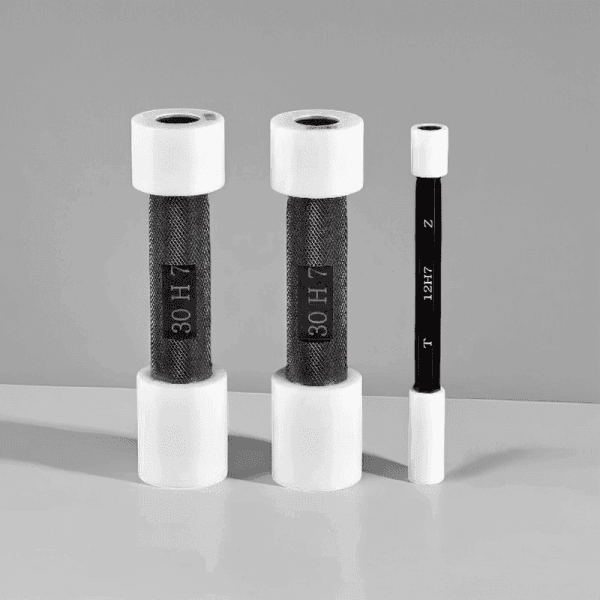

Ceramic Plain Plug Gage

Simple Description:

For checking large diameter holes.
Supplied with Go and No-Go gages together

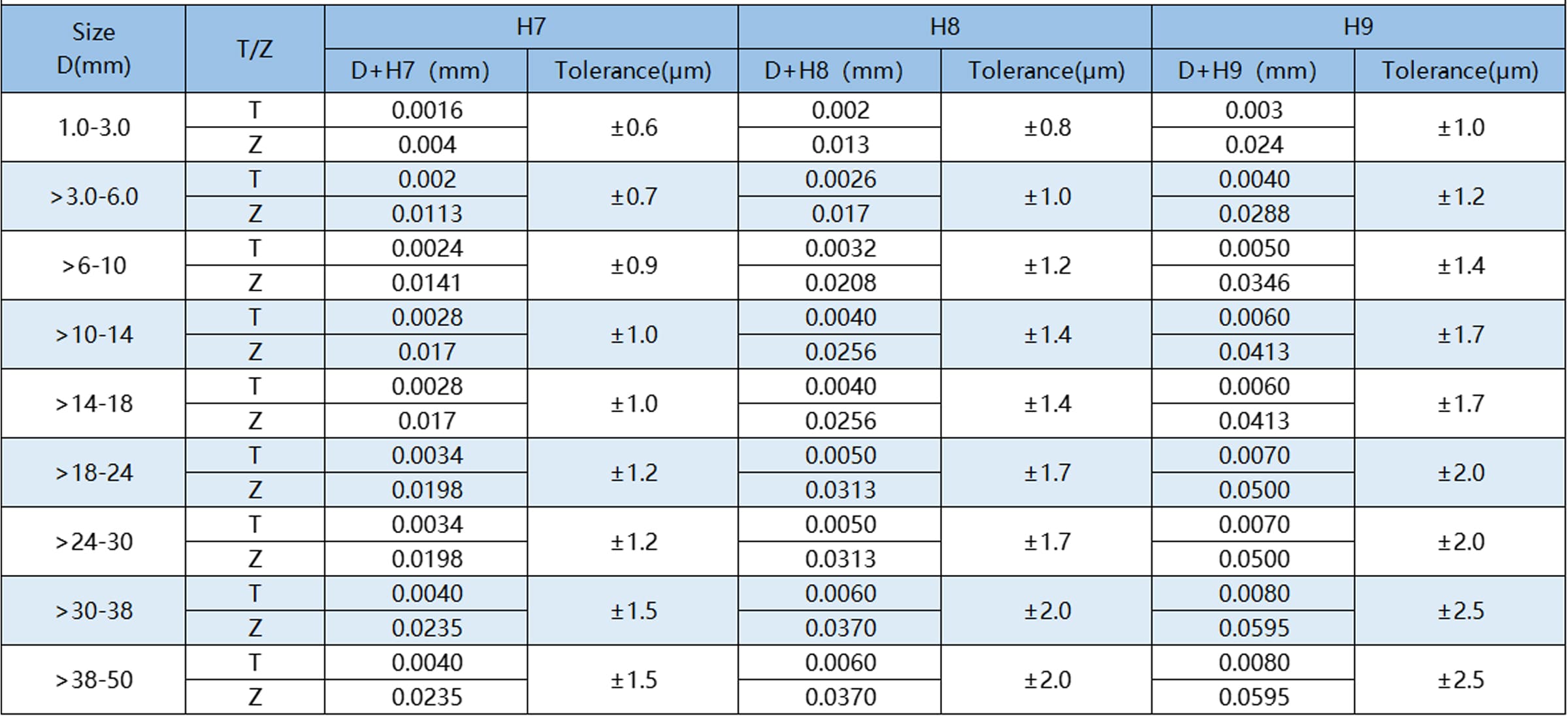

Grade: H7 / H8 / H9
Sizes range from 1.000mm（0.04″）-150.000mm(6″)
Made of ceramic, extremely wear resistance andcorrosion resistance, dimensional stability

CUSTOM – MADE

Inch size Go NoGo plug gage with grade XX / grade X / grade Y / grade Z / grade ZZ can be provided on request.
Special diameters are available : for example 78.003mm
Tolerance Direction:
Go – Unilateral (one way) minus tolerance.
NoGo – Unilateral (one way) plus tolerance.
Master – Bilateral (split) tolerance.

Share

Certificate
Description

Available for a fee: ILAC-MRA/CNAS certified reports issued by official authoritative institutions in China

Recognized in China & Internationally Mutually Recognized: The report is suitable for global calibration scenarios, with no re-testing required for cross-border use

Efficient Testing Cycle: Completed in approximately 5 working days (regular cases), ensuring no delay to your order delivery schedule
