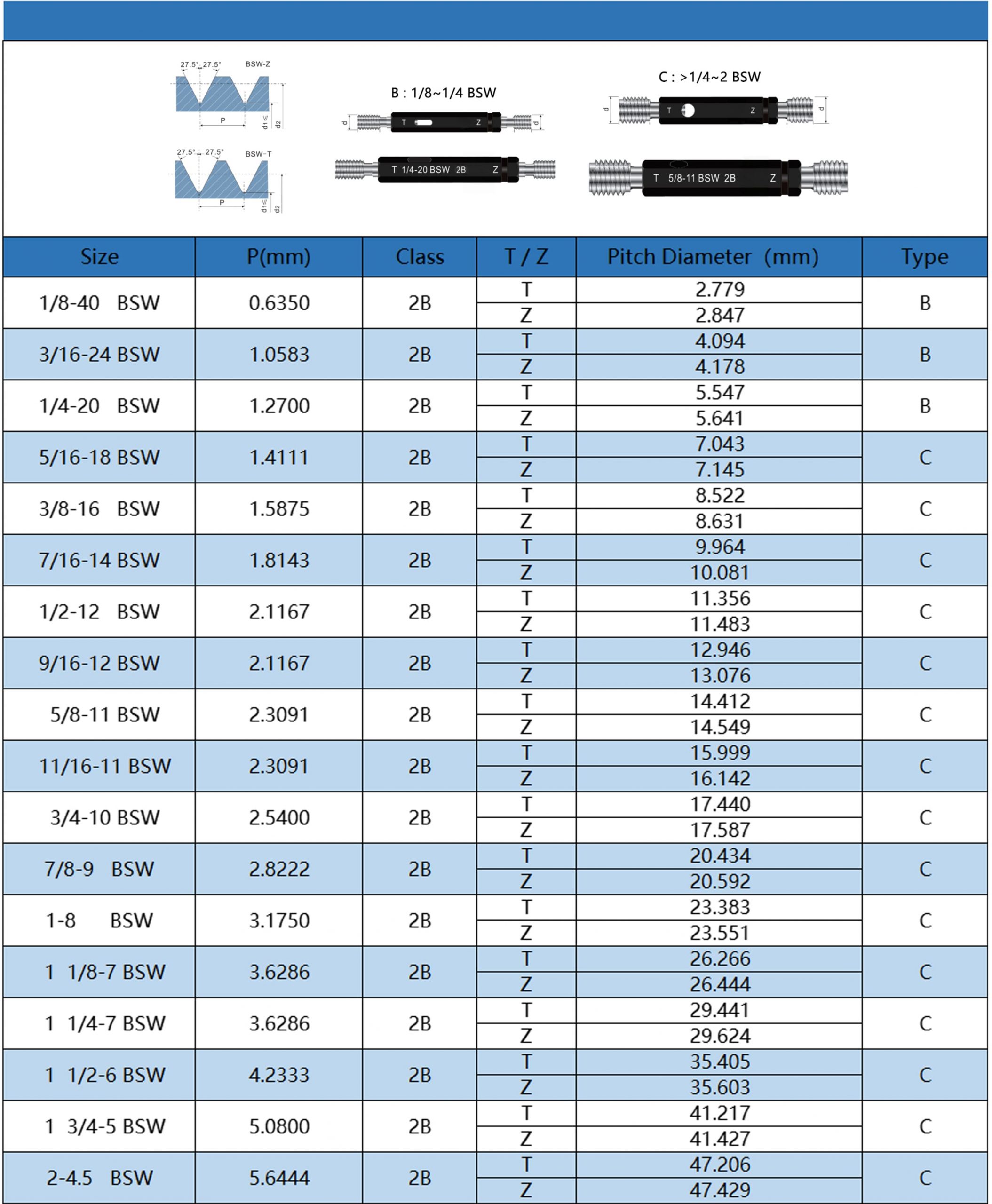

Thread Plug Gage 1/8~2 BSW

Simple Description:

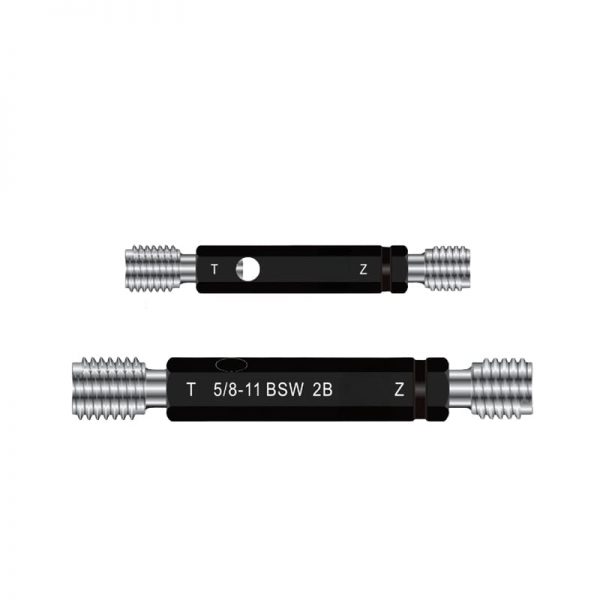

  • Product Model : British Standard Whitworth Thread Plug Gage
  • Range : 1/8~2 BSW
  • Standards: BS 919-2:2007
  • Material: GCr15.
  • Hardness : measuring surface is 58-65HRC

CUSTOM – MADE

  • We provide thread plug gages with the following thread tolerance classes: 1B / 2B / 3B.
  • We also provide thread plug gauges of G series, RC series, PT series, RP series, NPT series, NPSM series, and etc. .
Share

Introduction to BSW (British Standard Whitworth) Thread Working Plug Gages:

  1. Purpose of British Standard Whitworth Thread working plug gauges: To comprehensively inspect Whitworth coarse pitch internal threads specified in BS84:2007.
  2. Inspection environment for British Standard Whitworth Thread working plug gauges: The standard temperature is 20°C ± 1°C, and the measuring force under standard conditions is zero.
  3. Inspection methods for British Standard Whitworth Thread working plug gauges: The single pitch diameter is detected by the “three-wire method” using a length measuring instrument. The pitch, flank angle, minor diameter, and clearance groove are detected by a universal tool microscope.
  4. Use of British Standard Whitworth Thread working plug gauges: For the inspection of product internal threads, qualified working plug gauges that have passed the inspection should be used. The working plug gauges should comply with the relevant provisions in the BS919-2:2007 standard. To reduce disputes during inspection and acceptance, it is recommended that the manufacturer, inspector, and acceptor use the same qualified gauges. If it is difficult to use the same qualified gauges:
    A. The manufacturer should preferably use new or less-worn “go” end plug gauges and “no-go” end plug gauges that are close to the wear limit; the inspector and acceptor should preferably use “go” end plug gauges close to the wear limit and new or less-worn “no-go” end plug gauges.
    B. The “go” (T) thread plug gauge has a full-form thread profile. When used to inspect the effective pitch diameter and major diameter of the product internal thread, it should be able to screw through.
    C. The “no-go” (Z) thread plug gauge has a truncated thread profile. When used to inspect the single pitch diameter of the product internal thread, the screwing engagement should not exceed two pitches.
    D. If the working plug gauge used to judge the product internal thread is qualified and complies with the relevant standard, then the product internal thread is considered qualified.
